CM36V-PDZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

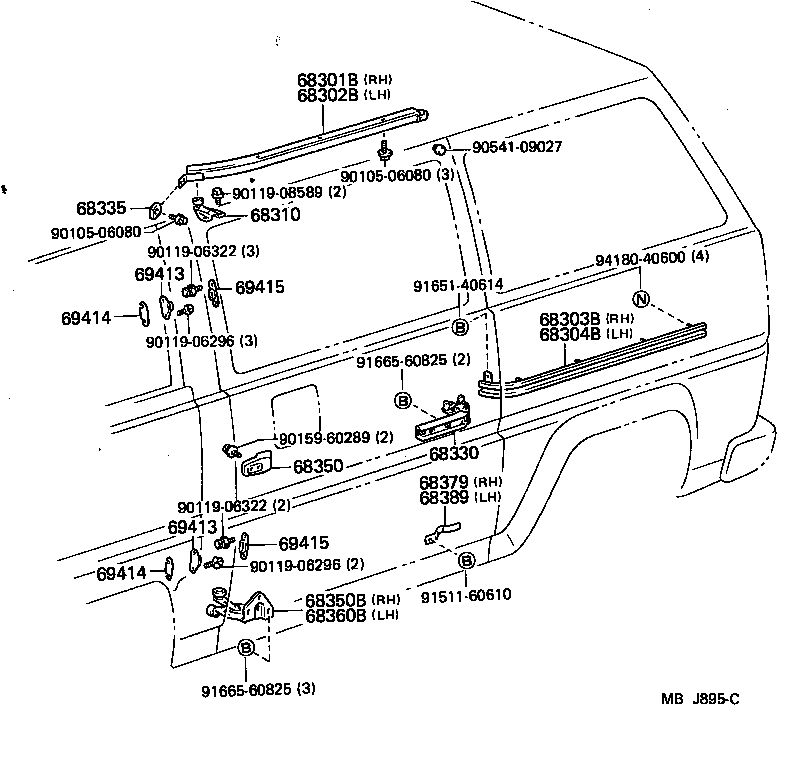

Click highlighted areas on diagram

diagram 68301B 68302B 68303B 68304B 68310 68330 68335 68350 68350B 68360B 68379 68389 69413 69413 69414 69414 69415 69415 9010506080 9010506080 9011906296 9011906296 9011906322 9011906322 9011908589 9015960289 9054109027 9151160610 9165140614 9166560825 9166560825 9418040600
Part # Description Qty Price
68302B - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68309-95701

CM3#,4#,KM3#,YM30,40

 1
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-95702

CM3#,4#,KM3#,YM30,40

 1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68310-95702

CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D

 1
68330 - ROLLER ASSY, SLIDE DOOR, CENTER
68340-95703

CM3#,4#,KM3#,YM30,40

LH

 1
68335 - PAD, SLIDE DOOR UPPER RAIL
68335-95702

CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D

 1
68350 - STOPPER ASSY, SLIDE DOOR OPEN
69418-87003

CM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D

 1
68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH
68360-95703

CM3#,4#,KM3#,YM30,40

 1
68389 - SPRING, SLIDE DOOR CATCH, LH
68389-95700

CM3#,4#,KM3#,YM30,40

 1
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95701

CM35,36,41,KM31,35,36..V4D

W/*EL

 1
69416-95701

CM35,36,41,KM31,35,36..V4D

 2
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95701

CM35,36,41,KM31,35,36..V4D

W/*EL

 1
69416-95701

CM35,36,41,KM31,35,36..V4D

 2
69414 - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700

CM3#,4#,KM3#,YM30,40

 4
69414 - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700

CM3#,4#,KM3#,YM30,40

 4
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87001

CM30,40,KM30,YM40..DLX,SW;CM35,36,41,KM31,35,36..V4D

 2
69415-87001

CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC,XL7

W/*EL

 1
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87001

CM30,40,KM30,YM40..DLX,SW;CM35,36,41,KM31,35,36..V4D

 2
69415-87001

CM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC,XL7

W/*EL

 1
Common parts
90105-06080
90119-06296
90119-06322
90119-08589
90159-60289
90541-09027
91511-60610
91651-40614
91665-60825
94180-40600
