CM36V-PDZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

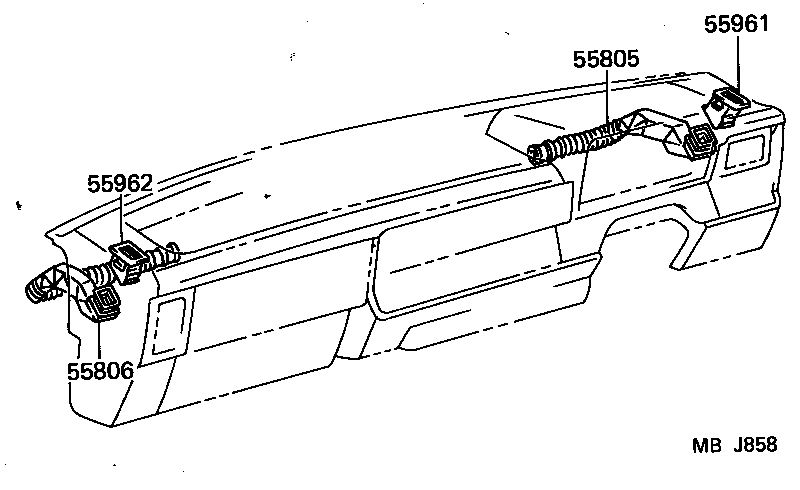

Click highlighted areas on diagram

diagram 55805 55806 55961 55962
Part # Description Qty Price
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55971-95700

CM3#,4#,KM3#,YM30,40

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55972-95700

CM3#,4#,KM3#,YM30,40

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-9570106

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
55961-9570104

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-9570106

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
55962-9570104

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
