CM36V-PDZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )1C,2C#

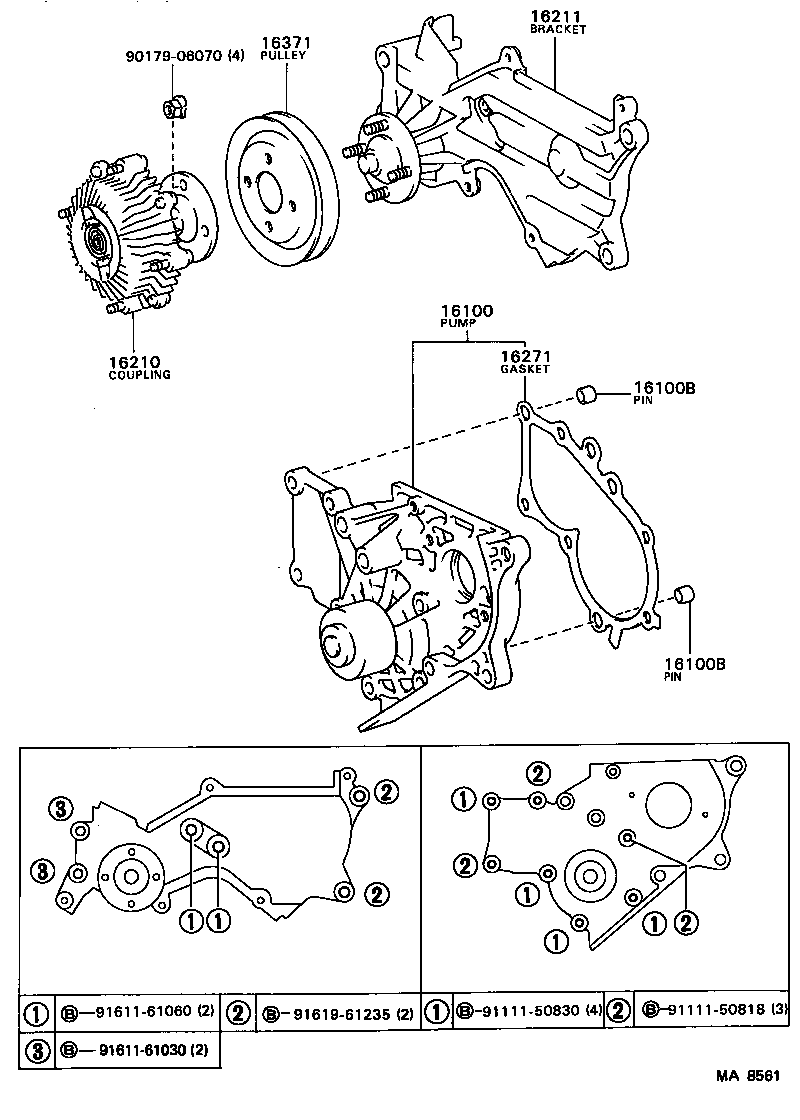

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16210 16211 16271 16371 9017906070 9111150818 9111150830 9161161030 9161161060 9161961235
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69085

1C,2C#..CM3#,4#

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C,2C#..CM3#,4#

 2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C,2C#..CM3#,4#

 2
16210 - COUPLING ASSY, FLUID
16210-64010

1C,2C..CM3#,41

 1
16211 - BRACKET, FLUID COUPLING
16307-64012

1C,2C#..CM3#,4#

 1
16271 - GASKET, WATER PUMP
16271-64010

1C,2C#..CM3#,4#

 1
16371 - PULLEY, FAN
16371-64011

1C,2C#..CM3#,4#

 1
16371-64030

1C,2C#..CM3#,4#

 1
Common parts
90179-06070
91111-50818
91111-50830
91611-61030
91611-61060
91619-61235
