CM36V-PDZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )1C,2C#

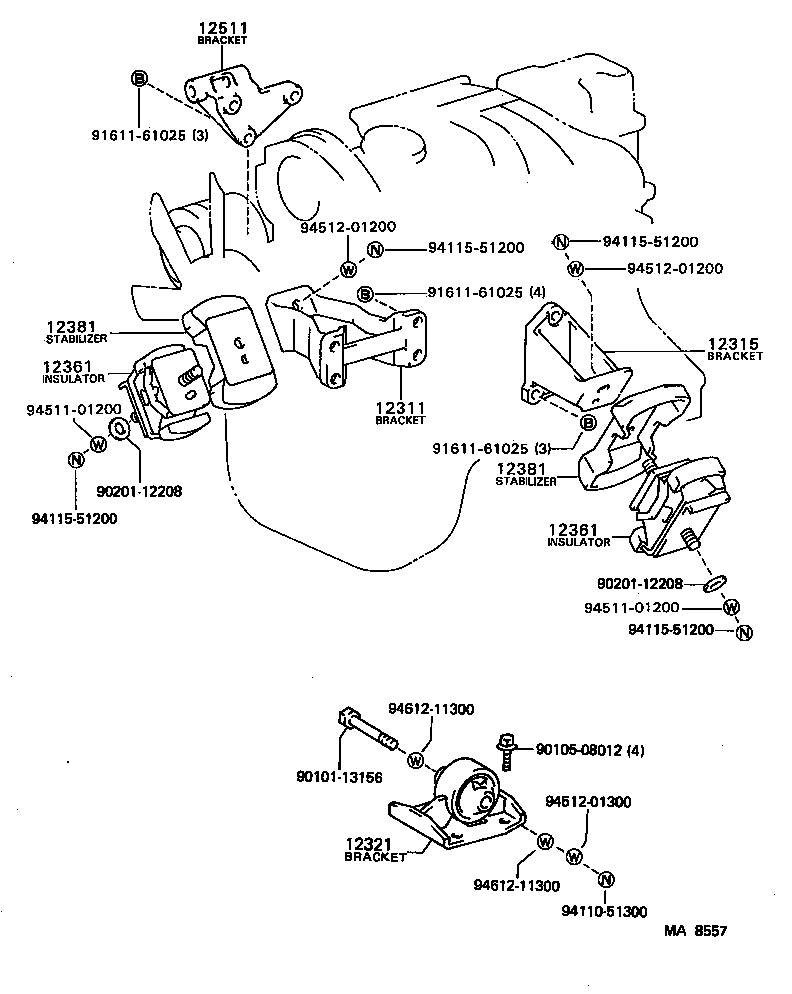

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12381 12381 12511 9010113156 9010508012 9020112208 9020112208 9161161025 9161161025 9161161025 9411051300 9411551200 9411551200 9411551200 9411551200 9451101200 9451101200 9451201200 9451201200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64060

1C,2C#..CM3#,4#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64020

1C,2C#..CM3#,4#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-18020

2C#..CM30,36..4FC

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64022

1C,2C#..CM3#,4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64022

1C,2C#..CM3#,4#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

1C,2C#..CM3#,4#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

1C,2C#..CM3#,4#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-64030

1C,2C#..CM3#,4#

 1
Common parts
90101-13156
90105-08012
90201-12208
91611-61025
94110-51300
94115-51200
94511-01200
94512-01200
94512-01300
94612-11300
