CM36V-PDZ (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
2C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

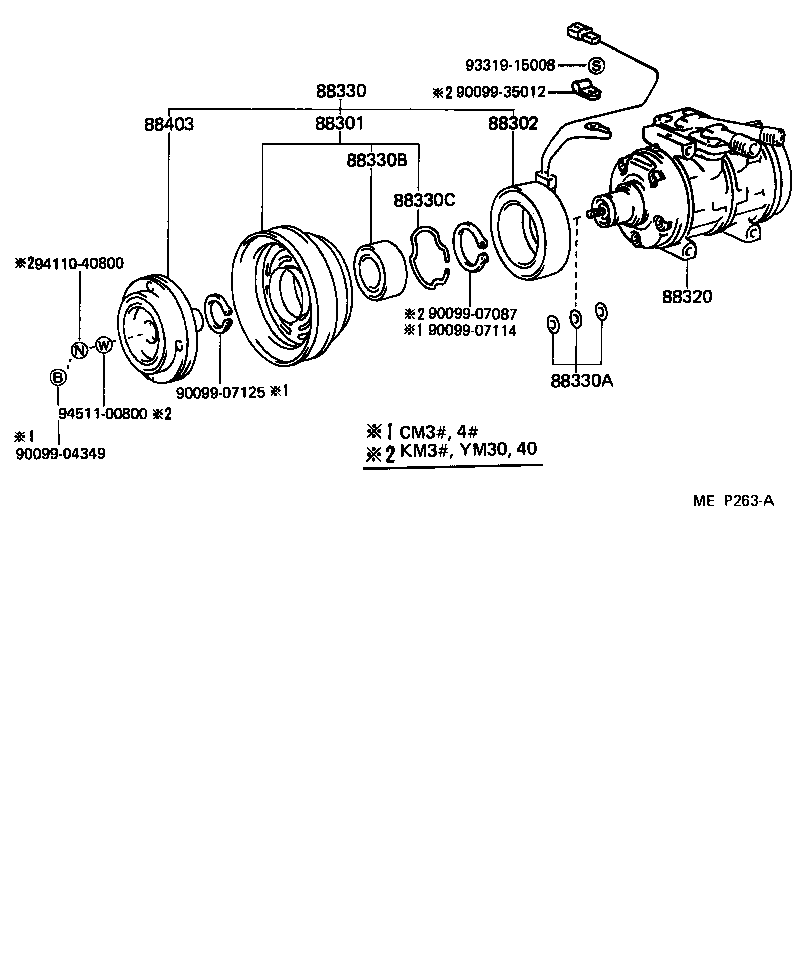

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-28020 |
CM31,36,4#..V4D,V5D,W5D |
1 | ||
| 88412-22030 |
KM31,35,36,YM30 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
KM31,35,36,YM30 |
1 | ||
| 88411-22151 |
CM31,36,41 |
1 | ||
| 88411-60040 |
KM31,35,36,YM30 |
1 | ||
| 88411-30510 |
CM31,36,4#..V4D,V5D,W5D |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-27070 |
KM31,35,36 |
1 | ||
| 88320-27120 |
CM31,36 |
1 | ||
| 88320-27130 |
CM31,36 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-28020 |
CM31,36,41 |
1 | ||
| 88410-22080 |
KM31,35,36,YM30 |
1 | ||
| 88410-28050 |
CM31,36,4#..V4D,V5D,W5D |
1 | ||
| 88410-60140 |
KM31,35,36,YM30 |
1 | ||
| 88410-28060 |
CM31,36,41 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
CM31,36,4#,KM31,35,YM30,40 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KM31,35,36,YM30..DLX,GXL,SUP |
1 | ||
| 90099-10133 |
KM31,36,YM30..(4FC,5F,5H)..(DLX,GXL,SUP) |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
KM31,35,36,YM3# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
KM31,35,36,YM30 |
1 | ||
| 88403-16011 |
CM31,36,4#..V4D,V5D,W5D |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-35012 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

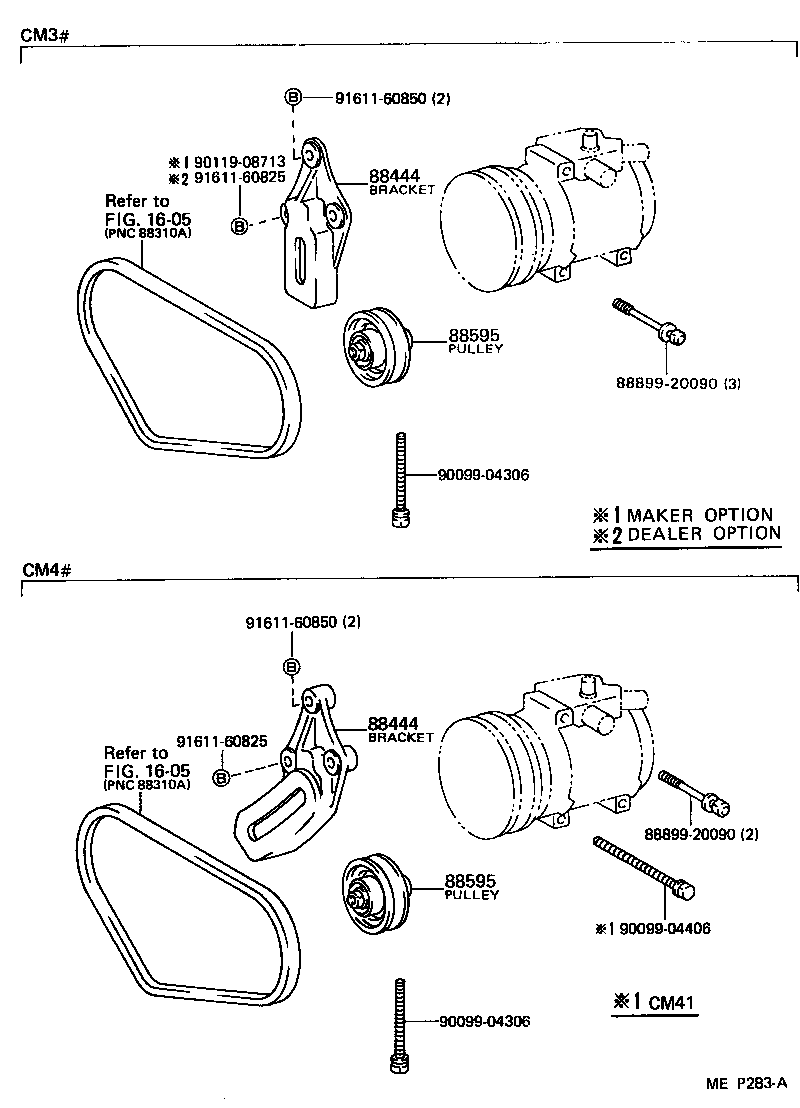

ILLUST NO. 2 OF 2(8808- )CM3#,4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-20200 |
CM31,36 |
1 | ||
| 88444-27020 |
CM31,36 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-20200 |
CM31,36 |
1 | ||
| 88444-27020 |
CM31,36 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-35010 |
CM31,36,KM31,35,36 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-35010 |
CM31,36,KM31,35,36 |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04306 | ||||
| 90099-04406 | ||||
| 90119-08713 | ||||
| 91611-60825 | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 1605 | ||||
