CM36V-PDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

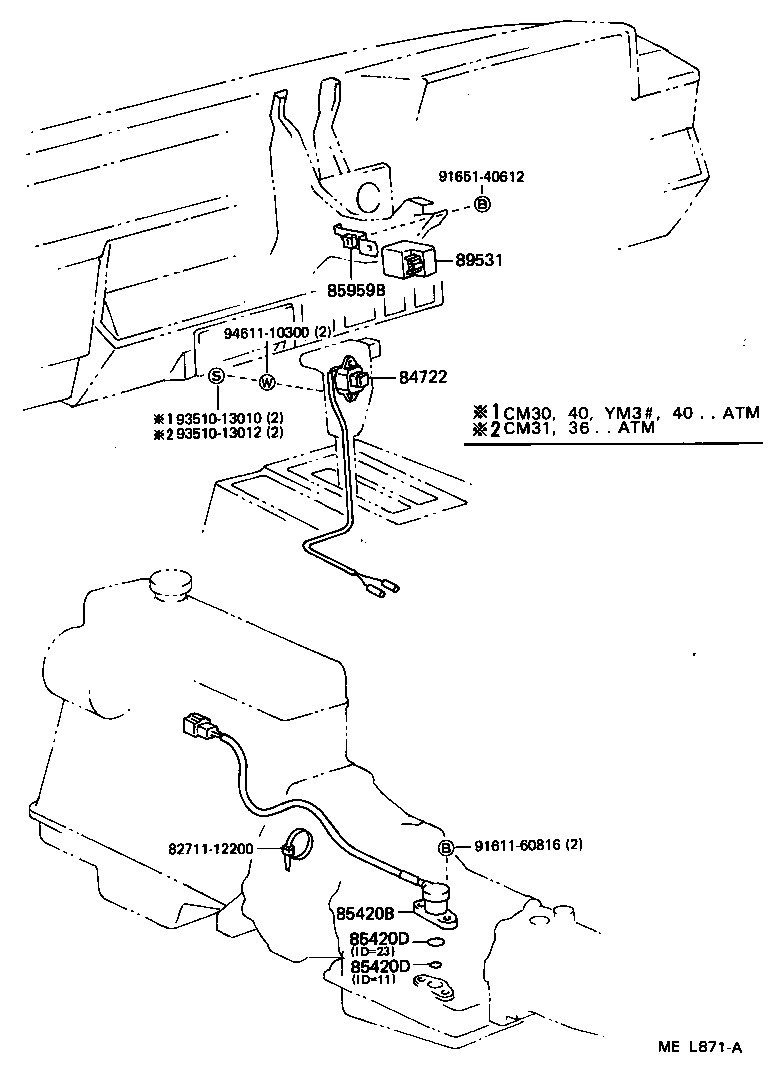

Click highlighted areas on diagram

diagram 8271112200 84722 85420B 85420D 85420D 85959B 89531 9161160816 9165140612 9351013010 9351013012 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-35010

CM36,YM31..4FC..DLX

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-27020

CM3#,40..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-11001

CM3#,40,YM3#,40..4FC

ID=11

 1
90301-23001

CM3#,40,YM3#,40..4FC

ID=23

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-11001

CM3#,40,YM3#,40..4FC

ID=11

 1
90301-23001

CM3#,40,YM3#,40..4FC

ID=23

 1
85959B - HOLDER, RELAY
85959-27030

CM3#,YM3#..4FC

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-14050

CM3#,YM3#..4FC

 1
Common parts
82711-12200
91611-60816
91651-40612
93510-13010
93510-13012
94611-10300
