CM36V-PDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

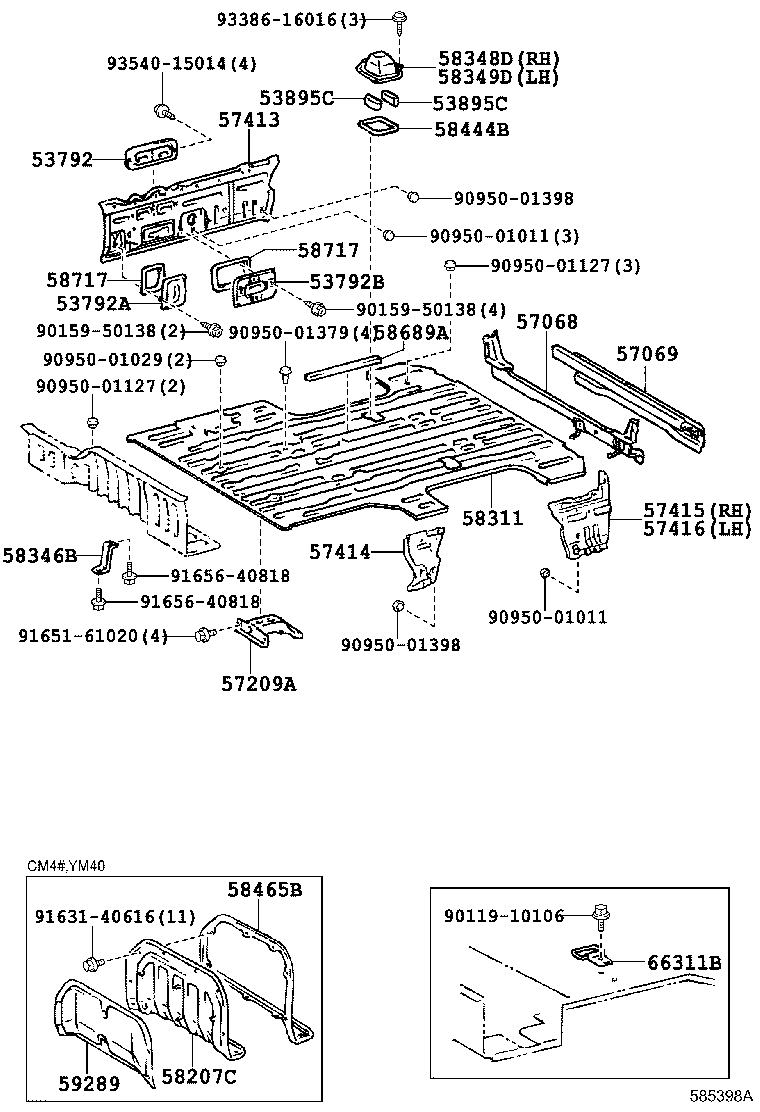

ILLUST NO. 1 OF 3(8808- )V4D,W4D

Click highlighted areas on diagram

diagram 53792 53792A 53792B 53895C 53895C 57068 57069 57209A 57413 57414 57415 57416 58207C 58311 58346B 58348D 58349D 58444B 58465B 58689A 58717 58717 59289 66311B 9011910106 9015950138 9015950138 9095001011 9095001011 9095001029 9095001127 9095001127 9095001379 9095001398 9095001398 9163140616 9165161020 9165640818 9165640818 9338616016 9354015014
Part # Description Qty Price
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-95700

CM31,36,KM31,35,36..V1

 1
57068-95700

CM31,36,KM36..V1

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-95700

CM30..4FC..(FXV,GXL);CM31,36,40,KM3#,YM3#,40;CM30..5F..(LD,SSW,SUC,SW)

 1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57209-95713

CM30,31;CM36..V1

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-95736

CM36,41,KM31,35,36,YM31..V1..V4D..(05S,06S)

 1
57405-95737

CM36,41,KM31,35,36,YM31..V1..V4D..(05S,06S)

ｱﾘ(ｻｲﾄﾞﾄﾘﾑ ｳﾒｺﾐｼｷ ﾘﾔ ﾋ-ﾀ)

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-95714

CM36,KM35,36..V1..(05S,06S);CM30,31,KM30,31,YM31..DLX,LD,SCA,SSW,SUP,SW

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-95705

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-95705

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
58311 - PAN, REAR FLOOR
58311-95G51

CM36,KM31,35,36,YM31..V1..V4D..(05S,06S)

 1
58346B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-95700

KM31,35,36..V1

 1
66311B - HOOK, ROPE
66311-95J00

CM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW

 4
Common parts
90119-10106
90159-50138
90950-01011
90950-01029
90950-01127
90950-01379
90950-01398
91631-40616
91651-61020
91656-40818
93386-16016
93540-15014

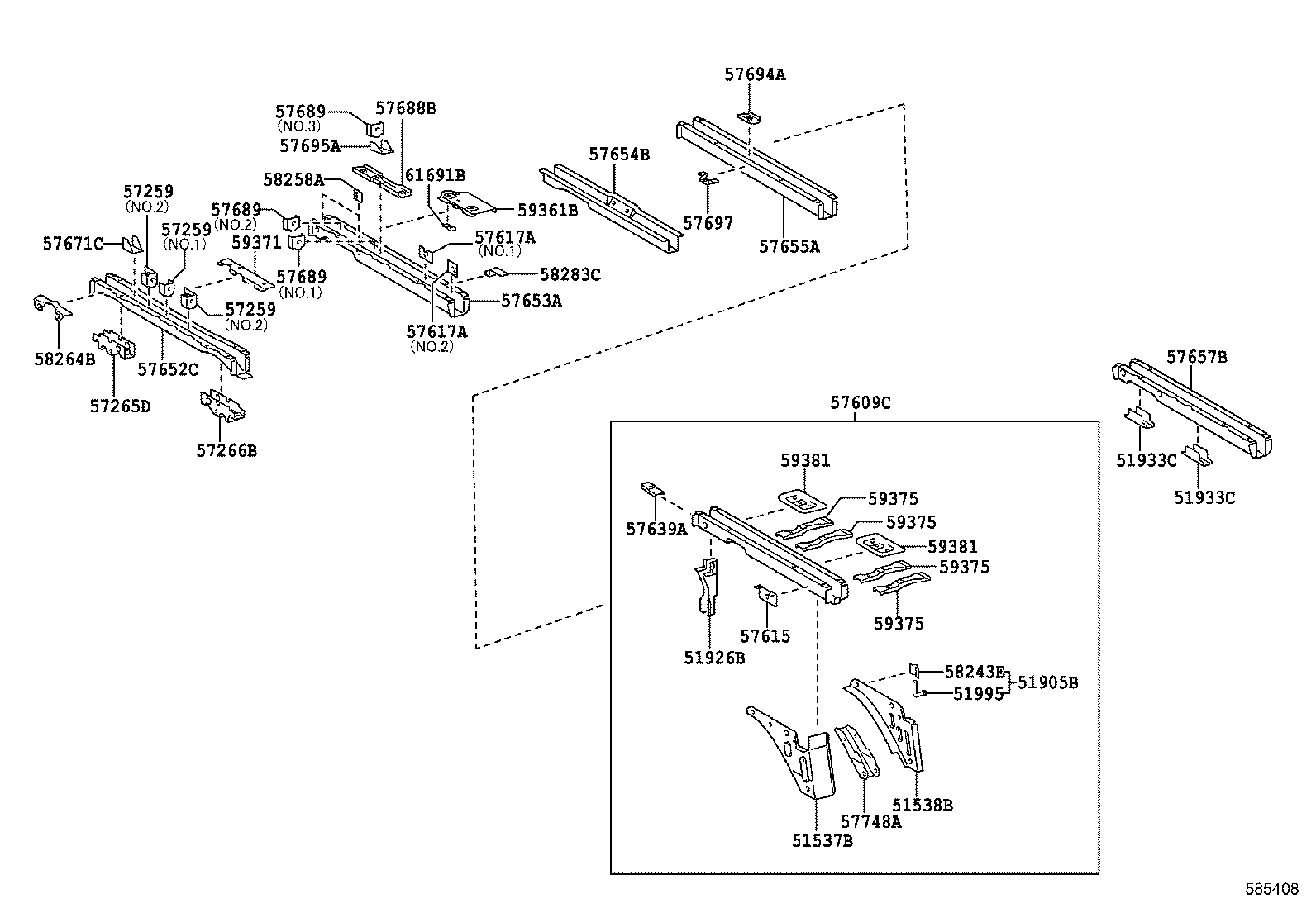

ILLUST NO. 3 OF 3(8808- )CM30,31,4#,KM30,31,YM3#,40

Click highlighted areas on diagram

diagram 51537B 51538B 51905B 51926B 51933C 51933C 51995 57259 57259 57259 57265D 57266B 57609C 57615 57617A 57617A 57639A 57652C 57653A 57654B 57655A 57657B 57671C 57688B 57689 57689 57689 57694A 57695A 57697 57748A 58243E 58258A 58264B 58283C 59361B 59371 59375 59375 59375 59375 59381 59381 61691B
Part # Description Qty Price
51933C - STOPPER, SPARE WHEEL
51933-95700

CM30,4#,KM30,31,YM3#..DLX,FXV,GXL,LD,SSW,SUC,SUP,SW

 2
51933C - STOPPER, SPARE WHEEL
51933-95700

CM30,4#,KM30,31,YM3#..DLX,FXV,GXL,LD,SSW,SUC,SUP,SW

 2
57654B - MEMBER, REAR FLOOR CROSS, NO.3
57654-95704

CM30,31,4#,KM30,31,YM3#,40..DLX,FXV,GXL,LD,SSW,SUC,SUP,SW

 1
57657B - MEMBER, REAR FLOOR CROSS, NO.6
57657-95704

CM30,4#,KM30,31,YM3#..DLX,FXV,GXL,LD,SSW,SUC,SUP,SW

 1

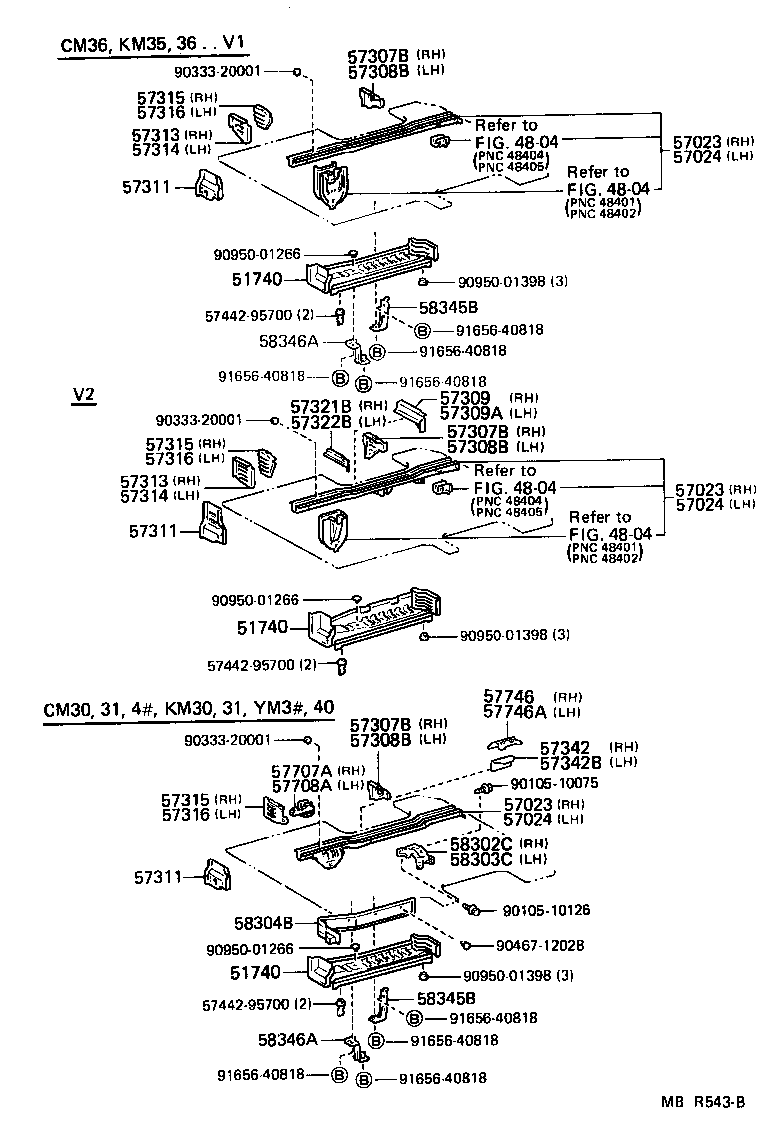

ILLUST NO. 2 OF 3(8808- )V4D,W4D

Click highlighted areas on diagram

diagram 4804 4804 4804 4804 51740 51740 51740 57023 57023 57023 57024 57024 57024 57307B 57307B 57307B 57308B 57308B 57308B 57309 57309A 57311 57311 57311 57313 57313 57314 57314 57315 57315 57315 57316 57316 57316 57321B 57322B 57342 57342B 5744295700 5744295700 5744295700 57707A 57708A 57746 57746A 58302C 58303C 58304B 58345B 58345B 58346A 58346A 9010510075 9010510126 9033320001 9033320001 9033320001 9046712028 9095001266 9095001266 9095001266 9095001398 9095001398 9095001398 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818
Part # Description Qty Price
51740 - STEP ASSY, REAR FLOOR, LH
51740-95702

CM4#,YM40..DLX,SW;CM30,36,KM30,35,36,YM31..(HRF,SRF)..(DLX,SW)

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-95702

CM4#,YM40..DLX,SW;CM30,36,KM30,35,36,YM31..(HRF,SRF)..(DLX,SW)

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-95702

CM4#,YM40..DLX,SW;CM30,36,KM30,35,36,YM31..(HRF,SRF)..(DLX,SW)

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM36,KM35,36..V1

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM36,KM35,36..V1

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM36,KM35,36..V1

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM36,KM35,36..V1

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM36,KM35,36..V1

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM36,KM35,36..V1

 1
57307B - OUTRIGGER SUB-ASSY, NO.4 RH
57307-95704

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
57307B - OUTRIGGER SUB-ASSY, NO.4 RH
57307-95704

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
57307B - OUTRIGGER SUB-ASSY, NO.4 RH
57307-95704

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
57308B - OUTRIGGER SUB-ASSY, NO.4 LH
57308-95704

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
57308B - OUTRIGGER SUB-ASSY, NO.4 LH
57308-95704

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
57308B - OUTRIGGER SUB-ASSY, NO.4 LH
57308-95704

CM4#,YM40..DLX,SSW,SW;CM3#,KM3#,YM31..(HRF,SRF)..(DLX,SSW,SUP,SW)

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM36,KM35,36..V1..V4D;CM30,4#,KM30,31,YM3#,40..V4D,W4D

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM36,KM35,36..V1..V4D;CM30,4#,KM30,31,YM3#,40..V4D,W4D

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM36,KM35,36..V1..V4D;CM30,4#,KM30,31,YM3#,40..V4D,W4D

 1
57313 - OUTRIGGER, NO.2 RH
57315-95703

CM36,KM35,36..V1..V4D

 1
57313 - OUTRIGGER, NO.2 RH
57315-95703

CM36,KM35,36..V1..V4D

 1
57314 - OUTRIGGER, NO.2 LH
57316-95703

CM36,KM35,36..V1

 1
57314 - OUTRIGGER, NO.2 LH
57316-95703

CM36,KM35,36..V1

 1
57315 - OUTRIGGER, NO.3 RH
57303-95702

CM36,KM35,36..V1

 1
57315 - OUTRIGGER, NO.3 RH
57303-95702

CM36,KM35,36..V1

 1
57315 - OUTRIGGER, NO.3 RH
57303-95702

CM36,KM35,36..V1

 1
57316 - OUTRIGGER, NO.3 LH
57304-95700

CM36,KM35,36..V1

 1
57316 - OUTRIGGER, NO.3 LH
57304-95700

CM36,KM35,36..V1

 1
57316 - OUTRIGGER, NO.3 LH
57304-95700

CM36,KM35,36..V1

 1
57342 - PATCH, OUTRIGGER, NO.2
57342-95700

CM30,31,4#,KM30,31,YM3#,40

 1
57342B - PATCH, OUTRIGGER, NO.2 LH
57342-95700

CM30,31,4#,KM30,31,YM3#,40

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM31,35,36..V1

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM31,35,36..V1

 1
Common parts
57442-95700
90105-10075
90105-10126
90333-20001
90467-12028
90950-01266
90950-01398
91656-40818
Linked diagrams
