CM36V-PDF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

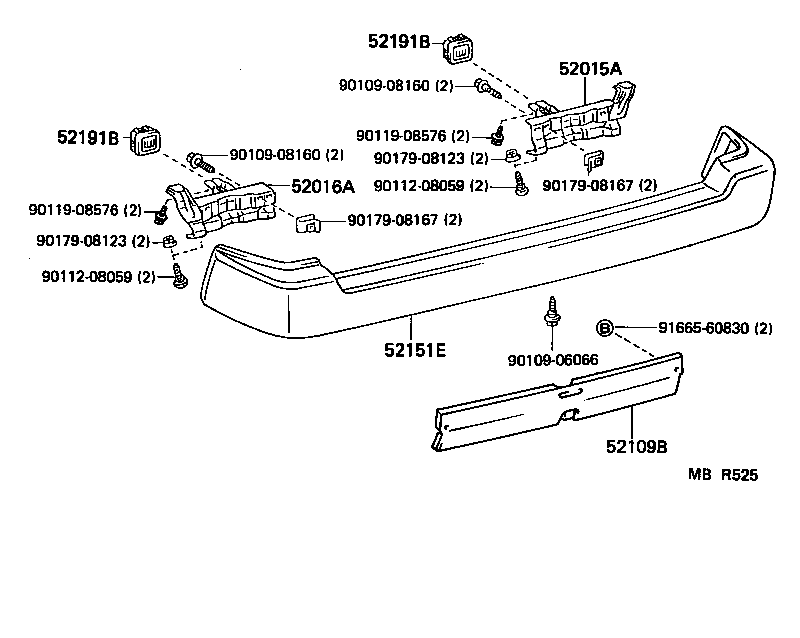

Click highlighted areas on diagram

diagram 52015A 52016A 52109B 52151E 52191B 52191B 9010906066 9010908160 9010908160 9011208059 9011208059 9011908576 9011908576 9017908123 9017908123 9017908167 9017908167 9166560830
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-95700

CM30..4FC..GXL;CM40,KM30,YM30,40;CM30..5F..(LD,SSW,SUC,SW);CM31,36,KM31,35,36,YM31..V1

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-95700

CM30..4FC..GXL;CM40,KM30,YM30,40;CM30..5F..(LD,SSW,SUC,SW);CM31,36,KM31,35,36,YM31..V1

 1
52151E - BAR, REAR BUMPER
52151-95708

CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95701

CM3#,4#,KM3#,YM3#,40

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95701

CM3#,4#,KM3#,YM3#,40

 2
Common parts
90109-06066
90109-08160
90112-08059
90119-08576
90179-08123
90179-08167
91665-60830
