CM36V-PDF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2C#

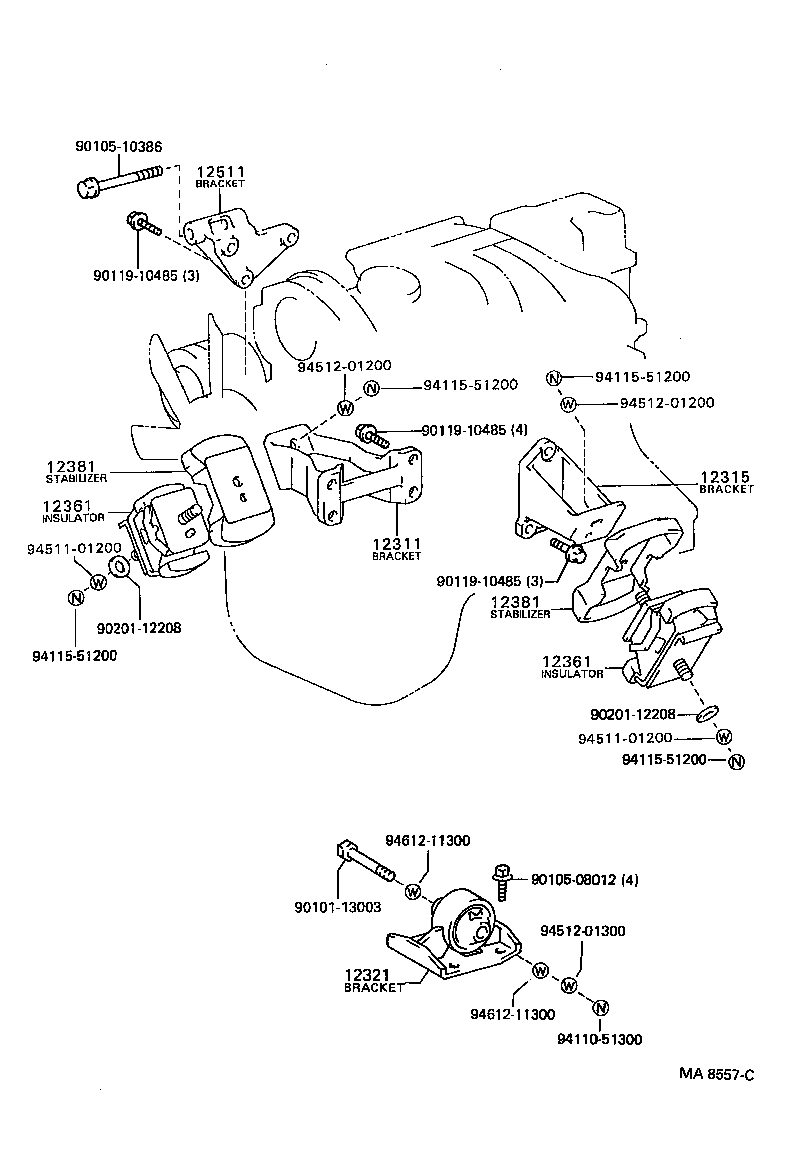

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12381 12381 12511 9010113003 9010508012 9010510386 9011910485 9011910485 9011910485 9020112208 9020112208 9411051300 9411551200 9411551200 9411551200 9411551200 9451101200 9451101200 9451201200 9451201200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64060

2C#..CM3#,4#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64020

2C#..CM3#,4#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-18020

2C#..CM3#..4FC

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64022

2C#..CM3#,4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64022

2C#..CM3#,4#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

2C#..CM3#,4#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

2C#..CM3#,4#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-64030

2C#..CM3#,4#

 1
Common parts
90101-13003
90105-08012
90105-10386
90119-10485
90201-12208
94110-51300
94115-51200
94511-01200
94512-01200
94512-01300
94612-11300
