CM36V-PD (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

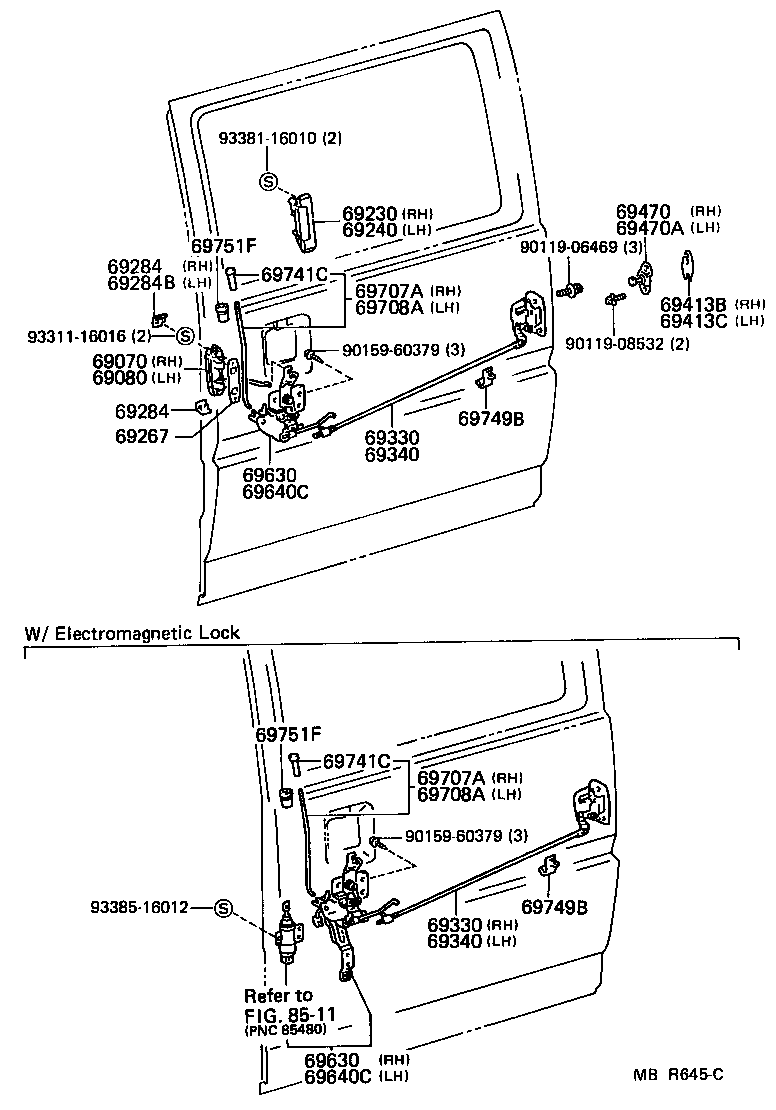

Click highlighted areas on diagram

diagram 69070 69080 69230 69240 69267 69284 69284 69284B 69330 69330 69340 69340 69413B 69413C 69470 69470A 69630 69630 69640C 69640C 69707A 69707A 69708A 69708A 69741C 69741C 69749B 69749B 69751F 69751F 8511 9011906469 9011908532 9015960379 9015960379 9331116016 9338116010 9338516012
Part # Description Qty Price
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-9570003

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-95J00

CM3#,4#,KM3#,YM3#,40

 1
69267 - SEAL, SLIDE DOOR INSIDE HANDLE, NO.1
69267-87001

CM30,36,4#,KM3#,YM3#,40..V4D,W4D,W5D

 1
69284B - PLUG, SLIDE DOOR INSIDE HANDLE, LH
69284-8700123

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 2
69340 - LOCK ASSY, REAR DOOR, LH
69340-95702

CM3#,4#,KM3#,YM3#,40

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-95702

CM3#,4#,KM3#,YM3#,40

 1
69413C - SHIM, DOOR LOCK STRIKER, LH
69413-87002

CM3#,4#,KM3#,YM3#,40

 1
69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69470-95701

CM3#,4#,KM3#,YM3#,40

 1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-95707

CM30,36,4#,KM30,35,36,YM31,40..DLX,SW

 1
69640-95706

CM30,36,4#,KM30,35,36,YM31,40..DLX,SW

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ)

 1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-95707

CM30,36,4#,KM30,35,36,YM31,40..DLX,SW

 1
69640-95706

CM30,36,4#,KM30,35,36,YM31,40..DLX,SW

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ)

 1
69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
69708-9570003

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
69708-9570003

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-9570303

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-9570303

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-95700

CM3#,4#,KM3#,YM3#,40

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-95700

CM3#,4#,KM3#,YM3#,40

 1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-9570103

CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-9570103

CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
Common parts
90119-06469
90119-08532
90159-60379
93311-16016
93381-16010
93385-16012
Linked diagrams
8511
