CM36V-PD (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

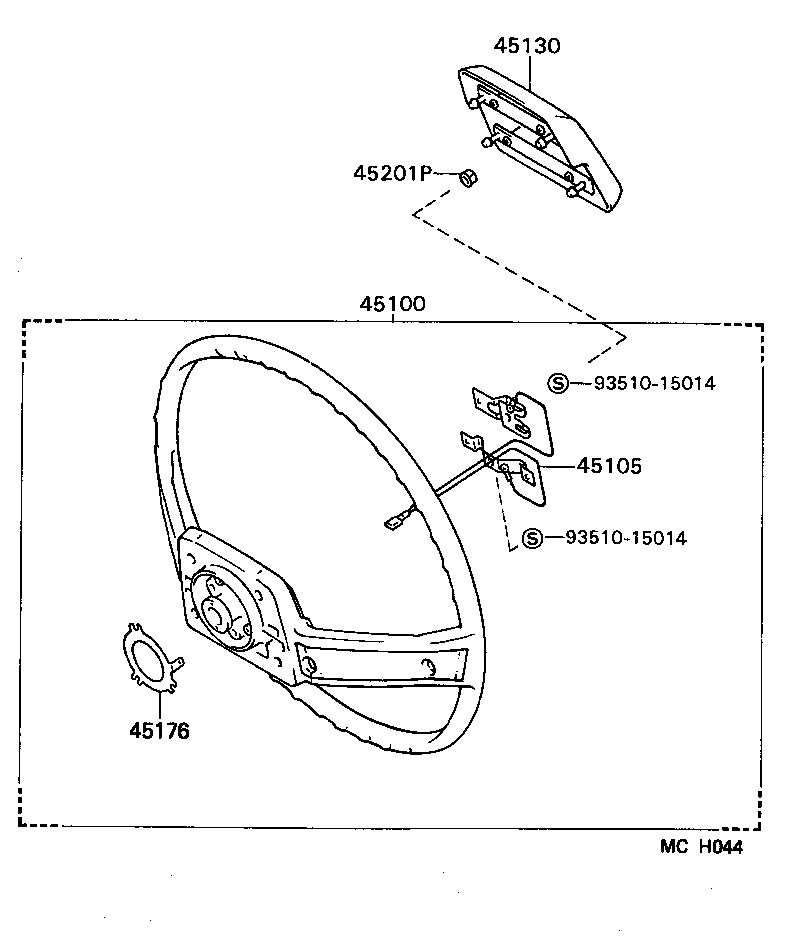

Click highlighted areas on diagram

diagram 45100 45105 45130 45176 45201P 9351015014 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1027003

CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10010

CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW

 1
45130 - BUTTON ASSY, HORN
45130-2702003

CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW

GRAY,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-35020

CM30,36,4#,KM30,35,36,YM3#,40..DLX,FXV,LD,SW

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CM3#,4#,KM3#,YM3#,40

 1
Common parts
93510-15014

(8808- )

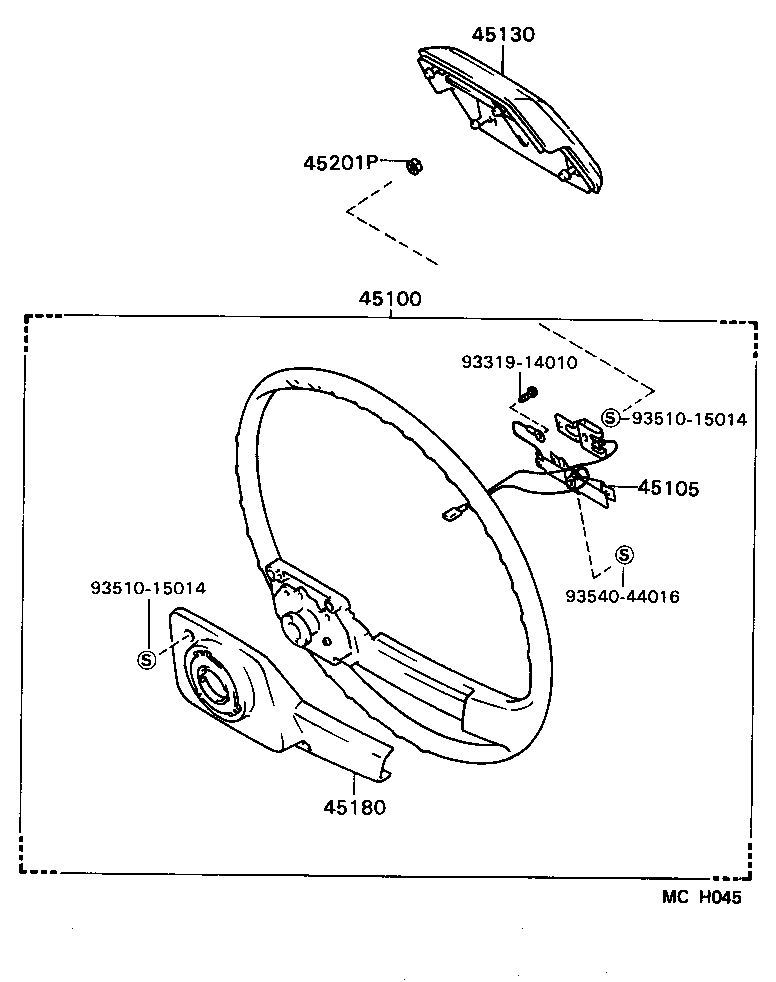

Click highlighted areas on diagram

URETHANE

diagram 45100 45105 45130 45180 45201P 9331914010 9351015014 9351015014 9354044016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1027003

CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10010

CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW

 1
45130 - BUTTON ASSY, HORN
45130-2702003

CM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CM3#,4#,KM3#,YM3#,40

 1
Common parts
93319-14010
93510-15014
93540-44016
