CM36V-MDZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

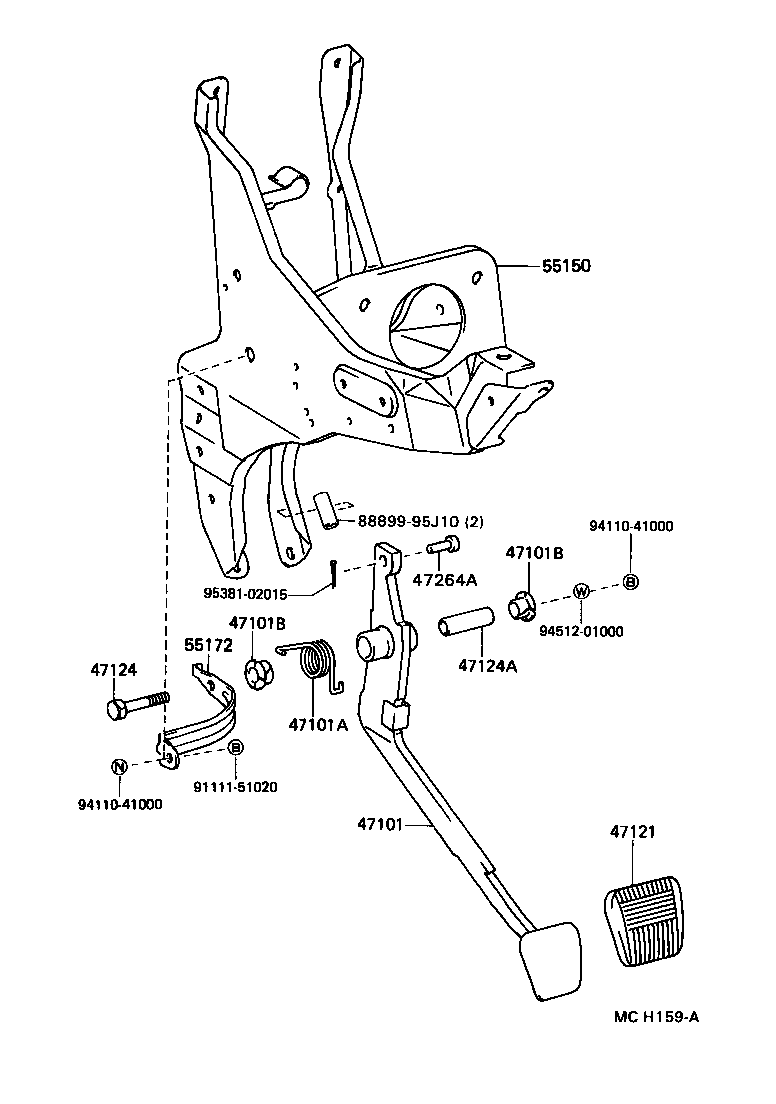

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47264A 55150 55172 8889995J10 9111151020 9411041000 9411041000 9451201000 9538102015
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-27060

CM3#,4#,KM3#,YM3#,40

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35030

CM3#,4#,KM3#,YM3#,40

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CM3#,4#,KM3#,YM3#,40

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CM3#,4#,KM3#,YM3#,40

 2
47121 - PAD, BRAKE PEDAL
31321-14020

CM3#,4#,KM3#,YM3#,40

 1
47124 - SHAFT, BRAKE PEDAL
91121-51060

CM3#,4#,KM3#,YM3#,40

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

CM3#,4#,KM3#,YM3#,40

 1
47264A - PIN(FOR PUSH ROD)
90240-08070

CM3#,4#,KM3#,YM3#,40

 1
55150 - BRACKET ASSY, PEDAL
55150-95700

CM3#,4#,KM3#,YM3#,40

 1
55172 - SUPPORT, BOOSTER STAY
55172-95703

CM3#,4#,KM3#,YM3#,40

 1
Common parts
88899-95J10
91111-51020
94110-41000
94512-01000
95381-02015
