CM36V-MDZE (1988)
Toyota Liteace Van,Wagon

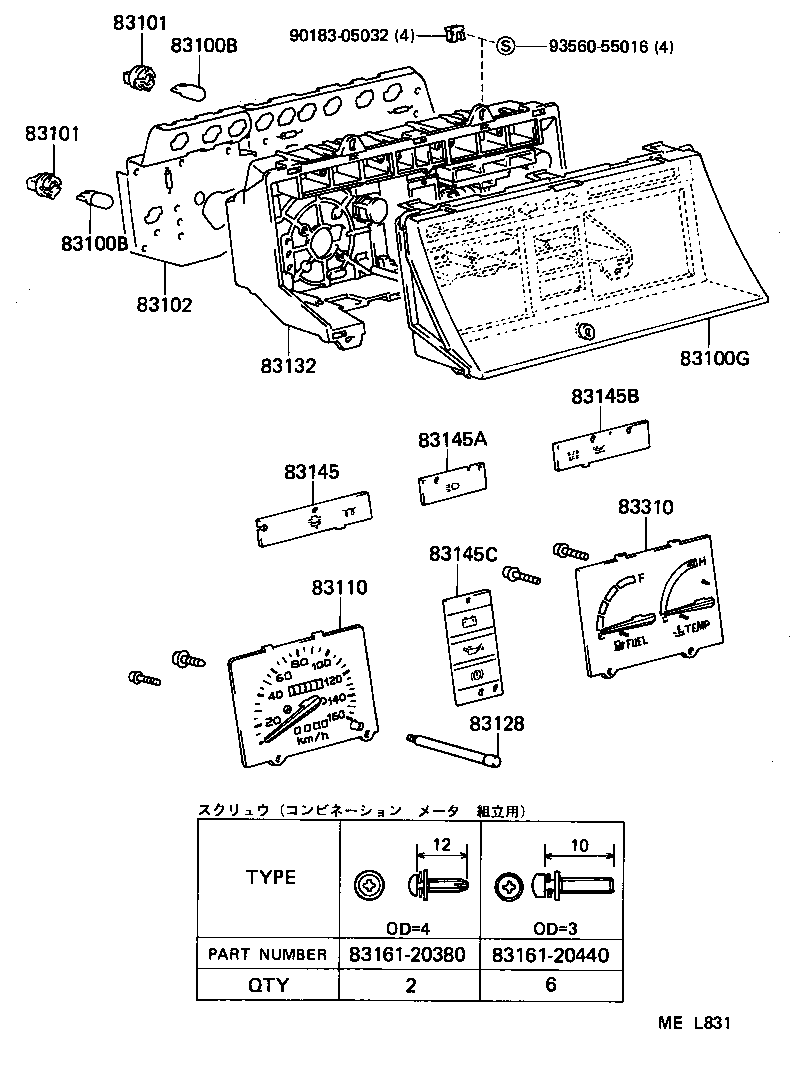

ILLUST NO. 1 OF 3(8808- )DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KM31,35,36 12V 3.4W |
11 | ||
| 99132-12034 |
YM31..4FC;CM3#,YM40..5F..(DLX,SSW,SUP,SW) 12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KM31,35,36 12V 3.4W |
11 | ||
| 99132-12034 |
YM31..4FC;CM3#,YM40..5F..(DLX,SSW,SUP,SW) 12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-95706 |
CM36,41,KM35,36,YM31..DLX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KM31,35,36 12V 3.4W |
11 | ||
| 83101-20040 |
YM31..4FC;CM3#,YM40..5F..(DLX,SSW,SUP,SW) 12V 3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KM31,35,36 12V 3.4W |
11 | ||
| 83101-20040 |
YM31..4FC;CM3#,YM40..5F..(DLX,SSW,SUP,SW) 12V 3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95714 |
CM36,41,KM36,YM31..(3FC,4FC,5F,5H)..DLX |
1 | ||
| 83247-95712 |
KM35,36..DLX |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95738 |
CM36,41,KM35,36,YM31..DLX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J02 |
CM36,41,KM35,36,YM31..DLX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95721 |
KM35,36..DLX |
1 | ||
| 83145-95761 |
KM35,36..DLX |
1 | ||
| 83145-95G21 |
CM36,41 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95722 |
CM36,41,KM35,36,YM31..DLX |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95G19 |
YM31..DLX;CM36,KM35,36..(3FC,4H,5F,5H)..DLX |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95G20 |
CM36,41,KM35,36,YM31..DLX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95G00 |
CM36,41,KM35,36,YM31..DLX |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90183-05032 | ||||
| 93560-55016 | ||||

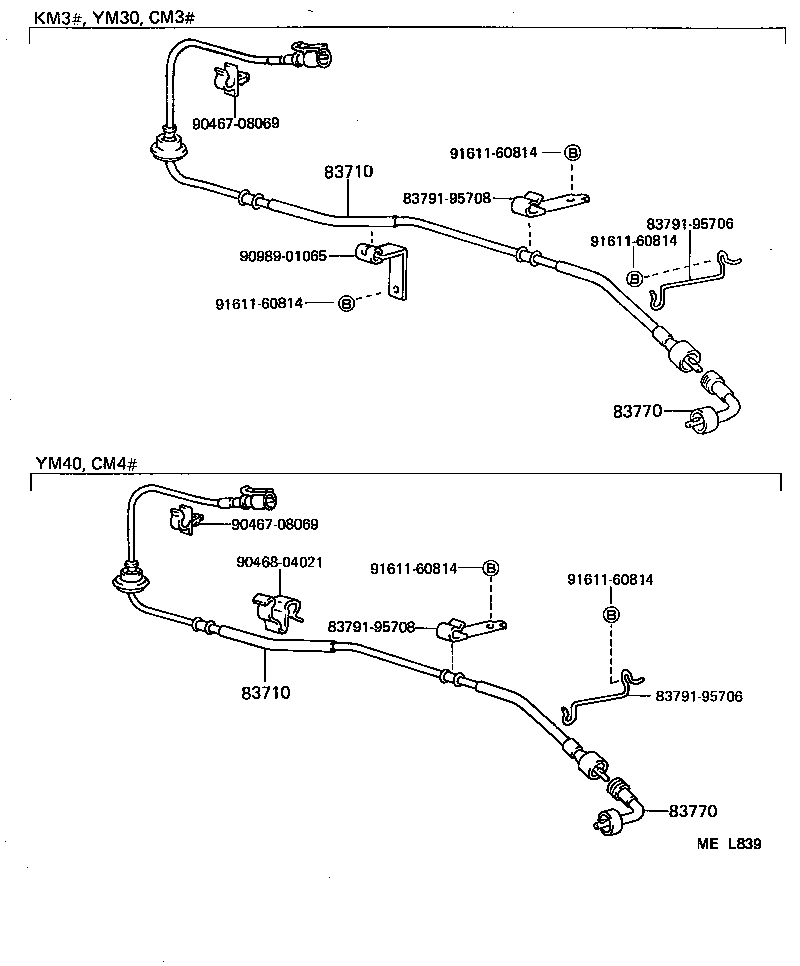

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95716 |
KM30,31,36..5F,5H |
1 | ||
| 83710-95719 |
CM3#,YM3# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95716 |
KM30,31,36..5F,5H |
1 | ||
| 83710-95719 |
CM3#,YM3# |
1 | ||
| Common parts | ||||
| 83791-95706 | ||||
| 83791-95708 | ||||
| 90467-08069 | ||||
| 90468-04021 | ||||
| 90989-01065 | ||||
| 91611-60814 | ||||

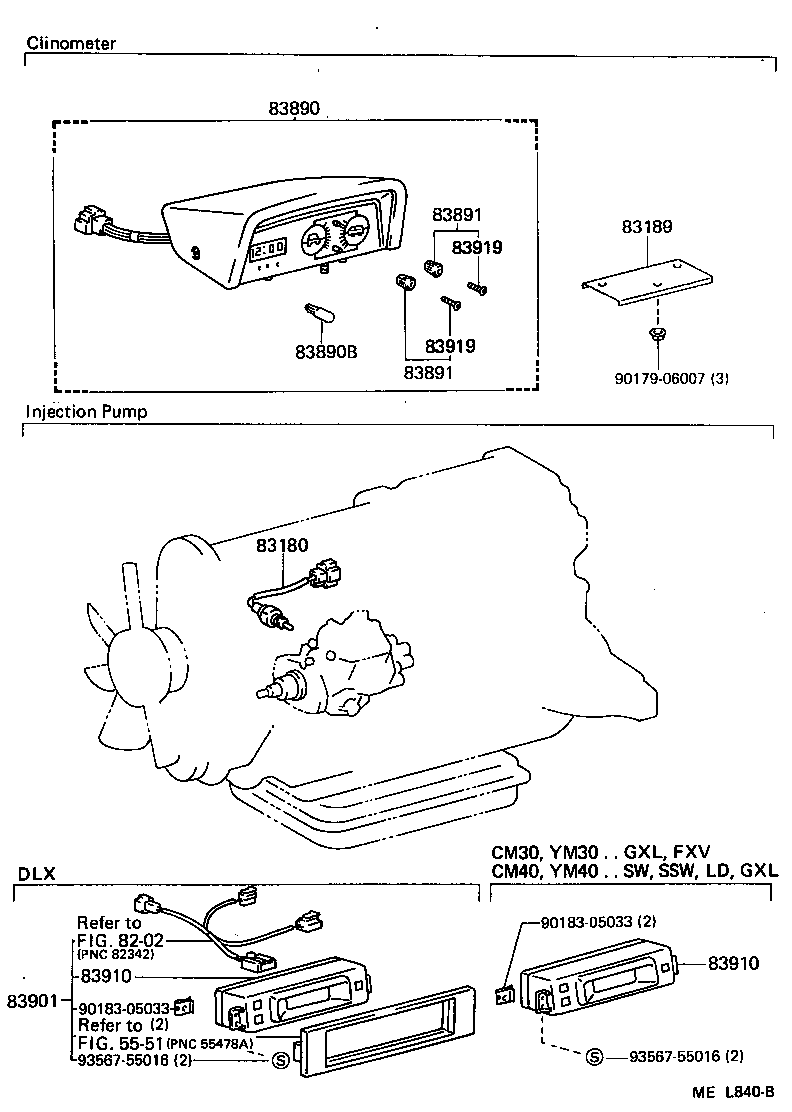

ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83901 - CLOCK AND SETTING PARTS SET | ||||
| 83901-9570413 |
CM36,41,KM35,36,YM31..DLX GRAY,TRIM1# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95705 |
CM40,YM40..GXL,LD,SSW,SW;CM30,36,41,KM35,36,YM3#..DLX,FXV,GXL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95705 |
CM40,YM40..GXL,LD,SSW,SW;CM30,36,41,KM35,36,YM3#..DLX,FXV,GXL |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 90183-05033 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8202 | ||||
