CM36V-MDZE (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM36,KM35,36..VSG ; (8808- )CM30,31,4#,KM30,31,YM31,40..DLX,LD,SSW,SU

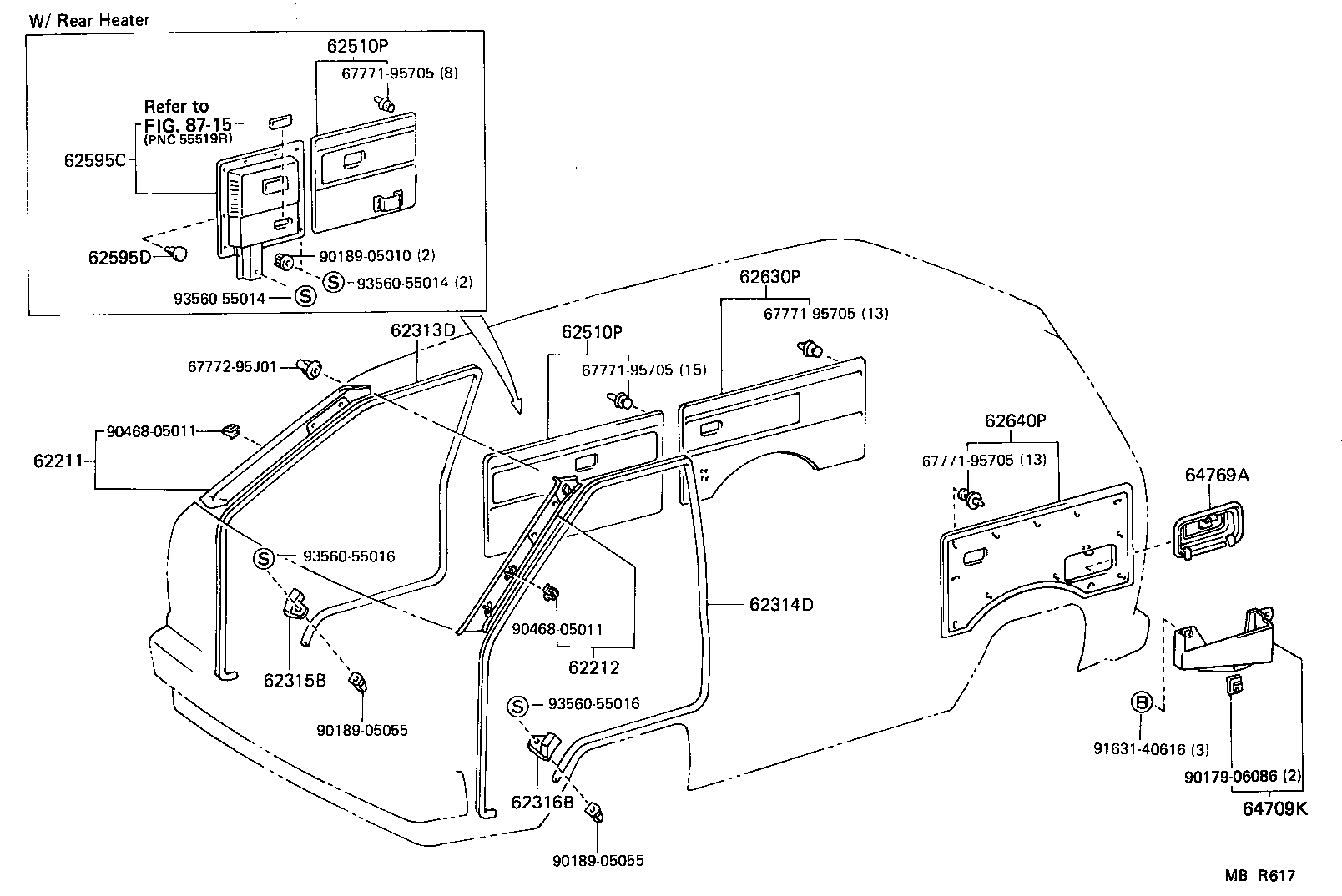

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62315B 62316B 62510P 62510P 62595C 62595D 62630P 62640P 64709K 64769A 6777195705 6777195705 6777195705 6777195705 6777295J01 8715 9017906086 9018905010 9018905055 9018905055 9046805011 9046805011 9163140616 9356055014 9356055014 9356055016 9356055016
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-9570603

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-9570703

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9571013

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9571013

CM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

GRAY,TRIM1#

 1
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62317-9570013

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62318-9570013

CM3#,4#,KM3#,YM3#,40

GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-9571303

CM36,41,KM35,36..V4D..VSG..(02S,03S)

GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-9571303

CM36,41,KM35,36..V4D..VSG..(02S,03S)

GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-9571303

CM36,41,KM31,35,36,YM31..V1..V4D..VSG

GRAY,TRIM1#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-9571503

CM36,41,KM35,36..V1..VSG..(02S,03S)

GRAY,TRIM1#

 1
Common parts
67771-95705
67772-95J01
90179-06086
90189-05010
90189-05055
90468-05011
91631-40616
93560-55014
93560-55016
Linked diagrams
8715
