CM36V-MDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

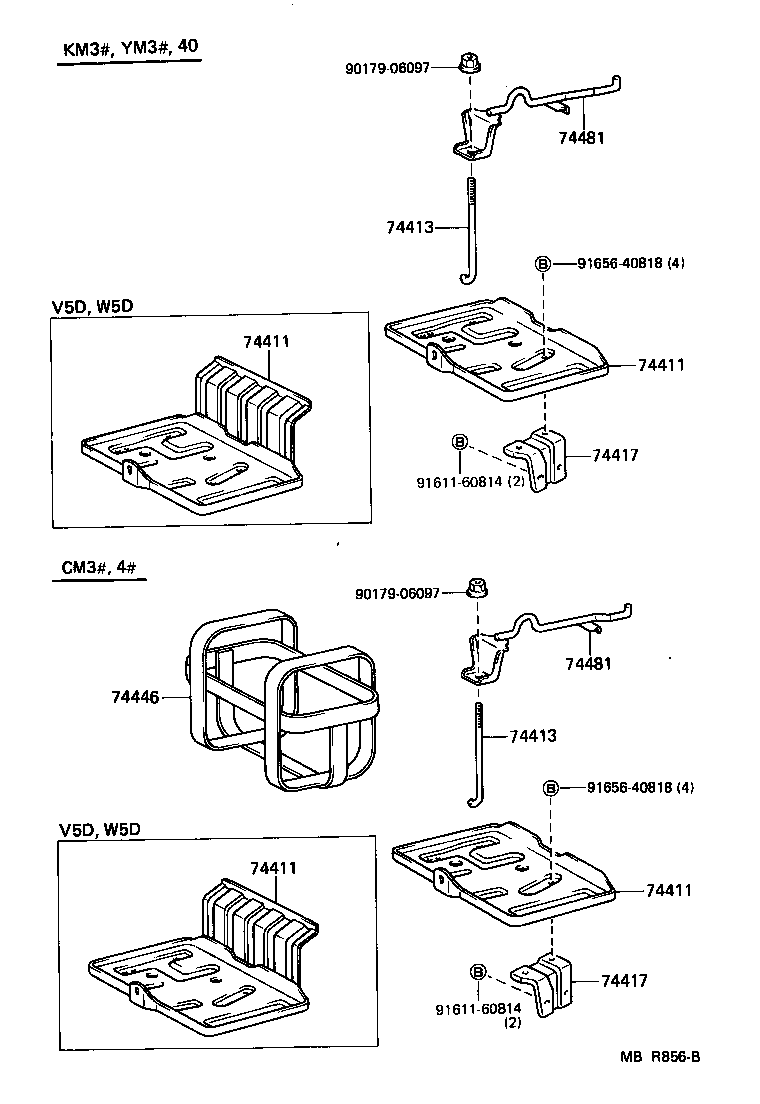

Click highlighted areas on diagram

diagram 74411 74411 74411 74411 74413 74413 74417 74417 74446 74481 74481 9017906097 9017906097 9161160814 9161160814 9165640818 9165640818
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-95710

CM30,36,41,KM3#,YM3#,40..(V4D,W4D)..(CBR,DSL)

 1
74410-95712

CM36..V4D..VSG;CM41..V4D..05S;CM30,40..W4D..(FXV,GXL,LD,SUC,SW)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74411 - CARRIER, BATTERY
74411-95710

CM30,36,41,KM3#,YM3#,40..(V4D,W4D)..(CBR,DSL)

 1
74410-95712

CM36..V4D..VSG;CM41..V4D..05S;CM30,40..W4D..(FXV,GXL,LD,SUC,SW)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74411 - CARRIER, BATTERY
74411-95710

CM30,36,41,KM3#,YM3#,40..(V4D,W4D)..(CBR,DSL)

 1
74410-95712

CM36..V4D..VSG;CM41..V4D..05S;CM30,40..W4D..(FXV,GXL,LD,SUC,SW)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74411 - CARRIER, BATTERY
74411-95710

CM30,36,41,KM3#,YM3#,40..(V4D,W4D)..(CBR,DSL)

 1
74410-95712

CM36..V4D..VSG;CM41..V4D..05S;CM30,40..W4D..(FXV,GXL,LD,SUC,SW)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74413 - BOLT, BATTERY CLAMP
74451-95J00

CM3#,4#,KM3#,YM3#,40

 1
74413 - BOLT, BATTERY CLAMP
74451-95J00

CM3#,4#,KM3#,YM3#,40

 1
74417 - BRACKET, BATTERY CARRIER
74417-95704

CM3#,4#,KM3#,YM3#,40

 1
74417 - BRACKET, BATTERY CARRIER
74417-95704

CM3#,4#,KM3#,YM3#,40

 1
74446 - BAND, BATTERY
74446-95702

CM3#,4#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95704

CM3#,4#

 1
74404-95705

CM36..VSG;CM40..4FC;CM41..05S;CM41..V5D..02S;CM40..W4D..5F..(FXV,GXL,LD,SW);CM30,31..(V5D,W4D)..(FXV,GXL,LD,SUC,SUP,SW)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95704

CM3#,4#

 1
74404-95705

CM36..VSG;CM40..4FC;CM41..05S;CM41..V5D..02S;CM40..W4D..5F..(FXV,GXL,LD,SW);CM30,31..(V5D,W4D)..(FXV,GXL,LD,SUC,SUP,SW)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
Common parts
90179-06097
91611-60814
91656-40818
