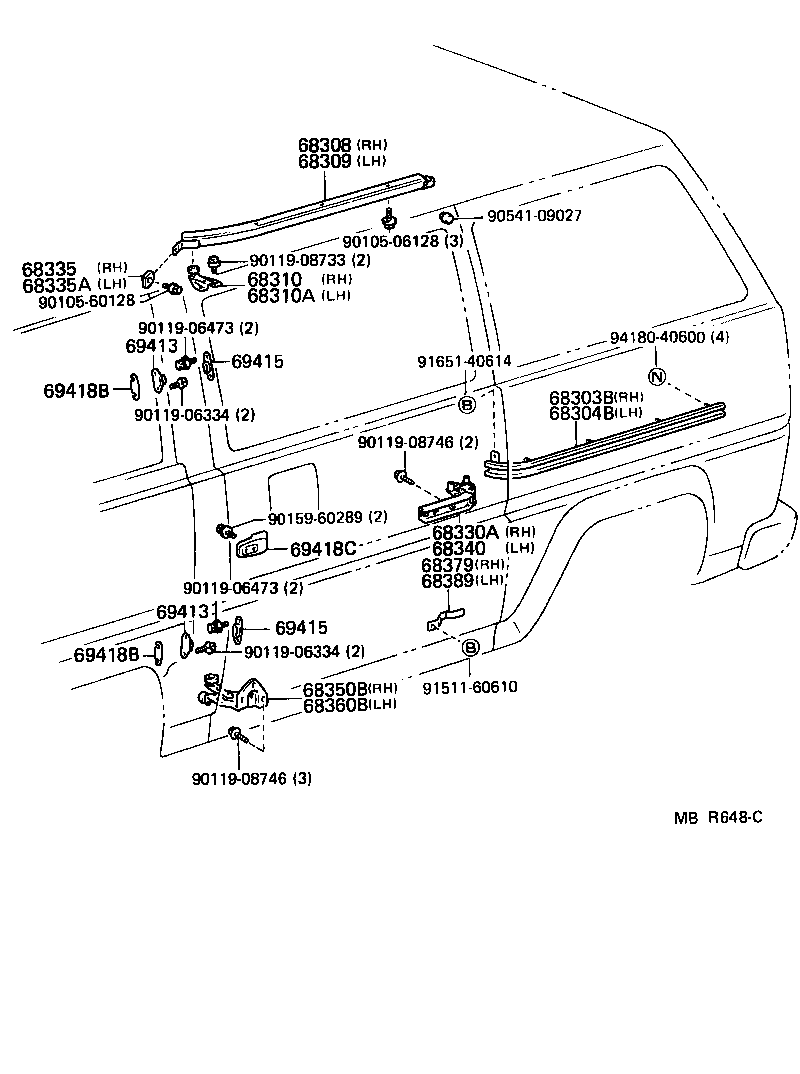

CM36V-MDZ (1988)
Toyota Liteace Van,Wagon
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68309-95701 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 68310A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68310-95703 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 68335A - PAD, SLIDE DOOR UPPER RAIL, LH | ||||
| 68335-95702 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 68340 - ROLLER ASSY, SLIDE, LH | ||||
| 68340-95704 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-95704 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 68389 - SPRING, SLIDE DOOR CATCH, LH | ||||
| 68389-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69416-95701 |
CM31,KM31,36..V5D..05S;CM36,41,KM35,36..V4D..DLX |
2 | ||
| 69416-95701 |
KM31,36..V4D..05S |
1 | ||
| 69416-95701 |
CM36,41,KM35,36..V4D..DLX ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69416-95702 |
CM31,KM31,36,YM31..V5D..SUP;CM36,41,KM35,36,YM31..V4D..DLX |
2 | ||
| 69416-95702 |
CM36,41,KM35,36,YM31..V4D..DLX ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69416-95701 |
CM31,KM31,36..V5D..05S;CM36,41,KM35,36..V4D..DLX |
2 | ||
| 69416-95701 |
KM31,36..V4D..05S |
1 | ||
| 69416-95701 |
CM36,41,KM35,36..V4D..DLX ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69416-95702 |
CM31,KM31,36,YM31..V5D..SUP;CM36,41,KM35,36,YM31..V4D..DLX |
2 | ||
| 69416-95702 |
CM36,41,KM35,36,YM31..V4D..DLX ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-87001 |
CM36,41,KM35,36..V4D..DLX;CM30,31,40,KM30,31,36,YM40..(V5D,W4D)..(SUP,SW) |
2 | ||
| 69415-87001 |
CM30,36,4#,KM30,35,36,YM40..(V4D,W4D)..(DLX,SW) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69415-87003 |
CM30,36,4#,KM30,35,36,YM31,40..(V4D,W4D)..(DLX,SW) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69415-87003 |
CM36,41,KM35,36,YM31..V4D..DLX;CM30,31,40,KM30,31,36,YM31,40..(V5D,W4D)..(SUP,SW) |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-87001 |
CM36,41,KM35,36..V4D..DLX;CM30,31,40,KM30,31,36,YM40..(V5D,W4D)..(SUP,SW) |
2 | ||
| 69415-87001 |
CM30,36,4#,KM30,35,36,YM40..(V4D,W4D)..(DLX,SW) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69415-87003 |
CM30,36,4#,KM30,35,36,YM31,40..(V4D,W4D)..(DLX,SW) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69415-87003 |
CM36,41,KM35,36,YM31..V4D..DLX;CM30,31,40,KM30,31,36,YM31,40..(V5D,W4D)..(SUP,SW) |
2 | ||
| 69418B - SHIM, SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 69418B - SHIM, SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 69418C - STOPPER, BACK DOOR MALE, LOWER | ||||
| 69418-87003 |
CM36,4#,KM3#,YM3#,40..V4D,W4D;CM30..W4D..(FXV,GXL,LD,SUC,SW) |
1 | ||
| Common parts | ||||
| 90105-06128 | ||||
| 90105-60128 | ||||
| 90119-06334 | ||||
| 90119-06473 | ||||
| 90119-08733 | ||||
| 90119-08746 | ||||
| 90159-60289 | ||||
| 90541-09027 | ||||
| 91511-60610 | ||||
| 91651-40614 | ||||
| 94180-40600 | ||||
