CM36V-MDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

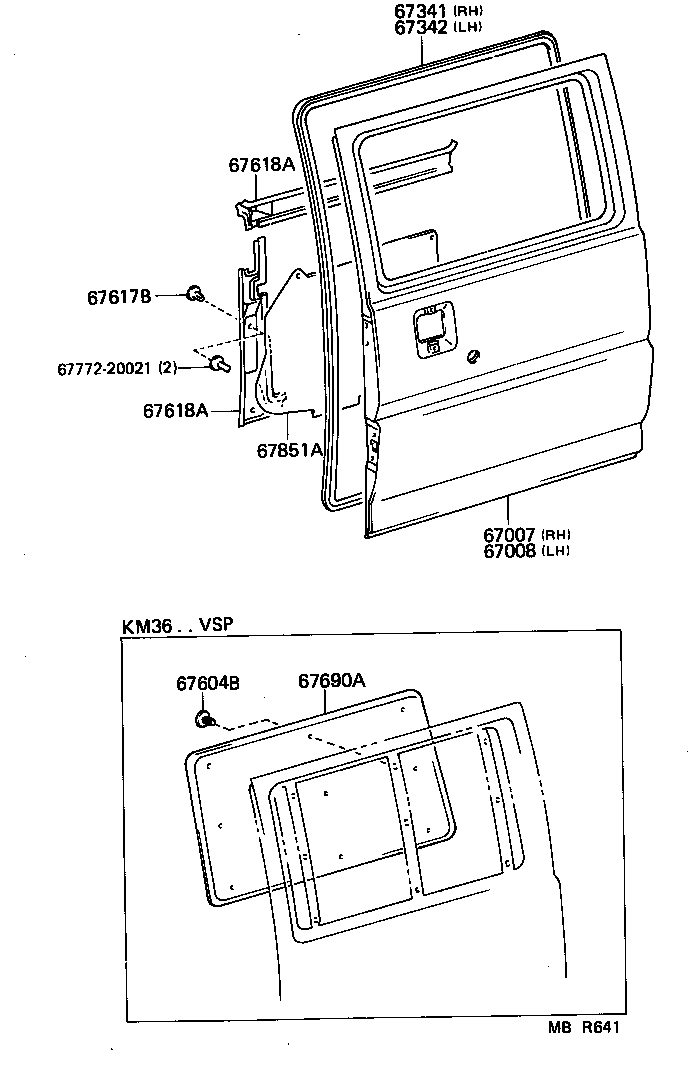

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 67007 67008 67341 67342 67604B 67617B 67618A 67618A 67690A 6777220021 67851A
Part # Description Qty Price
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-95734

CM36,KM35,36..VSG..DLX;CM30,4#,KM30,YM40..DLX,SW

 1
67004-95742

CM36,KM35,36..VSG..DLX;CM30,4#,KM30,YM40..DLX,SW

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ)

 1
67004-95750

CM36,KM35,36..VSG..DLX;CM30,4#,KM30,YM31,40..DLX,SW

 1
67004-95753

CM36,KM35,36..VSG..DLX;CM30,4#,KM30,YM31,40..DLX,SW

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱ ﾛﾂｸ)

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
67872-95702

CM3#,4#,KM3#,YM3#,40

 1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-95701

CM30,36,4#,KM3#,YM3#,40..V4D,W4D

 1
Common parts
67772-20021

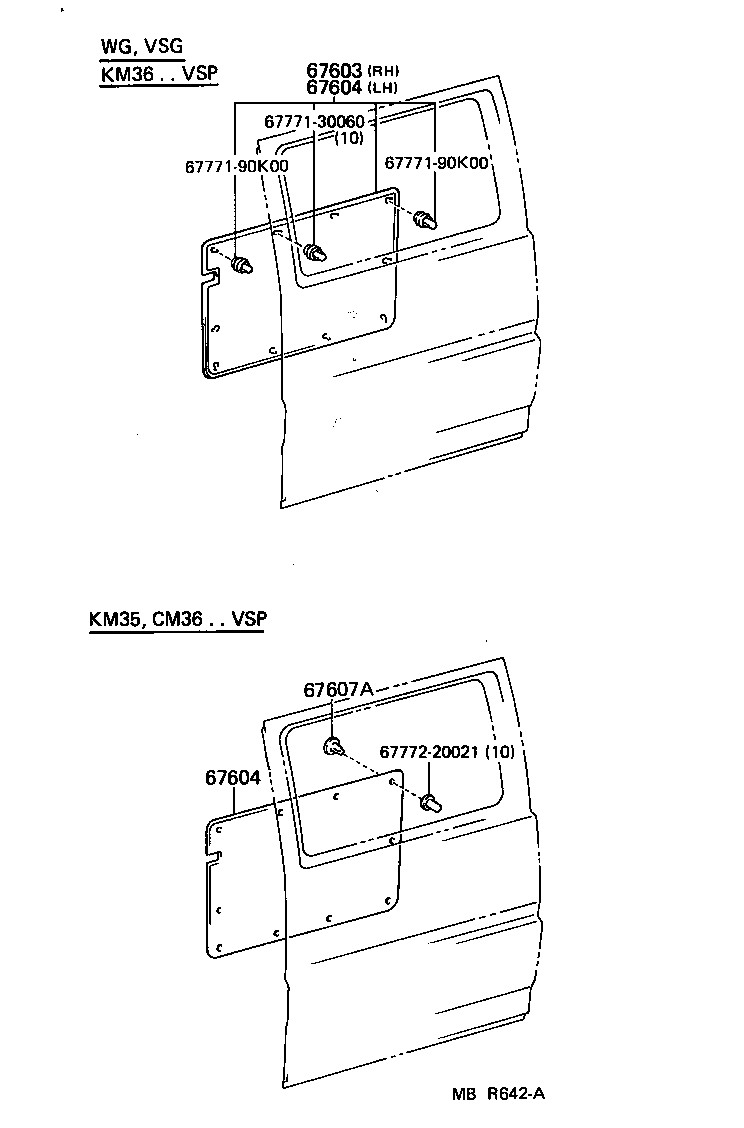

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 67603 67604 67604 67607A 6777130060 6777190K00 6777190K00 6777220021
Part # Description Qty Price
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-9573503

CM31,36,41,KM31,35,36,YM31..VSG

GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-9573503

CM31,36,41,KM31,35,36,YM31..VSG

GRAY,TRIM1#

 1
Common parts
67771-30060
67771-90K00
67772-20021
