CM36V-MDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

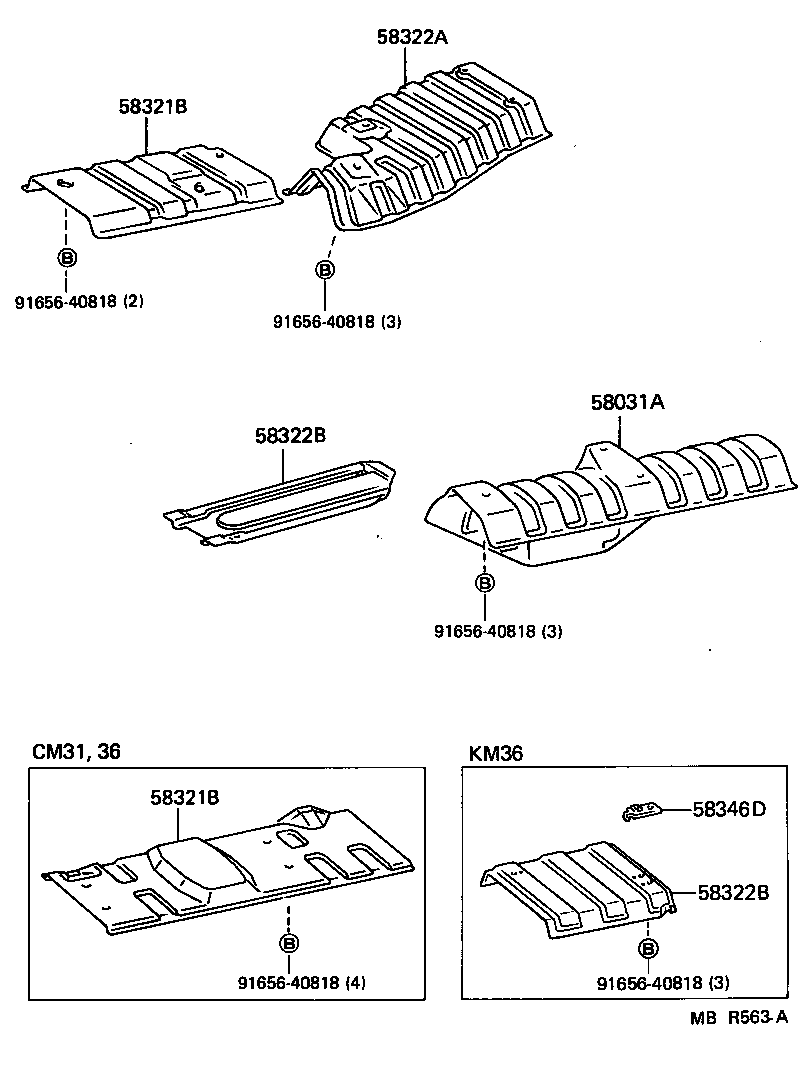

Click highlighted areas on diagram

diagram 58031A 58321B 58321B 58322A 58322B 58322B 58346D 9165640818 9165640818 9165640818 9165640818 9165640818
Part # Description Qty Price
58031A - INSULATOR SUB-ASSY, MAIN MUFFLER HEAT
58031-95700

CM30,4#,KM30,31,YM3#,40

 1
58031-95700

CM30,4#,KM30,YM30,40

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95707

KM31,35,36..V1

 1
58321-95703

CM31,36..V1

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95707

KM31,35,36..V1

 1
58321-95703

CM31,36..V1

 1
Common parts
91656-40818
