Toyota Liteace van,wagon CM36 CLUTCH & RELEASE FORK

CM36V-MDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

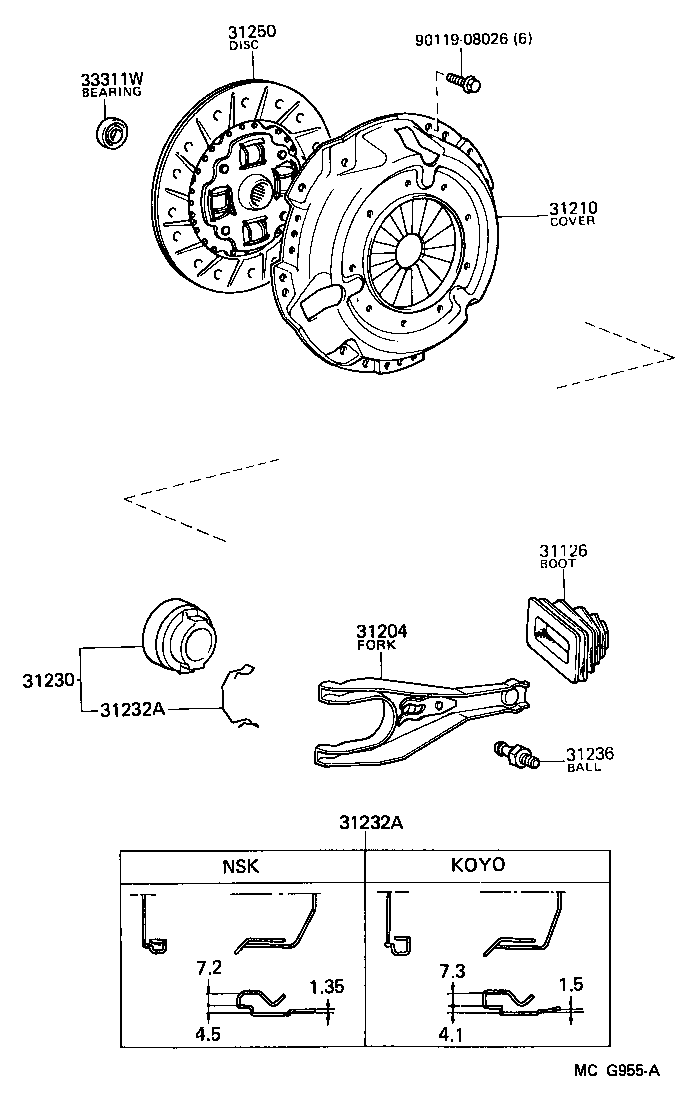

(8808- )KM30,31,36,YM3#,40..5F,5H

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060	CM3#,4#,YM3#,40..5F	08/1988 - 01/1992	1
31126-20070	KM30,31,36..5F,5H	08/1988 - 01/1992	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-22040	KM30,31,36..5F,5H	08/1988 - 01/1992	1
31204-20071	CM3#,4#,YM3#,40..5F	08/1988 - 01/1992	1
31210 - COVER ASSY, CLUTCH
31210-35080	CM3#,YM30,40..5F..(CBR,DSL)	08/1988 - 12/1988	1
31210-22120	CM3#,YM3#,40..5F..(CBR,DSL)	12/1988 - 01/1992	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35090	CM3#,4#,KM30,31,36,YM3#,40..5F,5H	08/1988 - 01/1992	1
31232A - CLIP, RELEASE BEARING HUB
31232-35040	CM3#,4#,KM30,31,36,YM3#,40..5F,5H KOYO	11/1989 - 01/1992	1
31232-35020	CM3#,4#,KM30,31,36,YM30,40..5F	08/1988 - 11/1989	1
31232-35020	CM3#,4#,KM30,31,36,YM3#,40..5F,5H NSK	11/1989 - 01/1992	1
31232A - CLIP, RELEASE BEARING HUB
31232-35040	CM3#,4#,KM30,31,36,YM3#,40..5F,5H KOYO	11/1989 - 01/1992	1
31232-35020	CM3#,4#,KM30,31,36,YM30,40..5F	08/1988 - 11/1989	1
31232-35020	CM3#,4#,KM30,31,36,YM3#,40..5F,5H NSK	11/1989 - 01/1992	1
31236 - BALL, RELEASE FORK
31236-30060	CM3#,4#,KM3#,YM3#,40..MTM	08/1988 - 01/1992	1
31250 - DISC ASSY, CLUTCH
31250-27060	KM36..5F;KM30,31,36..(HRF,SRF)..MTM..(DLX,SUP,SW)	07/1989 - 08/1989	1
31250-27061	KM36..5F;KM30,31,36..(HRF,SRF)..MTM..(DLX,SUP,SW)	08/1989 - 10/1989	1
31250-20115	CM3#..5F..DSL	12/1988 - 07/1990	1
31250-27090	KM36..5F;KM31,36..V1..MTM ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	07/1989 - 08/1990	1
31250-27060	KM31,36..MTM	08/1988 - 07/1989	1
31250-20114	CM3#..5F..DSL	08/1988 - 12/1988	1
31250-20116	CM3#..5F..DSL	07/1990 - 01/1992	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12004	CM3#,4#..5F	08/1988 - 01/1992	1
Common parts
90119-08026

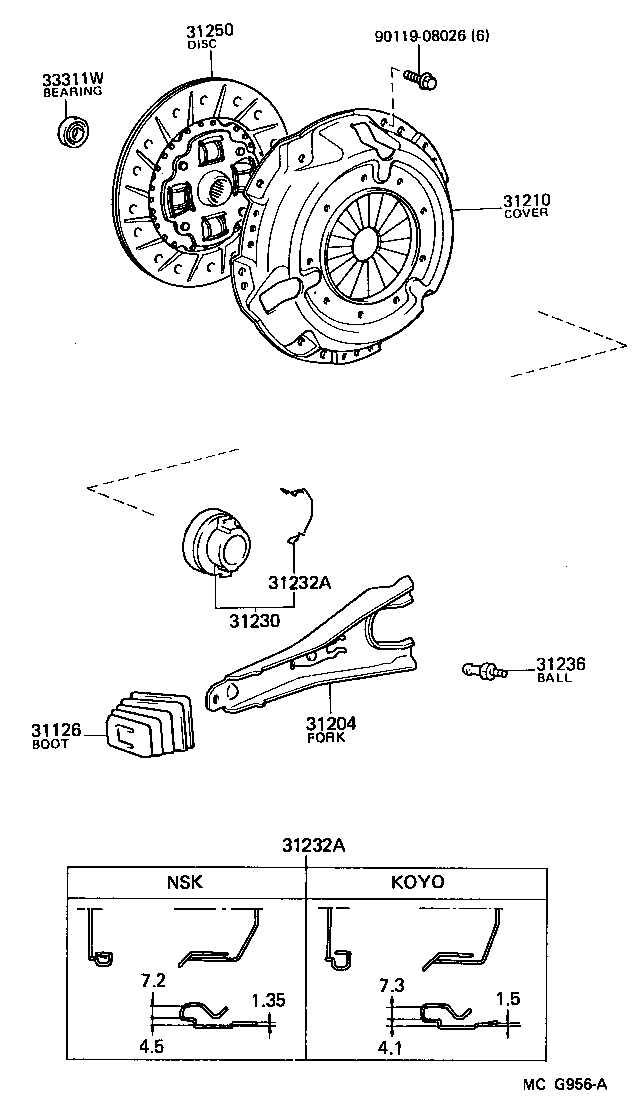

(8808- )CM3#,4#..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060	CM3#,4#,YM3#,40..5F	08/1988 - 01/1992	1
31126-20070	KM30,31,36..5F,5H	08/1988 - 01/1992	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-22040	KM30,31,36..5F,5H	08/1988 - 01/1992	1
31204-20071	CM3#,4#,YM3#,40..5F	08/1988 - 01/1992	1
31210 - COVER ASSY, CLUTCH
31210-35080	CM3#,YM30,40..5F..(CBR,DSL)	08/1988 - 12/1988	1
31210-22120	CM3#,YM3#,40..5F..(CBR,DSL)	12/1988 - 01/1992	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35090	CM3#,4#,KM30,31,36,YM3#,40..5F,5H	08/1988 - 01/1992	1
31232A - CLIP, RELEASE BEARING HUB
31232-35040	CM3#,4#,KM30,31,36,YM3#,40..5F,5H KOYO	11/1989 - 01/1992	1
31232-35020	CM3#,4#,KM30,31,36,YM30,40..5F	08/1988 - 11/1989	1
31232-35020	CM3#,4#,KM30,31,36,YM3#,40..5F,5H NSK	11/1989 - 01/1992	1
31232A - CLIP, RELEASE BEARING HUB
31232-35040	CM3#,4#,KM30,31,36,YM3#,40..5F,5H KOYO	11/1989 - 01/1992	1
31232-35020	CM3#,4#,KM30,31,36,YM30,40..5F	08/1988 - 11/1989	1
31232-35020	CM3#,4#,KM30,31,36,YM3#,40..5F,5H NSK	11/1989 - 01/1992	1
31236 - BALL, RELEASE FORK
31236-30060	CM3#,4#,KM3#,YM3#,40..MTM	08/1988 - 01/1992	1
31250 - DISC ASSY, CLUTCH
31250-27060	KM36..5F;KM30,31,36..(HRF,SRF)..MTM..(DLX,SUP,SW)	07/1989 - 08/1989	1
31250-27061	KM36..5F;KM30,31,36..(HRF,SRF)..MTM..(DLX,SUP,SW)	08/1989 - 10/1989	1
31250-20115	CM3#..5F..DSL	12/1988 - 07/1990	1
31250-27090	KM36..5F;KM31,36..V1..MTM ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	07/1989 - 08/1990	1
31250-27060	KM31,36..MTM	08/1988 - 07/1989	1
31250-20114	CM3#..5F..DSL	08/1988 - 12/1988	1
31250-20116	CM3#..5F..DSL	07/1990 - 01/1992	1
33311W - BEARING (FOR INPUT SHAFT)
90363-12004	CM3#,4#..5F	08/1988 - 01/1992	1
Common parts
90119-08026
