CM36V-MDZ (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2C#

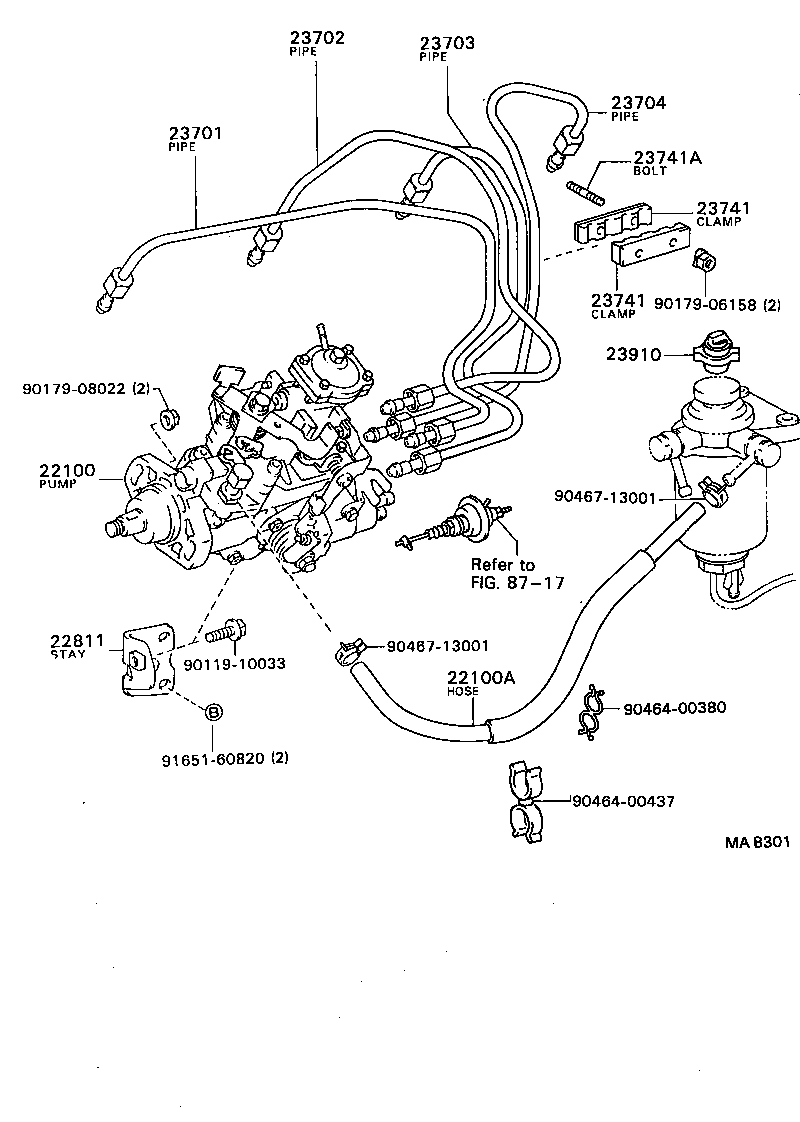

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741A 23910 8717 9011910033 9017906158 9017908022 9046400380 9046400437 9046713001 9046713001 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-6A680

2C..CM31,36..5F

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14052

2C#..CM3#,4#

長さ=440

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-64010

2C#..CM3#,4#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64070

2C#..CM3#,4#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64070

2C#..CM3#,4#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64031

2C#..CM3#,4#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64070

2C#..CM3#,4#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

2C#..CM3#,4#

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

2C#..CM3#,4#

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06275

2C#..CM3#,4#

 2
23910 - HEATER ASSY, FUEL
23910-64010

2C#..CM3#,4#

 1
Common parts
90119-10033
90179-06158
90179-08022
90464-00380
90464-00437
90467-13001
91651-60820
Linked diagrams
8717
