CM36V-MDSFT (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM36,KM35,36..MRF

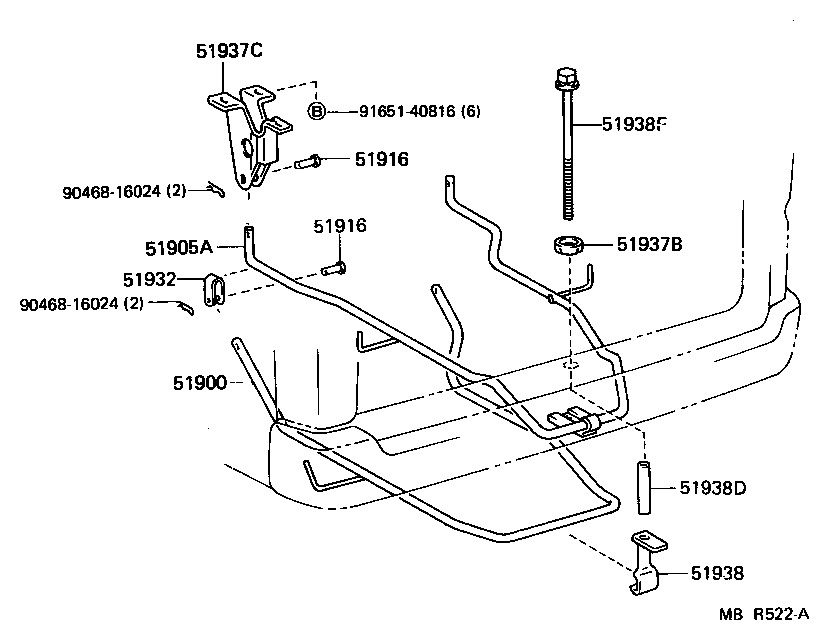

Click highlighted areas on diagram

diagram 51900 51905A 51916 51916 51932 51937B 51937C 51938 51938D 51938F 9046816024 9046816024 9165140816
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-27030

CM36,KM35,36..MRF

 1
51905A - FRAME SUB-ASSY, SPARE TIRE CARRIER
51905-27020

CM36,KM35,36..MRF

 1
51916 - PIN, SPARE TIRE CARRIER
51916-27011

CM36,KM35,36..MRF

 4
51916 - PIN, SPARE TIRE CARRIER
51916-27011

CM36,KM35,36..MRF

 4
51932 - CARRIER, SPARE WHEEL, NO.2
51932-27040

CM36,KM35,36..MRF

 2
51937B - PLATE, SPARE WHEEL CARRIER LOCK
51937-26010

CM3#,4#,KM3#,YM3#,40

 1
51937C - BRACKET, SPARE WHEEL CARRIER HINGE
51937-27060

CM36,KM35,36..MRF

 2
51938 - LOCK, SPARE WHEEL CARRIER
51938-27050

CM36,KM35,36..MRF

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90387-14014

CM36,KM35,36..MRF

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90119-12091

CM36,KM35,36..MRF

 1
Common parts
90468-16024
91651-40816
