CM36V-MDSFT (1988)
Toyota Liteace Van,Wagon
(8808- )

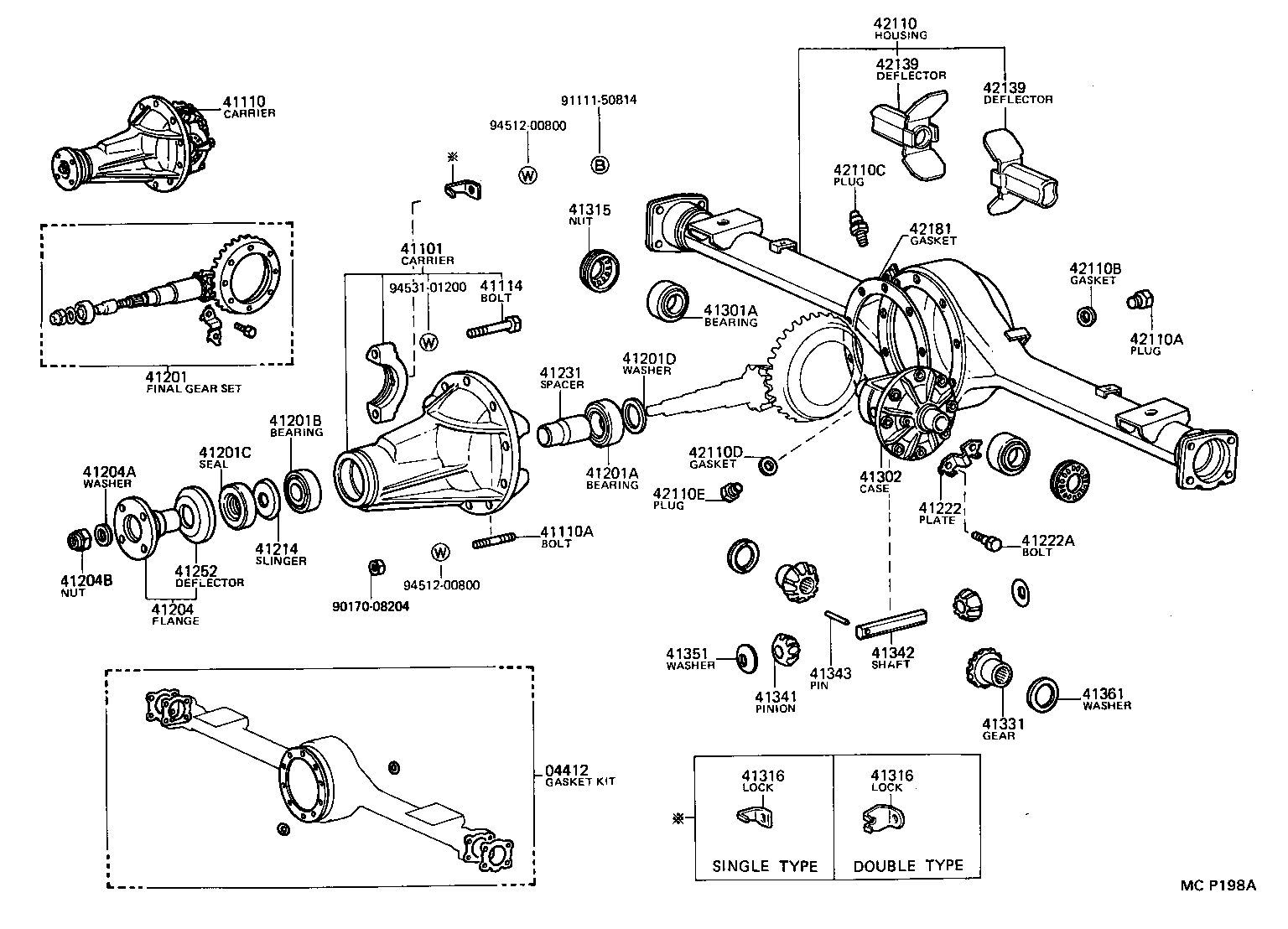

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-20030 |
KM36..MTM;KM36..SRF..3FC;CM3#,KM30,31,YM3# |
1 | ||
| 04412-20030 |
CM3#,KM3#,YM30 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30010 |
CM3#,KM3#,YM3# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-22240 |
CM36..MRF *FGR=43:11=3.909 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
CM3#,4#,KM3#,YM3#,40 ﾈｼﾞ部長さ=12 & 15,長さ=34 |
10 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
CM3#,KM3#,YM3# |
4 | ||
| 90101-12376 |
CM3#,4#,KM3#,YM3#,40 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29765 |
CM36..MRF *FGR=43:11=3.909 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35031 |
CM3#,KM3#,YM3# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 90366-30022 |
CM3#,KM3#,YM3# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35400 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.48,ﾏｰｸ 09 |
1 | ||
| 90201-35399 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.43,ﾏｰｸ 08 |
1 | ||
| 90201-35403 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.57,ﾏｰｸ 12 |
1 | ||
| 90201-35402 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.54,ﾏｰｸ 11 |
1 | ||
| 90201-35401 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.51,ﾏｰｸ 10 |
1 | ||
| 90201-35398 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.42,ﾏｰｸ 07 |
1 | ||
| 90201-35397 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.39,ﾏｰｸ 06 |
1 | ||
| 90201-35404 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-35434 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35396 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.36,ﾏｰｸ 05 |
1 | ||
| 90201-35440 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.69,ﾏｰｸ 16 |
1 | ||
| 90201-35436 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35439 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.66,ﾏｰｸ 15 |
1 | ||
| 90201-35435 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35438 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.63,ﾏｰｸ 14 |
1 | ||
| 90201-35437 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35441 |
CM3#,4#,KM3#,YM3#,40 厚さ=2.72,ﾏｰｸ 17 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CM3#,KM3#,YM3# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
CM3#,4#,KM3#,YM3#,40 # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-28010 |
CM3#,KM3#,YM3# |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
CM3#,KM3#,YM3# |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22020 |
CM3#,KM3#,YM3# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45014 |
CM3#,KM3#,YM3# |
2 | ||
| 90368-45011 |
CM3#,KM3#,YM3# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30022 |
CM3#,KM3#,YM3# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
CM3#,KM3#,YM3# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CM3#,4#,KM3#,YM3#,40 DOUBLE TYPE |
2 | ||
| 41316-30010 |
CM3#,4#,KM3#,YM3#,40 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CM3#,4#,KM3#,YM3#,40 DOUBLE TYPE |
2 | ||
| 41316-30010 |
CM3#,4#,KM3#,YM3#,40 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22070 |
CM3#,KM3#,YM3# |
2 | ||
| 41331-30021 |
CM3#,KM3#,YM30 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
CM3#,KM3#,YM30 |
2 | ||
| 41341-22030 |
CM3#,KM3#,YM3# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-30011 |
CM3#,KM3#,YM3# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CM3#,KM3#,YM3# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
CM3#,KM3#,YM3# 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22040 |
CM3#,KM3#,YM3# 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22030 |
CM3#,KM3#,YM3# 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-22150 |
CM3#,KM3#,YM3# 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22160 |
CM3#,KM3#,YM3# 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22140 |
CM3#,KM3#,YM3# 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-27200 |
CM36,KM35,36..MRF |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30010 |
CM3#,KM3#,YM3# |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
