CM36V-MDE (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

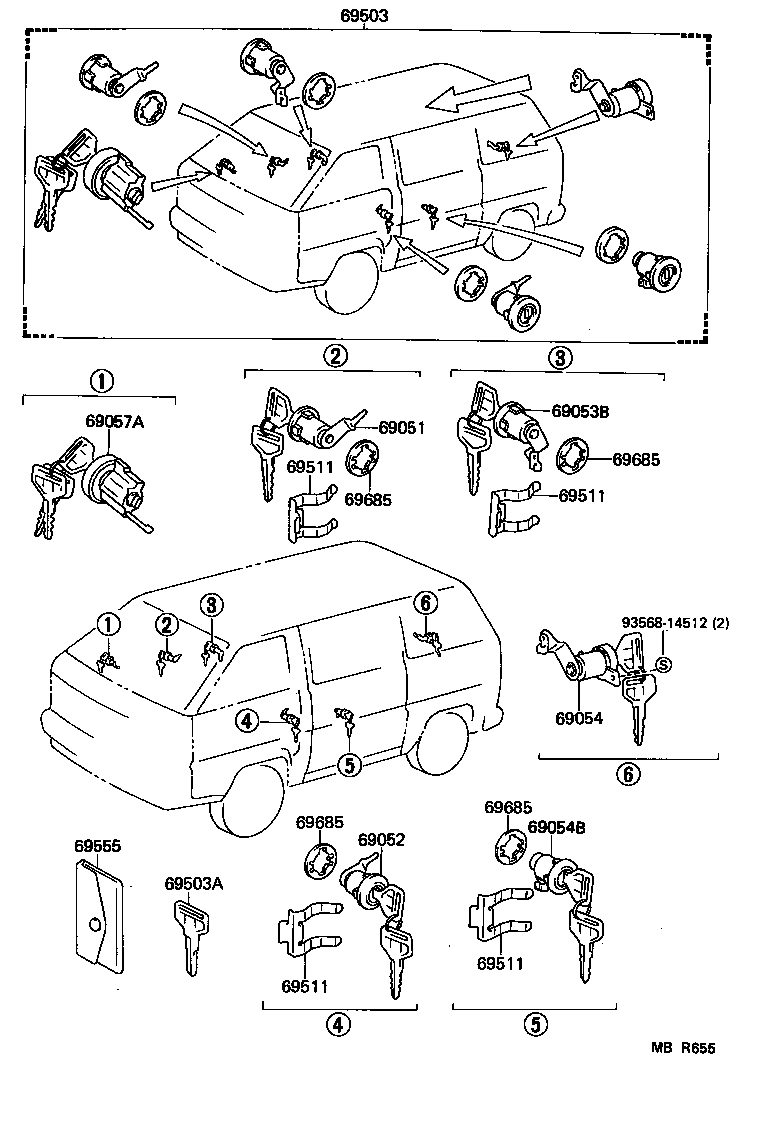

Click highlighted areas on diagram

diagram 69051 69052 69053B 69054 69054B 69057A 69503 69503A 69511 69511 69511 69511 69555 69685 69685 69685 69685 9356814512
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95715

CM40..4FC..(GXL,SSW,SW);CM40..W4D..5F..(GXL,LD,SW);CM3#,41,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95715

CM40..4FC;CM3#,41,KM3#,YM3#,40;CM40..W4D..5F..(FXV,GXL,LD,SW)

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95712

CM40..4FC;CM3#,41,KM3#,YM3#,40;CM40..W4D..5F..(FXV,GXL,LD,SW)

 1
69054B - CYLINDER & KEY SET, SLIDE DOOR LOCK, LH
69054-95708

CM40..4FC;CM3#,41,KM3#,YM3#,40;CM40..W4D..5F..(FXV,GXL,LD,SW)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95717

CM40..4FC;CM3#,41,KM3#,YM3#,40;CM40..W4D..5F..(FXV,GXL,LD,SW)

 1
69503 - CYLINDER SET, LOCK
69503-95784

CM40..W4D..(GXL,LD,SW);CM30,36,41,KM3#,YM3#,40..(V4D,W4D)..(DLX,GXL,LD,SCA,SSW,SUC,SUP,SW)

 1
69503A - KEY, BLANK
90999-00129

CM40..4FC;CM3#,41,KM3#,YM3#,40;CM40..W4D..5F..(FXV,GXL,LD,SW)

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00066

CM40..4FC;CM3#,41,KM3#,YM3#,40;CM40..W4D..5F..(FXV,GXL,LD,SW)

ﾏｽﾀｰｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM30,36,4#,KM3#,YM3#,40..V4D,W4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM30,36,4#,KM3#,YM3#,40..V4D,W4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM30,36,4#,KM3#,YM3#,40..V4D,W4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM30,36,4#,KM3#,YM3#,40..V4D,W4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM40..W4D..(FXV,GXL,LD,SW);CM30,36,41,KM3#,YM3#,40..V4D,W4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM40..W4D..(FXV,GXL,LD,SW);CM30,36,41,KM3#,YM3#,40..V4D,W4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM40..W4D..(FXV,GXL,LD,SW);CM30,36,41,KM3#,YM3#,40..V4D,W4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM40..W4D..(FXV,GXL,LD,SW);CM30,36,41,KM3#,YM3#,40..V4D,W4D

 3
Common parts
93568-14512
