CM35V-MDZFE (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

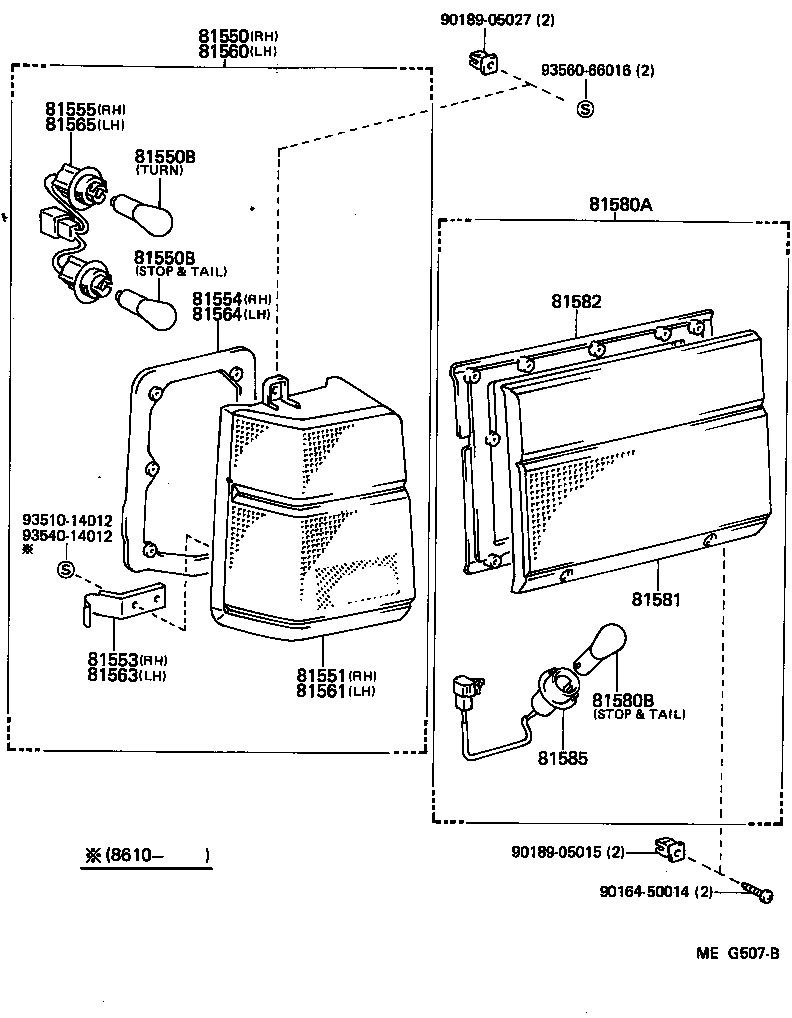

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81553 81554 81555 81560 81561 81563 81564 81565 81580A 81580B 81581 81582 81585 9016450014 9018905015 9018905027 9351014012 9354014012 9356066016
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95707

CM3#,4#,KM3#,YM30,40

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CM3#,4#,KM3#,YM30,40

12V 23W,12V 23W(TURN)

 2
99132-21210

CM3#,4#,KM3#,YM30,40

12V 21/5W,12V 21/5W(STOP,TAIL & PARKING)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CM3#,4#,KM3#,YM30,40

12V 23W,12V 23W(TURN)

 2
99132-21210

CM3#,4#,KM3#,YM30,40

12V 21/5W,12V 21/5W(STOP,TAIL & PARKING)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95707

CM3#,4#,KM3#,YM30,40

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
81556-95707

CM3#,4#,KM3#,YM30,40

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-95707

CM3#,4#,KM3#,YM30,40

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95707

CM3#,4#,KM3#,YM30,40

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95707

CM3#,4#,KM3#,YM30,40

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95707

CM3#,4#,KM3#,YM30,40

 1
81563 - BRACKET, REAR COMBINATION LAMP, NO.1 LH
81556-95707

CM3#,4#,KM3#,YM30,40

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-95707

CM3#,4#,KM3#,YM30,40

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-95707

CM3#,4#,KM3#,YM30,40

 1
Common parts
90164-50014
90189-05015
90189-05027
93510-14012
93540-14012
93560-66016
