CM35V-MDZFE (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8509- )CM30,YM40..5F..DLX,SW,XL7 ; (8509-)CM30,KM30,YM30,40..3FC,4F,4FC ; (

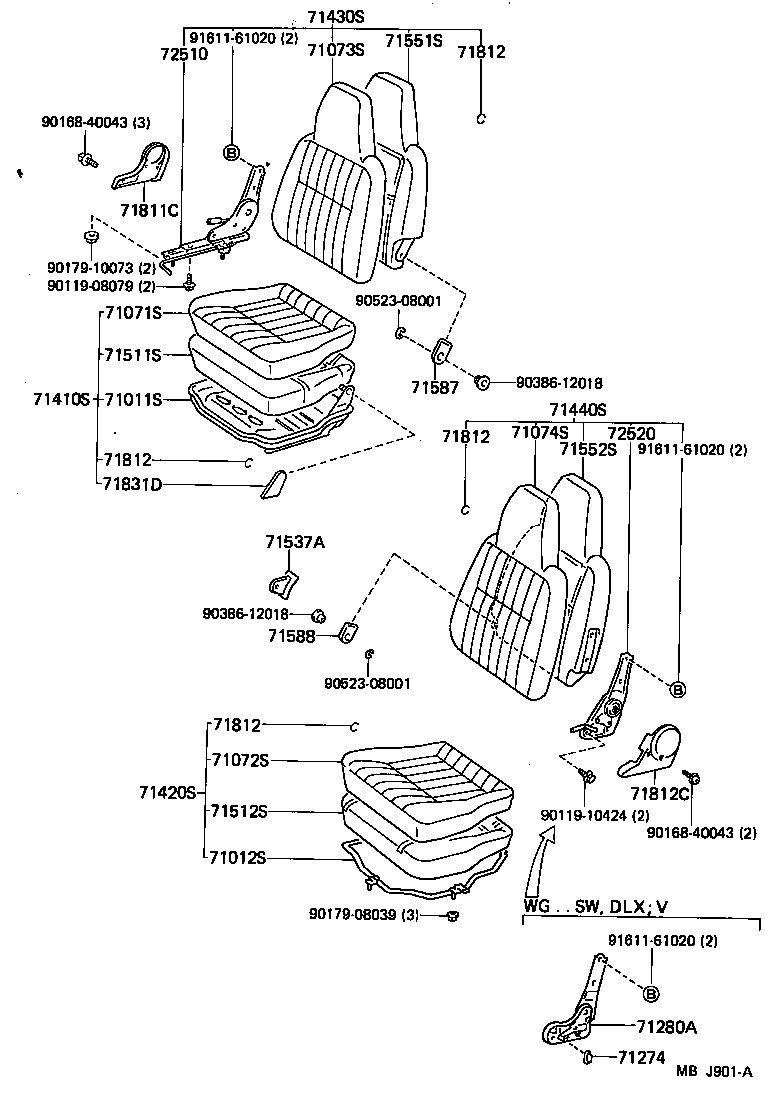

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71274 71280A 71410S 71420S 71430S 71440S 71511S 71512S 71537A 71551S 71552S 71587 71588 71811C 71812 71812 71812 71812 71812C 71831D 72510 72520 9011908079 9011910424 9016840043 9016840043 9017908039 9017910073 9038612018 9038612018 9052308001 9052308001 9161161020 9161161020 9161161020
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95706

CM3#,4#,KM3#,YM30,40

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95705

CM3#,4#,KM30,31,36,YM30,40..3FC,4F,4FC,5F

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9571504

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,BLUE,TRIM4#,8#

 1
71071-9571506

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71071-9571514

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,DEEP BLUE,TRIM4#,8#

 1
71071-9571516

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9571604

CM35,36,41..VSG

VL,BLUE,BLUE,TRIM4#,8#

 1
71072-9571606

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71072-9571614

CM35,36,41..VSG

VL,BLUE,BLUE,TRIM4#,8#

 1
71072-9571616

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9571304

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,BLUE,TRIM4#,8#

 1
71073-9571316

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71073-9571306

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71073-9571314

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,BLUE,TRIM4#,8#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-9571404

CM30,KM30..SW;CM35,36,41..VSG

VL,BLUE,BLUE,TRIM4#,8#

 1
71074-9571406

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71074-9571414

CM35,36,41..VSG;CM30,40,KM30,YM40..SW

VL,BLUE,BLUE,TRIM4#,8#

 1
71074-9571416

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71274 - KNOB, FRONT SEAT HINGE
71274-95J0016

CM35,36,41

BROWN,BROWN,TRIM4#

 1
71274-95J0014

CM35,36,41..VSG

BLUE,BLUE,TRIM4#,8#

 1
71280A - HINGE ASSY, FRONT SEAT BACK, LH
71320-9570104

CM3#,4#,KM30,YM40..DLX,SW

BLUE,BLUE,TRIM4#,8#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9576704

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,BLUE,TRIM4#,8#

 1
71410-9576706

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71410-9576716

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71410-9576714

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,DEEP BLUE,TRIM4#,8#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9571806

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71420-9571804

CM35,36,41..VSG

VL,BLUE,BLUE,TRIM4#,8#

 1
71420-9571816

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71420-9571814

CM35,36,41..VSG

VL,BLUE,BLUE,TRIM4#,8#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9572104

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,BLUE,TRIM4#,8#

 1
71430-9572106

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71430-9572116

CM35,36,41,KM35,36..DLX

VL,BROWN,BROWN,TRIM4#

 1
71430-9572114

CM35,36,41,KM35,36..VSG..DLX

VL,BLUE,BLUE,TRIM4#,8#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9572106

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71440-9572104

CM30,KM30..SW;CM35,36,41..VSG

VL,BLUE,BLUE,TRIM4#,8#

 1
71440-9572114

CM30,KM30..SW;CM35,36,41..VSG

VL,BLUE,BLUE,TRIM4#,8#

 1
71440-9572116

CM35,36,41

VL,BROWN,BROWN,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95701

CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-95702

CM35,36,41

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-95702

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-95702

CM35,36,41

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71588-9570004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

DRIVER SEAT,BLUE,BLUE,TRIM4#,8#

 1
71588-9570006

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

DRIVER SEAT,BROWN,BROWN,TRIM4#

 1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-9570004

CM35,36,41,KM31,36..VSG..(3FC,4FC,5F)

BLUE,BLUE,TRIM4#,8#

 1
71588-9570006

CM35,36,41,KM31,36..3FC,4FC,5F

BROWN,BROWN,TRIM4#

 1
71811C - COVER, RECLINING ADJUSTER, RH
71801-9570004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
71801-9570006

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM3#,4#,KM3#,YM30,40

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM3#,4#,KM3#,YM30,40

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM3#,4#,KM3#,YM30,40

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM3#,4#,KM3#,YM30,40

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-9570004

CM35,36,41..VSG

BLUE,BLUE,TRIM4#,8#

 1
71812-9570006

CM35,36,41

BROWN,BROWN,TRIM4#

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-9570004

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 1
71831-9570006

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-9570806

CM35,36,41,KM31,35,36

BROWN,BROWN,TRIM4#

 1
72510-9570804

CM3#,4#,KM3#,YM40..DLX,SUP,SW

BLUE,BLUE,TRIM4#,8#

 1
Common parts
90119-08079
90119-10424
90168-40043
90179-08039
90179-10073
90386-12018
90523-08001
91611-61020

(8509- )CM35,36,41,KM31,35,36

Click highlighted areas on diagram

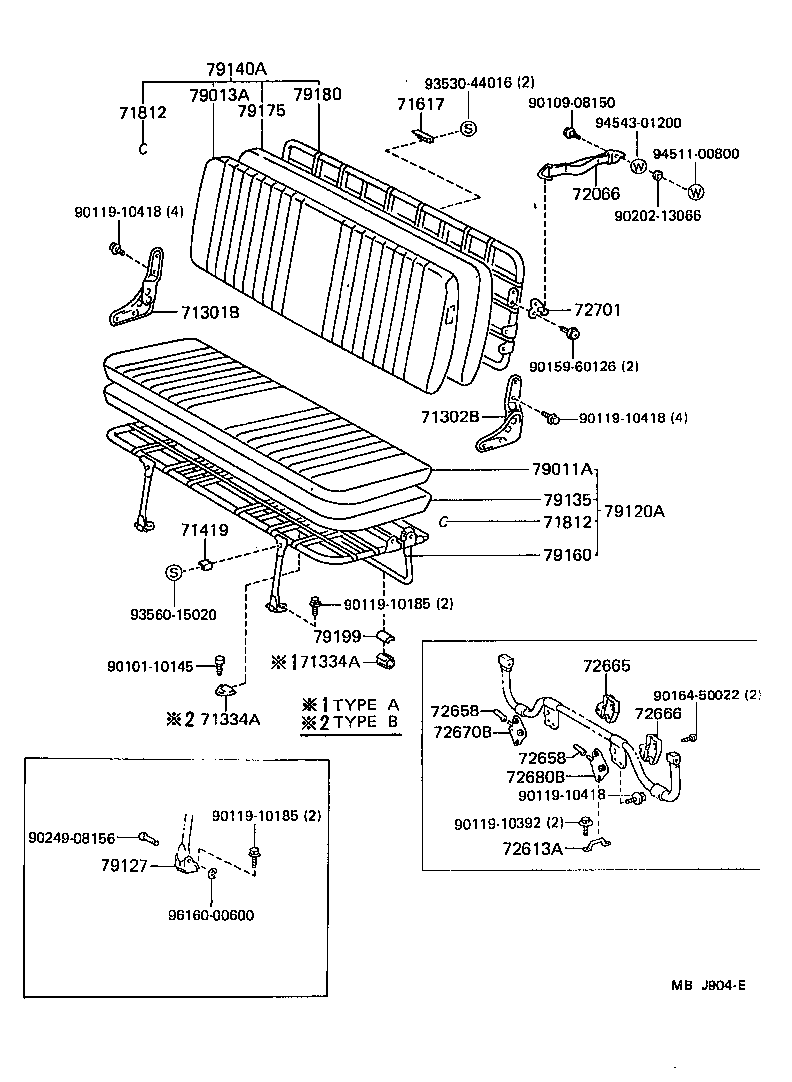

diagram 71301B 71302B 71334A 71334A 71419 71617 71812 71812 72066 72613A 72658 72658 72665 72666 72670B 72680B 72701 79011A 79013A 79120A 79127 79135 79140A 79160 79175 79180 79199 9010110145 9010908150 9011910185 9011910185 9011910392 9011910418 9011910418 9011910418 9015960126 9016450022 9020213066 9024908156 9353044016 9356015020 9451100800 9454301200 9616000600
Part # Description Qty Price
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM3#,4#,KM3#,YM30,40

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM3#,4#,KM3#,YM30,40

 1
Common parts
90101-10145
90109-08150
90119-10185
90119-10392
90119-10418
90159-60126
90164-50022
90202-13066
90249-08156
93530-44016
93560-15020
94511-00800
94543-01200
96160-00600
