CM35V-MDZF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

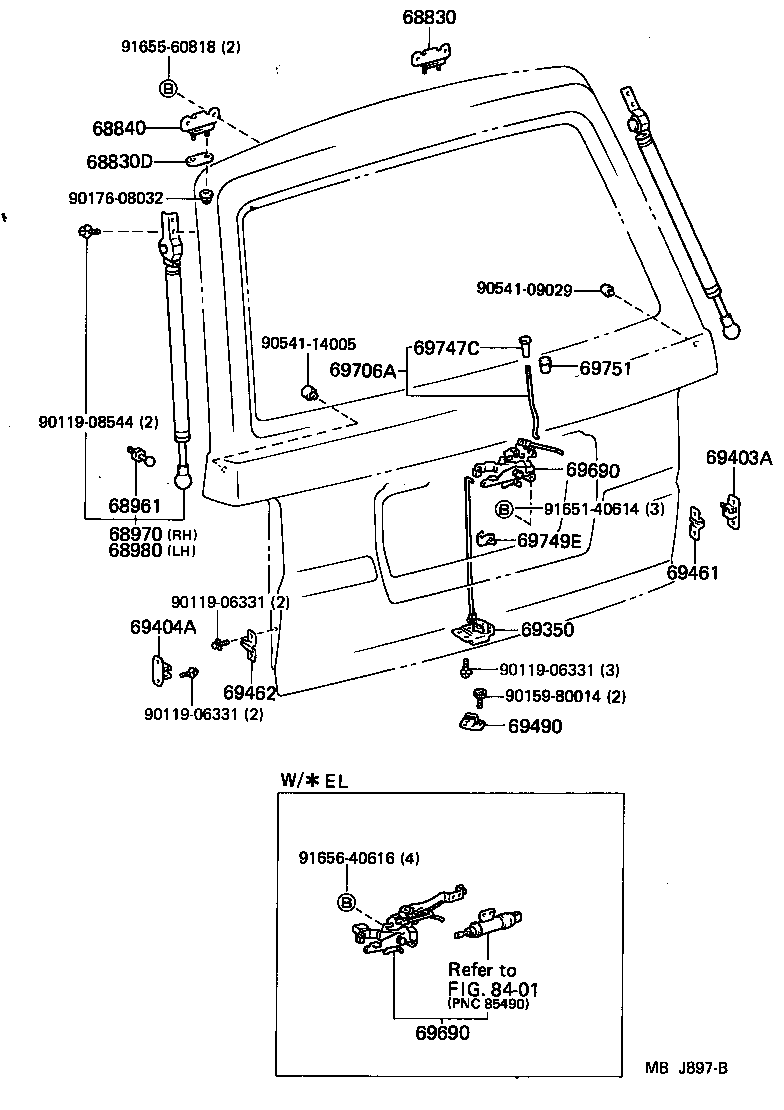

Click highlighted areas on diagram

diagram 68830 68830D 68840 68961 68970 68980 69350 69403A 69404A 69461 69462 69490 69690 69690 69706A 69747C 69749E 69751 8401 9011906331 9011906331 9011906331 9011908544 9015980014 9017608032 9054109029 9054114005 9165140614 9165560818 9165640616
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68810-95J01

CM3#,4#,KM3#,YM30,40

 1
68810-95J00

CM3#,4#,KM3#,YM30,40

 1
68830D - PLATE, BACK DOOR HINGE
68825-95700

CM3#,4#,KM3#,YM30,40

 2
68840 - HINGE ASSY, BACK DOOR, LH
68820-95J00

CM3#,4#,KM3#,YM30,40

 1
68820-95J01

CM3#,4#,KM3#,YM30,40

 1
68961 - BOLT, BACK DOOR STAY
68961-95701

CM3#,4#,KM3#,YM30,40

 2
68970 - STAY ASSY, BACK DOOR, RH
68950-29495

CM35,36,41,KM31,35,36..HRF,MRF

LABEL COLOR=GREEN

 1
68950-29475

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)

 1
68950-29485

CM35,41,KM35,36..(HRF,MRF)..DLX

COLD SPEC,W/RR WIPER OR *EL

 1
68950-29485

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)

LABEL COLOR=SILVER

 1
68950-29585

CM3#,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)

LABEL COLOR=YELLOW

 1
68950-29495

CM35,36,41,KM31,35,36..HRF,MRF

COLD SPEC OR W/CURTAIN

 1
68950-29595

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)

LABEL COLOR=BROWN

 1
68980 - STAY ASSY, BACK DOOR
68960-29335

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)

 1
68960-29345

CM35,41,KM35,36..(HRF,MRF)..DLX

COLD SPEC,W/RR WIPER OR *EL

 1
68960-29355

CM35,36,41,KM31,35,36..HRF,MRF

COLD SPEC OR W/CURTAIN

 1
68960-29345

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)

LABEL COLOR=SILVER

 1
68960-29445

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)

LABEL COLOR=BROWN

 1
68960-29435

CM3#,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)

LABEL COLOR=YELLOW

 1
68960-29355

CM35,36,41,KM31,35,36..HRF,MRF

LABEL COLOR=GREEN

 1
69350 - LOCK ASSY, BACK DOOR
69350-95705

CM3#,4#,KM3#,YM30,40

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95700

CM3#,4#,KM3#,YM30,40

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69404-95700

CM3#,4#,KM3#,YM30,40

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69461-95701

CM3#,4#,KM3#,YM30,40

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69462-95701

CM3#,4#,KM3#,YM30,40

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-95702

CM3#,4#,KM3#,YM30,40

 1
69430-87002

CM3#,4#,KM3#,YM30,40

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95706

CM35,36,41,KM35,36..DLX

 1
69690-95705

CM35,36,41,KM31,35,36

W/*EL

 1
69690-95706

CM35,36,41,KM31,35,36

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95706

CM35,36,41,KM35,36..DLX

 1
69690-95705

CM35,36,41,KM31,35,36

W/*EL

 1
69690-95706

CM35,36,41,KM31,35,36

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

CM3#,4#,KM3#,YM30,40

 1
Common parts
90119-06331
90119-08544
90159-80014
90176-08032
90541-09029
90541-14005
91651-40614
91655-60818
91656-40616
Linked diagrams
8401
