CM35V-MDZF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

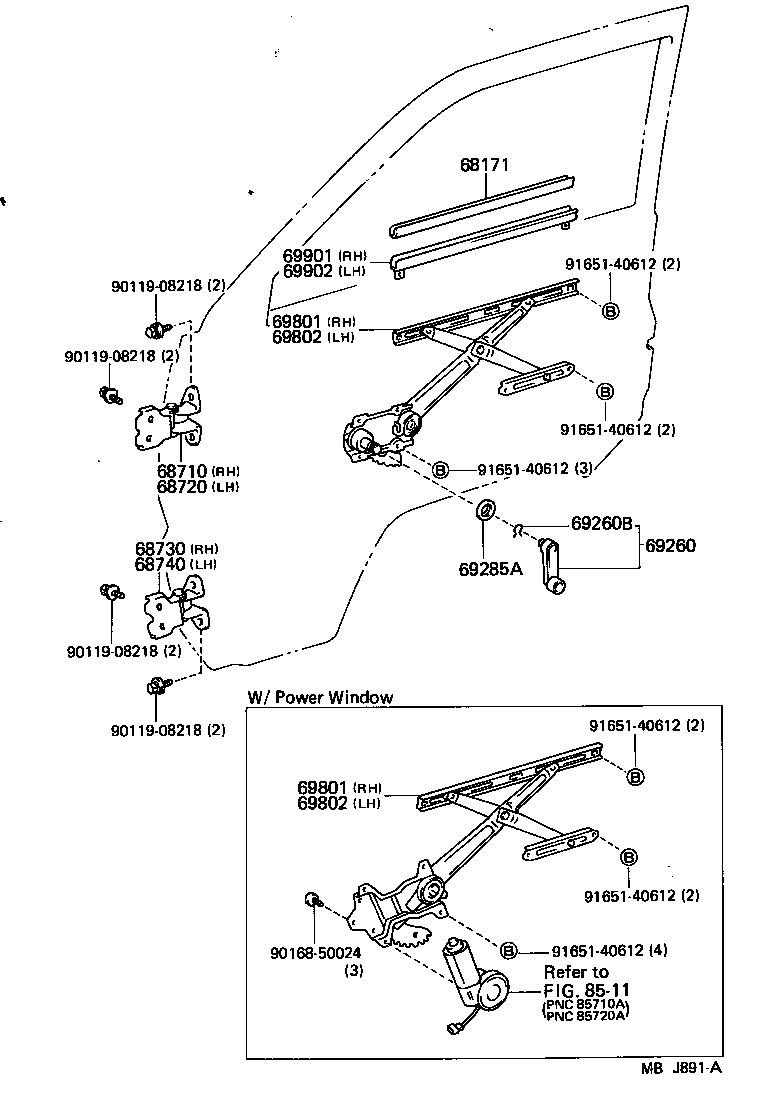

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69285A 69801 69801 69802 69802 69901 69902 8511 9011908218 9011908218 9011908218 9011908218 9016850024 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

CM3#,4#,KM3#,YM30,40

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95702

CM3#,4#,KM3#,YM30,40

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95702

CM3#,4#,KM3#,YM30,40

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95702

CM3#,4#,KM3#,YM30,40

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95702

CM3#,4#,KM3#,YM30,40

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-9570216

CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..GXL,SCA,SUC,SUP

BROWN,BROWN,TRIM4#

 2
69260-9570214

CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

BLUE,BLUE,TRIM4#,8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

 2
69285A - PLATE, DOOR VENT WINDOW CONTROL HANDLE
69285-2201008

CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

NATURAL,NATURAL WHITE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95704

CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95704

CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95704

CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95704

CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-87002

CM3#,4#,KM3#,YM30,40

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-87002

CM3#,4#,KM3#,YM30,40

 1
Common parts
90119-08218
90168-50024
91651-40612
Linked diagrams
8511
