CM35V-MDZF (1985)
Toyota Liteace Van,Wagon
(8509- )CM3#,KM3#,YM30

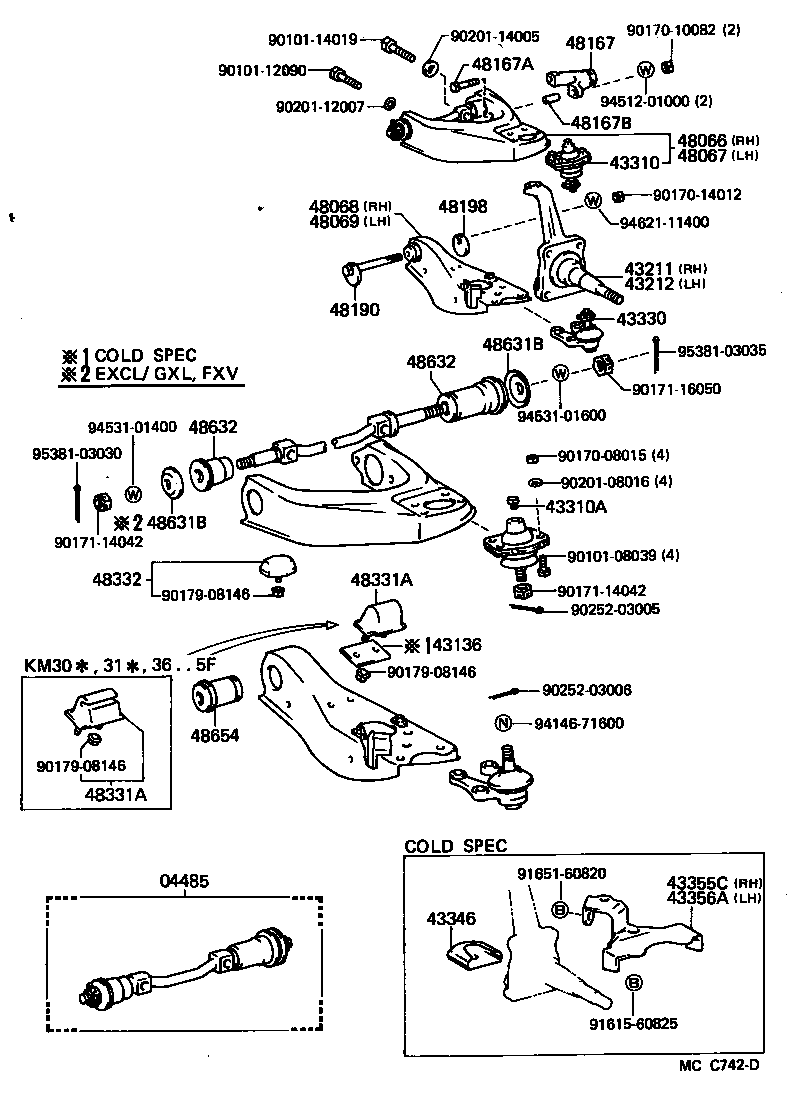

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-28020 |
CM35,36,KM31,35,36 |
2 | ||
| 04485-28020 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-28021 |
CM3#,KM3#,YM30 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43211-28021 |
CM3#,KM3#,YM30 |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43360-29056 |
CM3#,KM3#,YM30 LH |
1 | ||
| 43350-29036 |
CM3#,KM3#,YM30 RH |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
CM3#,4#,KM3#,YM30,40 |
6 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29175 |
CM3#,KM3#,YM30 |
2 | ||
| 43346 - PROTECTOR, LOWER BALL JOINT DUST COVER | ||||
| 43346-28011 |
CM3#,KM3#,YM30 |
2 | ||
| 43355C - DEFLECTOR, LOWER ARM ICE, RH NO.1 | ||||
| 43355-27030 |
CM3#,KM3#,YM30 |
1 | ||
| 43355-27031 |
CM3#,KM3#,YM30 |
1 | ||
| 43356A - DEFLECTOR, LOWER ARM ICE, LH NO.1 | ||||
| 43356-27020 |
CM3#,KM3#,YM30 |
1 | ||
| 43356-27021 |
CM3#,KM3#,YM30 |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48610-28012 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 |
1 | ||
| 48610-28012 |
CM35,36,KM31,35,36 |
1 | ||
| 48610-28011 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 |
1 | ||
| 48610-28011 |
CM35,36,KM31,35,36 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-28011 |
CM35,36,KM31,35,36 |
1 | ||
| 48630-28011 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 |
1 | ||
| 48630-28012 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 |
1 | ||
| 48630-28012 |
CM35,36,KM31,35,36 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-27050 |
CM3#,KM3#,YM30 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-27050 |
CM3#,KM3#,YM30 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-28010 |
CM3#,KM3#,YM30 |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 91121-71085 |
CM3#,KM3#,YM30 |
4 | ||
| 48167B - TUBE(FOR TORQUE ARM SETTING BOLT) | ||||
| 90440-17029 |
CM3#,KM3#,YM30 |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-27010 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-27010 |
CM3#,4#,KM3#,YM30,40 |
4 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-27060 |
CM3# |
2 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-27060 |
CM3# |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-39015 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 48305-30030 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02048 |
CM35,36,KM31,35,36 RR SIDE |
2 | ||
| 90948-02048 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 RR SIDE |
2 | ||
| 90948-02049 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 FR SIDE |
2 | ||
| 90948-02049 |
CM35,36,KM31,35,36 FR SIDE |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02048 |
CM35,36,KM31,35,36 RR SIDE |
2 | ||
| 90948-02048 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 RR SIDE |
2 | ||
| 90948-02049 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 FR SIDE |
2 | ||
| 90948-02049 |
CM35,36,KM31,35,36 FR SIDE |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-27010 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 FR SIDE |
2 | ||
| 48635-28010 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 RR SIDE |
2 | ||
| 48632-27010 |
CM35,36,KM31,35,36 FR SIDE |
2 | ||
| 48635-28010 |
CM35,36,KM31,35,36 RR SIDE |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-27010 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 FR SIDE |
2 | ||
| 48635-28010 |
CM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7 RR SIDE |
2 | ||
| 48632-27010 |
CM35,36,KM31,35,36 FR SIDE |
2 | ||
| 48635-28010 |
CM35,36,KM31,35,36 RR SIDE |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-27010 |
CM3#,KM3#,YM30 |
2 | ||
| 48061-27011 |
CM3#,KM3#,YM30 |
2 | ||
| Common parts | ||||
| 90101-08039 | ||||
| 90101-12090 | ||||
| 90101-14019 | ||||
| 90170-08015 | ||||
| 90170-10082 | ||||
| 90170-14012 | ||||
| 90171-14042 | ||||
| 90171-16050 | ||||
| 90179-08146 | ||||
| 90201-08016 | ||||
| 90201-12007 | ||||
| 90201-14005 | ||||
| 90252-03005 | ||||
| 90252-03006 | ||||
| 91615-60825 | ||||
| 91651-60820 | ||||
| 94146-71600 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| 94531-01600 | ||||
| 94621-11400 | ||||
| 95381-03030 | ||||
| 95381-03035 | ||||
