CM35V-MDZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

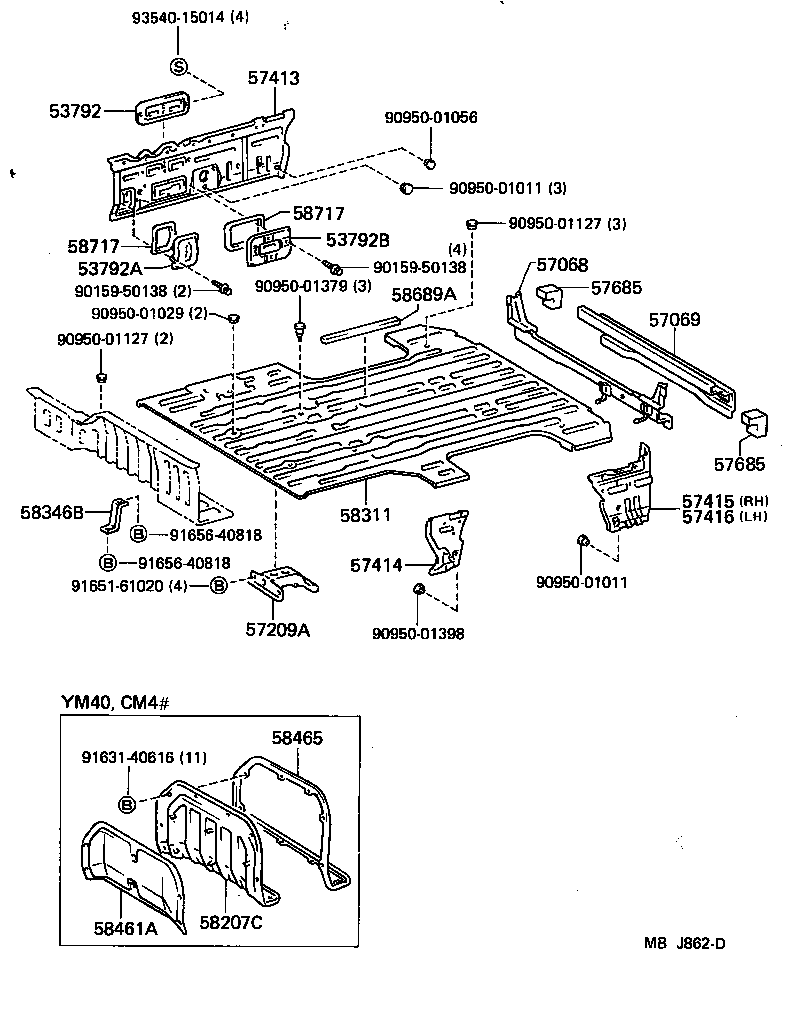

ILLUST NO. 1 OF 2(8509- )V4D ; (8509- )CM30,40,KM30,YM30,40

Click highlighted areas on diagram

diagram 53792 53792A 53792B 57068 57069 57209A 57413 57414 57415 57416 57685 57685 58207C 58311 58346B 58461A 58465 58689A 58717 58717 9015950138 9015950138 9095001011 9095001011 9095001029 9095001056 9095001127 9095001127 9095001379 9095001398 9163140616 9165161020 9165640818 9165640818 9354015014
Part # Description Qty Price
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-95702

CM30,4#,KM30,YM30,40

 1
57068-95700

CM35,36,KM31,35,36..V1

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-95701

CM3#,KM3#,YM30

 1
57069-95700

CM35,36,40,KM31,35,36,YM40

 1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57209-95713

CM30,36;CM35..V1

 1
57209-95705

CM30,36;CM35..V1

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-95730

CM35,36,41,KM31,35,36..V1..V4D

 1
57405-95736

CM35,36,41,KM31,35,36..V1..V4D..(05S,06S)

 1
57405-95737

CM35,36,41,KM31,35,36..V1..V4D..(05S,06S)

W/RR HEATER

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-95718

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM40..DLX,FXV,GXL,SUC,SUP,XL7

 1
57406-95714

CM35,36,41,KM31,35,36..V1..(05S,06S)

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-95705

CM35,36,41,KM35,36..V1;CM30,40,KM30,31,YM40..SUP,SW

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-95705

CM35,36,41,KM35,36..V1;CM30,40,KM30,31,YM40..SUP,SW

 1
57685 - DUST PROOF, REAR FLOOR CROSSMEMBER
57685-95700

CM3#,KM3#,YM30

 2
57685 - DUST PROOF, REAR FLOOR CROSSMEMBER
57685-95700

CM3#,KM3#,YM30

 2
58311 - PAN, REAR FLOOR
58311-95767

CM35,36..V1..V4D..05S

 1
58311-95774

KM31,35,36..V1..V4D..(05S,06S)

 1
58311-95G32

CM35,36,KM31,35,36..V1..V4D..(05S,06S)

 1
58346B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-95700

KM31,35,36..V1

 1
Common parts
90159-50138
90950-01011
90950-01029
90950-01056
90950-01127
90950-01379
90950-01398
91631-40616
91651-61020
91656-40818
93540-15014

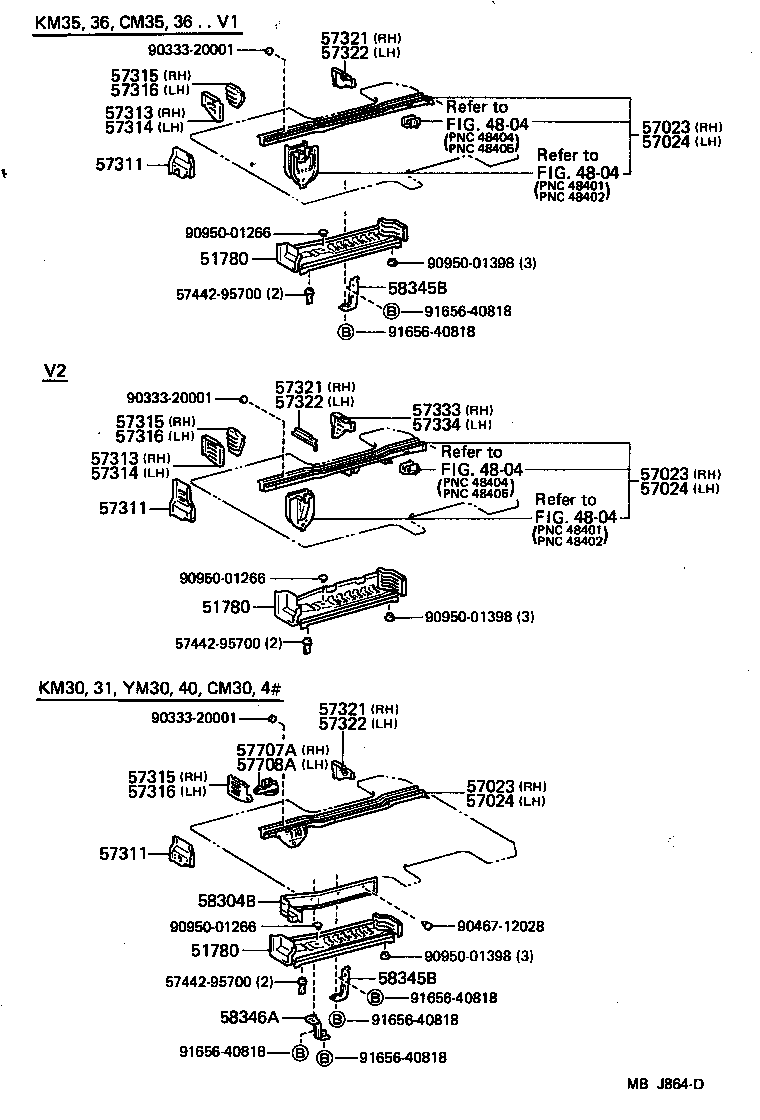

ILLUST NO. 2 OF 2(8509- )V4D ; (8509- )CM30,40,KM30,YM30,40

Click highlighted areas on diagram

diagram 4804 4804 4804 4804 51780 51780 51780 57023 57023 57023 57024 57024 57024 57311 57311 57311 57313 57313 57314 57314 57315 57315 57315 57316 57316 57316 57321 57321 57321 57322 57322 57322 57333 57334 5744295700 5744295700 5744295700 57707A 57708A 58304B 58345B 58345B 58346A 9033320001 9033320001 9033320001 9046712028 9095001266 9095001266 9095001266 9095001398 9095001398 9095001398 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818
Part # Description Qty Price
51780 - STEP ASSY, FRONT, LH
51740-95702

CM35,36,41,KM31,35,36..V1

 1
51780 - STEP ASSY, FRONT, LH
51740-95702

CM35,36,41,KM31,35,36..V1

 1
51780 - STEP ASSY, FRONT, LH
51740-95702

CM35,36,41,KM31,35,36..V1

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM35,36,KM35,36..V1

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM35,36,KM35,36..V1

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM35,36,KM35,36..V1

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM35,36,KM35,36..V1

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM35,36,KM35,36..V1

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM35,36,KM35,36..V1

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM35,36,41,KM31,35,36..V1..V4D

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM35,36,41,KM31,35,36..V1..V4D

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM35,36,41,KM31,35,36..V1..V4D

 1
57313 - OUTRIGGER, NO.2 RH
57315-95703

CM35,36,KM35,36..V1..V4D

 1
57313 - OUTRIGGER, NO.2 RH
57315-95703

CM35,36,KM35,36..V1..V4D

 1
57314 - OUTRIGGER, NO.2 LH
57316-95703

CM35,36,KM35,36..V1

 1
57314 - OUTRIGGER, NO.2 LH
57316-95703

CM35,36,KM35,36..V1

 1
57315 - OUTRIGGER, NO.3 RH
57333-95701

CM35,36,KM35,36..V1

 1
57315 - OUTRIGGER, NO.3 RH
57333-95701

CM35,36,KM35,36..V1

 1
57315 - OUTRIGGER, NO.3 RH
57333-95701

CM35,36,KM35,36..V1

 1
57316 - OUTRIGGER, NO.3 LH
57334-95701

CM35,36,KM35,36..V1

 1
57316 - OUTRIGGER, NO.3 LH
57334-95701

CM35,36,KM35,36..V1

 1
57316 - OUTRIGGER, NO.3 LH
57334-95701

CM35,36,KM35,36..V1

 1
57321 - OUTRIGGER, NO.4 RH
57307-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57321 - OUTRIGGER, NO.4 RH
57307-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57321 - OUTRIGGER, NO.4 RH
57307-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57322 - OUTRIGGER, NO.4 LH
57308-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57322 - OUTRIGGER, NO.4 LH
57308-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
57322 - OUTRIGGER, NO.4 LH
57308-95701

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM31,35,36..V1

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM31,35,36..V1

 1
Common parts
57442-95700
90333-20001
90467-12028
90950-01266
90950-01398
91656-40818
Linked diagrams
4804
