CM35V-MDZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )1C,2C

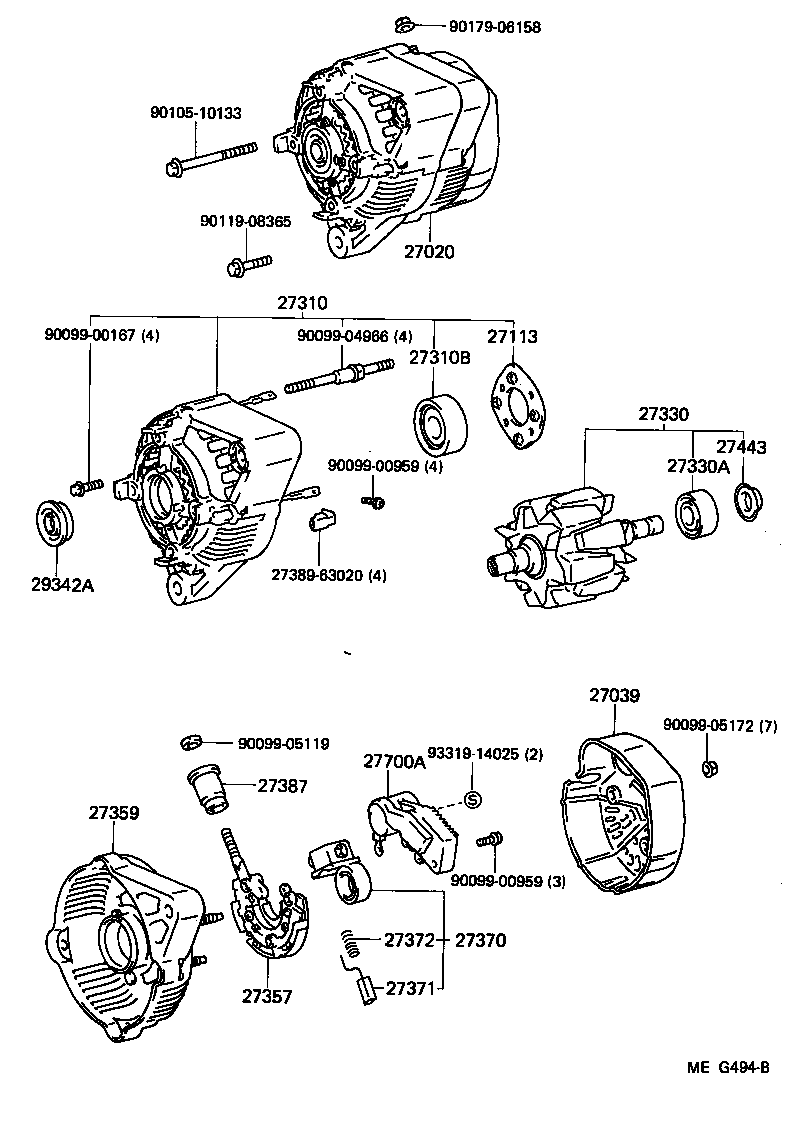

Click highlighted areas on diagram

12V 55A,70A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 27387 2738963020 27443 27700A 29342A 9009900167 9009900959 9009900959 9009904966 9009905119 9009905172 9010510133 9011908365 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-64020

1C,2C..CM35,36,41

12V 55A,12V 55A

 1
27060-64021

1C,2C..CM35,36,41

12V 55A,12V 55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72110

1C,2C..CM35,36,41

12V 55A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-64130

1C,2C#..CM3#,4#

12V 55A,70A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64140

1C,2C..CM35,36,41

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165

1C,2C#..CM3#,4#

12V 55A,70A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64140

1C,2C..CM35,36,41

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1C,2C#,2YU,3YU..CM3#,4#,YM30,40

12V 55A,60A,70A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63040

1C,2C..CM35,36,41

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-64140

1C,2C..CM35,36,41

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011

1C,2C#..CM3#,4#

12V 55A,70A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1C,2C#,2YU,3YU..CM3#,4#,YM30,40

12V 55A,60A,70A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

1C,2C#,2YU,3YU..CM3#,4#,YM30,40

12V 55A,60A,70A

 2
27387 - INSULATOR, TERMINAL
27387-63020

1C,2C#,2YU,3YU..CM3#,4#,YM30,40

12V 55A,60A,70A

 1
27387-63020

1C,2C#..CM3#,4#

12V 55A,70A

 1
27387-70170

1C,2C#,2YU,3YU..CM3#,4#,YM30,40

12V 55A,60A,70A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1C,2C#,2YU,3YU..CM3#,4#,YM30,40

12V 55A,60A,70A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

1C,2C..CM3#,41

 1
29342A - PACKING, VACUUM PUMP
29341-64130

1C,2C#..CM3#,4#

12V 55A,70A

 1
Common parts
27389-63020
90099-00167
90099-00959
90099-04966
90099-05119
90099-05172
90105-10133
90119-08365
90179-06158
93319-14025
