CM35V-MDZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )1C,2C#

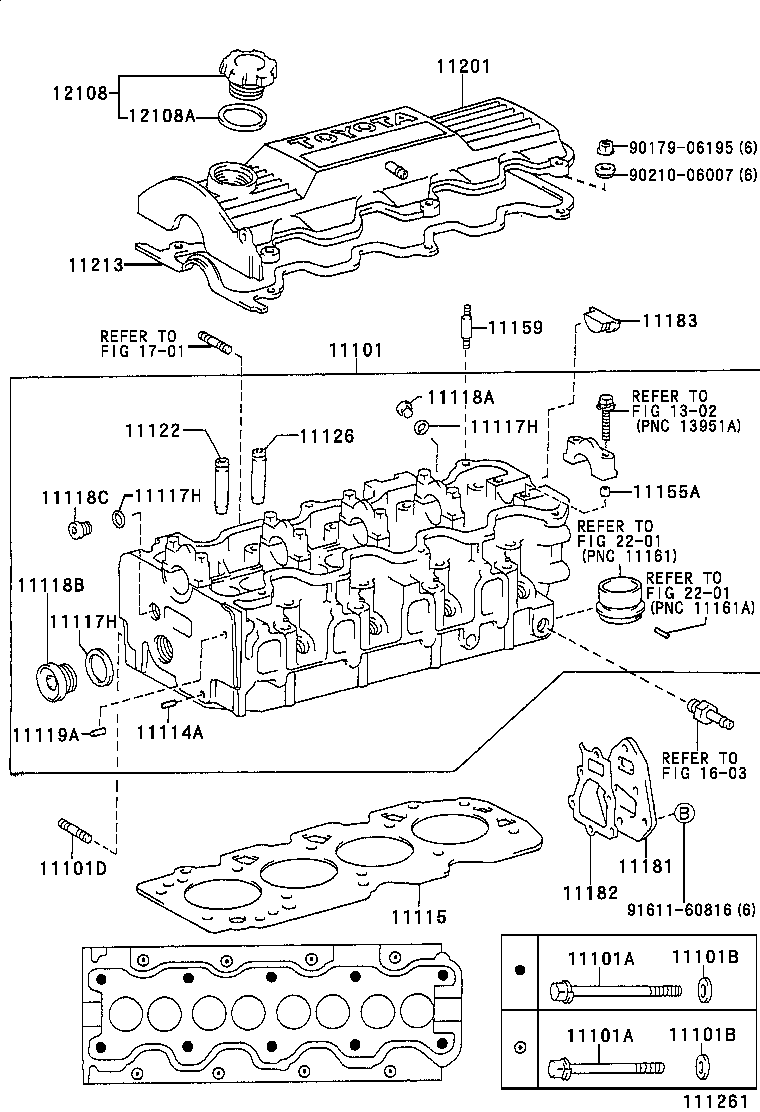

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11101D 11114A 11115 11117H 11117H 11117H 11118A 11118B 11118C 11119A 11122 11126 11155A 11159 11181 11182 11183 11201 11213 12108 12108A 1302 1603 1701 2201 2201 9017906195 9021006007 9161160816
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64060

1C..CM35

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-11019

1C,2C#..CM3#,4#

*11-1.25PX145-51.5

 10
90105-11018

1C,2C#..CM3#,4#

*11-1.25PX123-51.5

 8
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-11019

1C,2C#..CM3#,4#

*11-1.25PX145-51.5

 10
90105-11018

1C,2C#..CM3#,4#

*11-1.25PX123-51.5

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

1C,2C#..CM3#,4#

 18
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

1C,2C#..CM3#,4#

 18
11101D - BOLT, STUD(FOR WATER OUTLET)
92122-60820

1C,2C#..CM3#,4#

 3
11114A - PIN, STRAIGHT
90250-06068

1C,2C#..CM3#,4#

長さ=11,外径=6

 1
11115 - GASKET, CYLINDER HEAD
11115-64070

1C..CM35

 1
11117H - GASKET(FOR WATER HOLE)
90430-10204

1C,2C#..CM3#,4#

PNC 11118A

 4
90430-12010

1C,2C#..CM3#,4#

PNC 11118C

 2
90430-33133

1C,2C#..CM3#,4#

PNC 11118B

 1
11117H - GASKET(FOR WATER HOLE)
90430-10204

1C,2C#..CM3#,4#

PNC 11118A

 4
90430-12010

1C,2C#..CM3#,4#

PNC 11118C

 2
90430-33133

1C,2C#..CM3#,4#

PNC 11118B

 1
11117H - GASKET(FOR WATER HOLE)
90430-10204

1C,2C#..CM3#,4#

PNC 11118A

 4
90430-12010

1C,2C#..CM3#,4#

PNC 11118C

 2
90430-33133

1C,2C#..CM3#,4#

PNC 11118B

 1
11118A - PLUG, STRAIGHT, NO.1
90341-10005

1C,2C#..CM3#,4#

 4
11118B - PLUG, STRAIGHT, NO.2
90341-32070

1C,2C#..CM3#,4#

 1
11118C - PLUG, STRAIGHT, NO.3
90341-12002

1C,2C#..CM3#,4#

 2
90341-12013

1C,2C#..CM3#,4#

 2
11119A - PIN, STRAIGHT, NO.1
90250-06068

1C,2C#..CM3#,4#

長さ=11,外径=6

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-64010

1C,2C#..CM3#,4#

STD,STD

 4
11123-64010

1C,2C#..CM3#,4#

O/S 0.05,O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-64010

1C,2C#..CM3#,4#

O/S 0.05,O/S 0.05

 4
11126-64010

1C,2C#..CM3#,4#

STD,STD

 4
11155A - PIN, RING W/HEAD
90253-11021

1C,2C#..CM3#,4#

 10
11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-06023

1C,2C#..CM3#,4#

 6
11181 - PLATE, CYLINDER HEAD, REAR
11181-64010

1C,2C#..CM3#,4#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-64010

1C,2C#..CM3#,4#

 1
11183 - PLUG, SEMICIRCULAR
11183-64010

1C,2C#..CM3#,4#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64060

1C,2C#..CM3#,4#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-64020

1C,2C#..CM3#,4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

1C,2C#..CM3#,4#

 1
12180-13030

1C,2C#..CM3#,4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1C,2C#..CM3#,4#

 1
Common parts
90179-06195
90210-06007
91611-60816
Linked diagrams
1302
1603
1701
2201
