CM35V-MDSET (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )1C,2C#

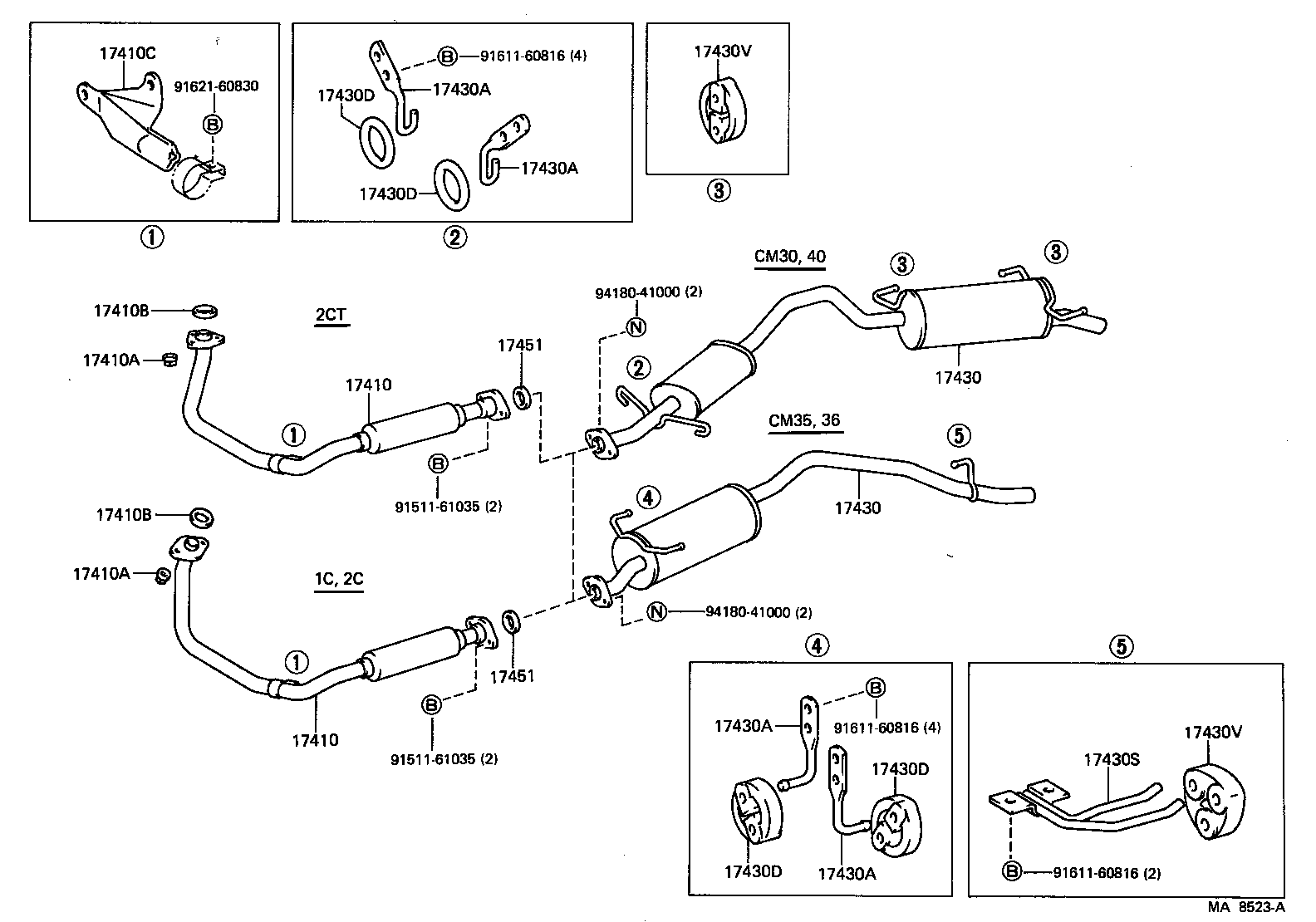

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17430 17430 17430A 17430A 17430A 17430A 17430D 17430D 17430D 17430D 17430S 17430V 17430V 17451 17451 9151161035 9151161035 9161160816 9161160816 9161160816 9162160830 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64140

1C,2C..CM30,35

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64140

1C,2C..CM30,35

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1C,2C#,4KJ,5K#,2YU,3YU..CM3#,4#,KM3#,YM30,40

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1C,2C#,4KJ,5K#,2YU,3YU..CM3#,4#,KM3#,YM30,40

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

1C,2C,4KJ,5K#..CM3#,41,KM3#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

1C,2C,4KJ,5K#..CM3#,41,KM3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64090

1C,2C#..CM3#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64300

1C..CM35..MRF

 1
17430-64301

1C..CM35..MRF

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64300

1C..CM35..MRF

 1
17430-64301

1C..CM35..MRF

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-13060

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-13060

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-13060

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-13060

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-13060

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-64060

1C,2C..CM35,36

 1
17565-64060

1C..CM35

 1
17565-13030

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-64060

1C,2C..CM35,36

 1
17565-64060

1C..CM35

 1
17565-13030

1C,2C,4KJ,5KJ..CM35,36,KM31,35,36

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

1C,2C,4KJ,5KJ..CM3#,41,KM31,35,36

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

1C,2C,4KJ,5KJ..CM3#,41,KM31,35,36

 1
Common parts
91511-61035
91611-60816
91621-60830
94180-41000
