Toyota Liteace van,wagon CM35 WIRING & CLAMP

CM35V-MDFE (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988

Engine 1C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

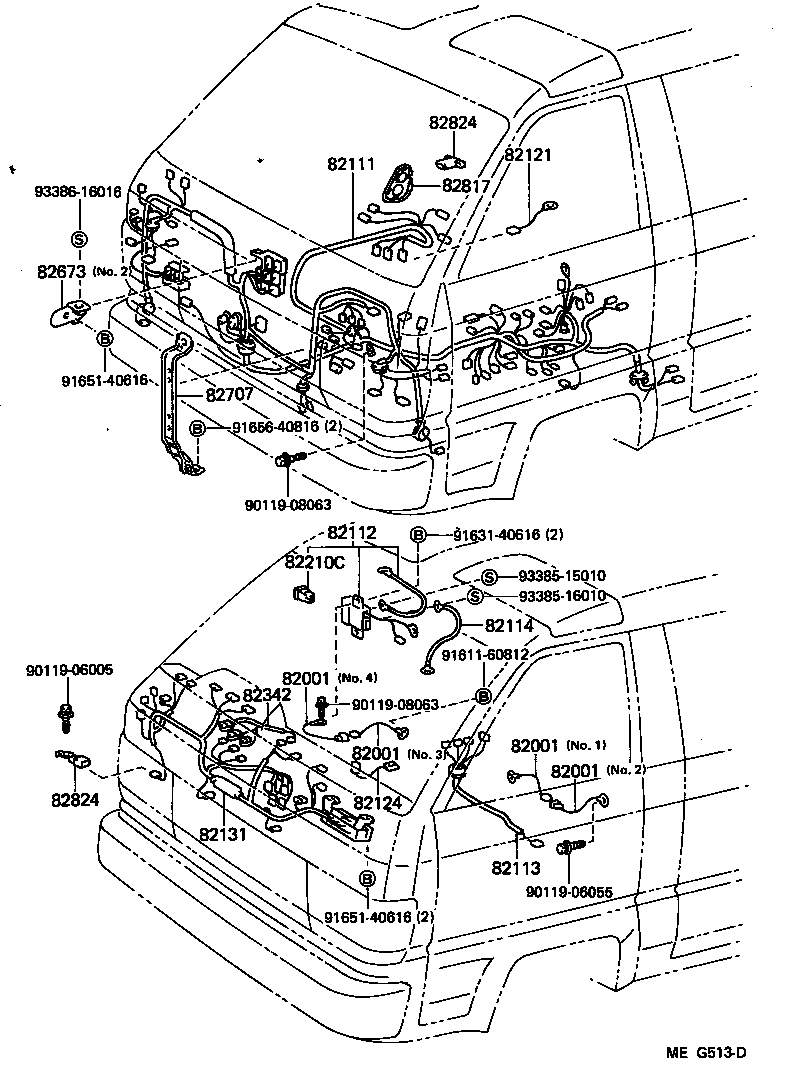

ILLUST NO. 1 OF 3(8509- )CM3#,4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07206	CM3#,4#,YM30,40 NO.2	09/1985 - 02/1986	1
90980-07228	CM3#,4#,YM30,40 NO.1	09/1985 - 02/1986	1
90980-07259	CM3#,4# NO.3	09/1985 - 08/1988	1
90980-07275	CM3#,4#,YM30,40 NO.2	02/1986 - 08/1988	1
90980-07276	CM3#,4#,YM30,40 NO.1	02/1986 - 08/1988	1
90980-07258	CM3#,4# NO.4	09/1985 - 08/1988	1
82001 - CABLE, BOND, NO.1
90980-07206	CM3#,4#,YM30,40 NO.2	09/1985 - 02/1986	1
90980-07228	CM3#,4#,YM30,40 NO.1	09/1985 - 02/1986	1
90980-07259	CM3#,4# NO.3	09/1985 - 08/1988	1
90980-07275	CM3#,4#,YM30,40 NO.2	02/1986 - 08/1988	1
90980-07276	CM3#,4#,YM30,40 NO.1	02/1986 - 08/1988	1
90980-07258	CM3#,4# NO.4	09/1985 - 08/1988	1
82001 - CABLE, BOND, NO.1
90980-07206	CM3#,4#,YM30,40 NO.2	09/1985 - 02/1986	1
90980-07228	CM3#,4#,YM30,40 NO.1	09/1985 - 02/1986	1
90980-07259	CM3#,4# NO.3	09/1985 - 08/1988	1
90980-07275	CM3#,4#,YM30,40 NO.2	02/1986 - 08/1988	1
90980-07276	CM3#,4#,YM30,40 NO.1	02/1986 - 08/1988	1
90980-07258	CM3#,4# NO.4	09/1985 - 08/1988	1
82001 - CABLE, BOND, NO.1
90980-07206	CM3#,4#,YM30,40 NO.2	09/1985 - 02/1986	1
90980-07228	CM3#,4#,YM30,40 NO.1	09/1985 - 02/1986	1
90980-07259	CM3#,4# NO.3	09/1985 - 08/1988	1
90980-07275	CM3#,4#,YM30,40 NO.2	02/1986 - 08/1988	1
90980-07276	CM3#,4#,YM30,40 NO.1	02/1986 - 08/1988	1
90980-07258	CM3#,4# NO.4	09/1985 - 08/1988	1
82111 - WIRE, ENGINE ROOM MAIN
82111-95754	CM35,36,41 W/RWD,EL,RW OR REH	09/1985 - 08/1986	1
82111-95753	CM35,36,41	09/1985 - 08/1986	1
82111-95G35	CM35,36,41 W/RWD,EL,RW OR REH	08/1986 - 08/1987	1
82111-95G34	CM35,36,41	08/1986 - 08/1987	1
82115-95705	CM35,36,41	08/1987 - 08/1988	1
82115-95709	CM35,36,41 W/RWD,EL,RW OR REH	08/1987 - 08/1988	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-95704	CM35,36,41	09/1985 - 08/1988	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-95701	CM35,36,41	09/1985 - 07/1986	1
82114-95703	CM35,36,41	07/1986 - 09/1986	1
82114-95705	CM35,36,41	09/1986 - 08/1988	1
82121 - WIRE, ENGINE
82121-95702	CM3#,41..DSL	08/1987 - 08/1988	1
82121-95700	KM31,35,36	09/1985 - 08/1988	1
82124 - WIRE, ENGINE, NO.4
82124-95702	KM31,35,36	09/1985 - 08/1988	1
82124-95703	CM3#,4#	09/1985 - 08/1988	1
82131 - WIRE, COWL
82131-95706	CM35,41	09/1985 - 08/1986	1
82131-95707	CM35,41 W/FH,RWD,EL,RW OR *REH	09/1985 - 08/1986	1
82131-95766	CM35,41 W/FH,RWD,EL,RW OR *REH	08/1986 - 08/1987	1
82131-95765	CM35,41	08/1986 - 08/1987	1
82131-95G34	CM35,41	08/1987 - 08/1988	1
82131-95G35	CM35,41 W/FH,RWD,EL,RW OR *REH	08/1987 - 08/1988	1
82210C - FUSIBLE LINK
90982-08188	CM3#,4#,KM3#,YM30,40 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A	09/1985 - 08/1988	1
90982-08189	CM3#,4#,KM3#,YM30,40 40A,ﾒｽ端子,緑,40A	09/1985 - 08/1988	1
90982-08202	CM35,36,41,KM3# 60A,ｵｽ端子,黄,60A	09/1985 - 08/1988	1
90982-08203	CM3#,4#,YM30,40 80A,ｵｽ端子,黒,80A	09/1985 - 08/1988	1
82342 - WIRE, CLOCK
82304-95700	CM3#,41,KM30,35,36..DLX,SW	09/1985 - 08/1987	1
82304-95701	CM3#,41,KM30,35,36..DLX,SW	08/1987 - 08/1988	1
82707 - SUPPORT SUB-ASSY, WIRING HARNESS
82701-95700	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-95703	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	1
82824 - CONNECTOR, WIRING HARNESS
82824-12100	CM3#,4#,KM3#,YM30,40 COWL WIRE	09/1985 - 08/1988	1
82824-12110	CM35,41 ENGINE ROOM MAIN WIRE	09/1985 - 08/1988	1
82824 - CONNECTOR, WIRING HARNESS
82824-12100	CM3#,4#,KM3#,YM30,40 COWL WIRE	09/1985 - 08/1988	1
82824-12110	CM35,41 ENGINE ROOM MAIN WIRE	09/1985 - 08/1988	1
Common parts
90119-06005
90119-06055
90119-08063
91611-60812
91631-40616
91651-40616
91656-40816
93385-15010
93385-16010
93386-16016

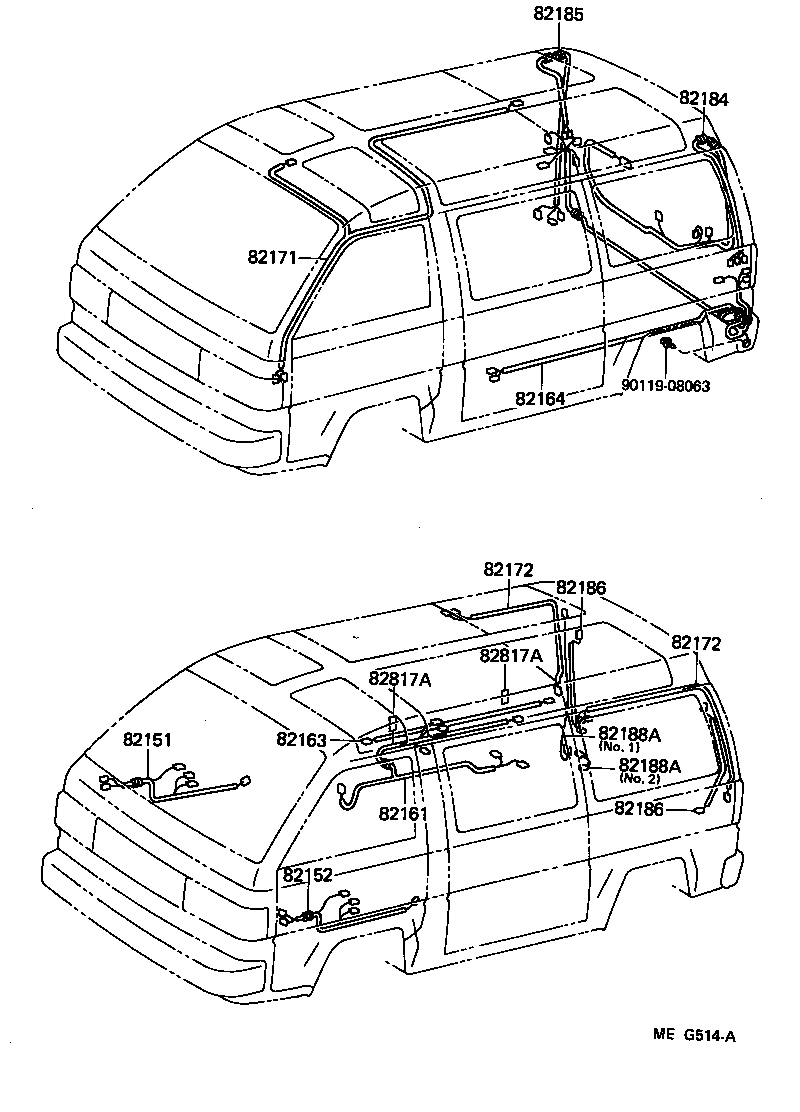

ILLUST NO. 2 OF 3(8509- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
86238-95706	CM3#,4#,KM3#,YM30,40 W/O *PW,W/2 OR 4 SPEAKERS(TEN)	09/1985 - 08/1988	1
82152 - WIRE, FRONT DOOR, LH
86238-95706	CM3#,4#,KM3#,YM30,40 W/O *PW,W/2 OR 4SPEAKERS(TEN)	09/1985 - 08/1988	1
82161 - WIRE, FLOOR
82161-95706	CM35,KM31,35..V1..V5D	09/1985 - 08/1988	1
82163 - WIRE, FLOOR, NO.3
82163-95700	CM35,41,KM31,35,36..V5D	12/1985 - 08/1988	1
82164 - WIRE, FRAME
82164-95707	CM35,36,41,KM35,36..V1 W/RW,RWD & RW,EL & *RW	09/1985 - 01/1987	1
82164-95705	CM35,36,41,KM35,36..V1..VSG W/O *RW	09/1985 - 12/1985	1
82164-95706	CM35,36,41,KM35,36..V1 W/O RW,W/RWD OR *EL	09/1985 - 01/1987	1
82164-95705	CM35,36,41,KM35,36..V1 W/O *RW	12/1985 - 01/1987	1
82164-95729	CM35,36,41,KM35,36..V1 W/O *RW	01/1987 - 08/1987	1
82164-95744	CM35,36,41,KM35,36..V1 W/O RW,W/RWD OR *EL	08/1987 - 08/1988	1
82164-95725	CM35,36,41,KM35,36..V1 W/O RW,W/RWD OR *EL	01/1987 - 08/1987	1
82164-95748	CM35,36,41,KM35,36..V1 W/O *RW	08/1987 - 08/1988	1
82164-95750	CM35,36,41,KM35,36..V1 W/RW,RWD & RW,EL & *RW	08/1987 - 08/1988	1
82164-95731	CM35,36,41,KM35,36..V1 W/RW,RWD & RW,EL & *RW	01/1987 - 08/1987	1
82171 - WIRE, ROOF, NO.1
82171-95701	CM35,41,KM35,36..02S,03S	09/1985 - 12/1985	1
82171-95700	CM35,36,KM31,35,36..SRF	12/1985 - 08/1988	1
82184 - WIRE, BACK DOOR, NO.1
82184-95703	CM35,36,KM35,36..SRF W/EL,W/EL & *RWD	09/1985 - 08/1988	1
82184-95701	CM3#,KM3#..SRF W/RW,W/RW & *RWD	09/1985 - 08/1986	1
82184-95705	CM3#,KM30,35,36..SRF W/*RWD	09/1985 - 08/1988	1
82184-95700	CM35,36,41,KM31,35,36..SRF W/RW & EL,W/RW,EL & *RWD	09/1985 - 08/1988	1
82184-95704	CM35,36,KM35,36..SRF	09/1985 - 08/1988	1
82184-95701	CM3#,KM30,35,36..SRF W/RW,W/RW & *RWD	08/1986 - 08/1988	1
82186 - WIRE, REAR WINDOW, NO.1
82186-95702	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	2
82186 - WIRE, REAR WINDOW, NO.1
82186-95702	CM3#,4#,KM3#,YM30,40	09/1985 - 08/1988	2
Common parts
90119-08063

ILLUST NO. 3 OF 3(8509- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12450
82711-14560
82711-14620
82711-22270
82711-24010
82711-24070
82711-30130
82711-95413
82711-95709
82711-95710
82711-95711
82711-95712
82711-95714
82711-95715
82711-95717
82711-95718
82711-95J04

ILLUST NO. 3 OF 3(8509- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82819-95J02
90461-04009
90461-06064
90461-06156
90461-06804
90461-08312
90461-10526
90463-04012
90463-04035
90463-15003
90464-00052
90464-00137
90464-00162
90464-00165
90467-09040
