CM35V-MDF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

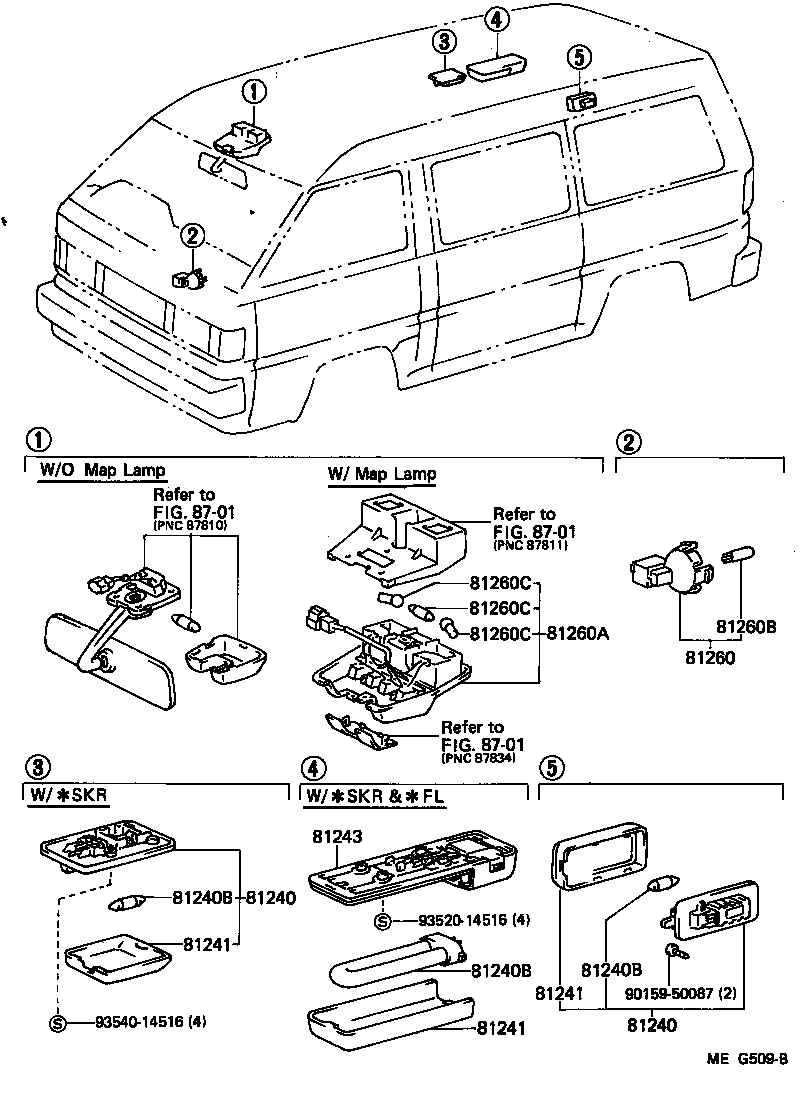

Click highlighted areas on diagram

diagram 81240 81240 81240B 81240B 81240B 81241 81241 81241 81243 81260 81260A 81260B 81260C 81260C 81260C 8701 8701 8701 9015950087 9352014516 9354014516
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-9570803

CM35,36,41,KM31,35,36..05S,06S

GRAY,GRAY,TRIM8#

 1
81240-9570805

CM35,36,41,KM31,35,36

BEIGE,BEIGE,TRIM4#

 1
81240-9570803

CM35,36,41,KM31,35,36

GRAY,GRAY,TRIM8#

 1
81240-9570805

CM35,36,41,KM31,35,36..05S,06S

BEIGE,BEIGE,TRIM4#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-9570803

CM35,36,41,KM31,35,36..05S,06S

GRAY,GRAY,TRIM8#

 1
81240-9570805

CM35,36,41,KM31,35,36

BEIGE,BEIGE,TRIM4#

 1
81240-9570803

CM35,36,41,KM31,35,36

GRAY,GRAY,TRIM8#

 1
81240-9570805

CM35,36,41,KM31,35,36..05S,06S

BEIGE,BEIGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

CM35,36,41,KM31,35,36

12V 10W,12V 10W

 1
90981-11004

CM35,36,41,KM31,35,36..05S,06S

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

CM35,36,41,KM31,35,36

12V 10W,12V 10W

 1
90981-11004

CM35,36,41,KM31,35,36..05S,06S

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

CM35,36,41,KM31,35,36

12V 10W,12V 10W

 1
90981-11004

CM35,36,41,KM31,35,36..05S,06S

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

CM35,36,41,KM31,35,36..05S,06S

 1
81241-95013

CM35,36,41,KM31,35,36

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

CM35,36,41,KM31,35,36..05S,06S

 1
81241-95013

CM35,36,41,KM31,35,36

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

CM35,36,41,KM31,35,36..05S,06S

 1
81241-95013

CM35,36,41,KM31,35,36

 1
Common parts
90159-50087
93520-14516
93540-14516
Linked diagrams
8701
