CM35V-MDF (1985)
Toyota Liteace Van,Wagon
(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-95758 |
CM3#,41,KM3#..SRF W/RR WIPER |
1 | ||
| 67005-95756 |
CM35,36,41,KM35,36..SRF W/RR UNDER MIRROR & RR WIPER |
1 | ||
| 67005-95764 |
CM35,36,41,KM35,36..SRF W/RR UNDER MIRROR |
1 | ||
| 67005-95766 |
CM3#,41,KM3#..SRF |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-9570906 |
CM35,36,41,KM35,36..VSG..DLX BROWN,BROWN,TRIM4# |
1 | ||
| 67750-9571004 |
CM35,36,41,KM31,35,36..VSG W/RR WIPER,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67750-9570904 |
CM35,36,41,KM35,36..VSG..DLX BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67750-9571006 |
CM35,36,41,KM31,35,36..VSG W/RR WIPER,BROWN,BROWN,TRIM4# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-9570906 |
CM35,36,41,KM35,36..VSG..DLX BROWN,BROWN,TRIM4# |
1 | ||
| 67750-9571004 |
CM35,36,41,KM31,35,36..VSG W/RR WIPER,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67750-9570904 |
CM35,36,41,KM35,36..VSG..DLX BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67750-9571006 |
CM35,36,41,KM31,35,36..VSG W/RR WIPER,BROWN,BROWN,TRIM4# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-9570906 |
CM35,36,41,KM35,36..VSG..DLX BROWN,BROWN,TRIM4# |
1 | ||
| 67750-9571004 |
CM35,36,41,KM31,35,36..VSG W/RR WIPER,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67750-9570904 |
CM35,36,41,KM35,36..VSG..DLX BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67750-9571006 |
CM35,36,41,KM31,35,36..VSG W/RR WIPER,BROWN,BROWN,TRIM4# |
1 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95700 |
CM3#,4#,KM3#,YM30,40 W/RR WIPER |
1 | ||
| 67847-95701 |
CM3#,4#,KM30,35,36,YM40..DLX,SCA,SW,XL7 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-95702 |
CM3#,41,KM3#..SRF |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-95714 |
CM35,36,41,KM35,36..SRF *TEM,厚さ=4.0,*TEM,T=4.0 |
1 | ||
| 68131-95712 |
CM3#,KM3#..SRF *EHT,厚さ=4.0,*EHT,T=4.0 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95706 |
CM3#,41,KM3#..SRF |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95706 |
CM3#,41,KM3#..SRF |
1 | ||
| Common parts | ||||
| 67499-10010 | ||||
| 67771-22010 | ||||
| 67771-30060 | ||||
| 90189-05021 | ||||
| 90189-06029 | ||||
| 90950-01027 | ||||
| 90950-01108 | ||||
| 93560-14012 | ||||
| 93560-16020 | ||||

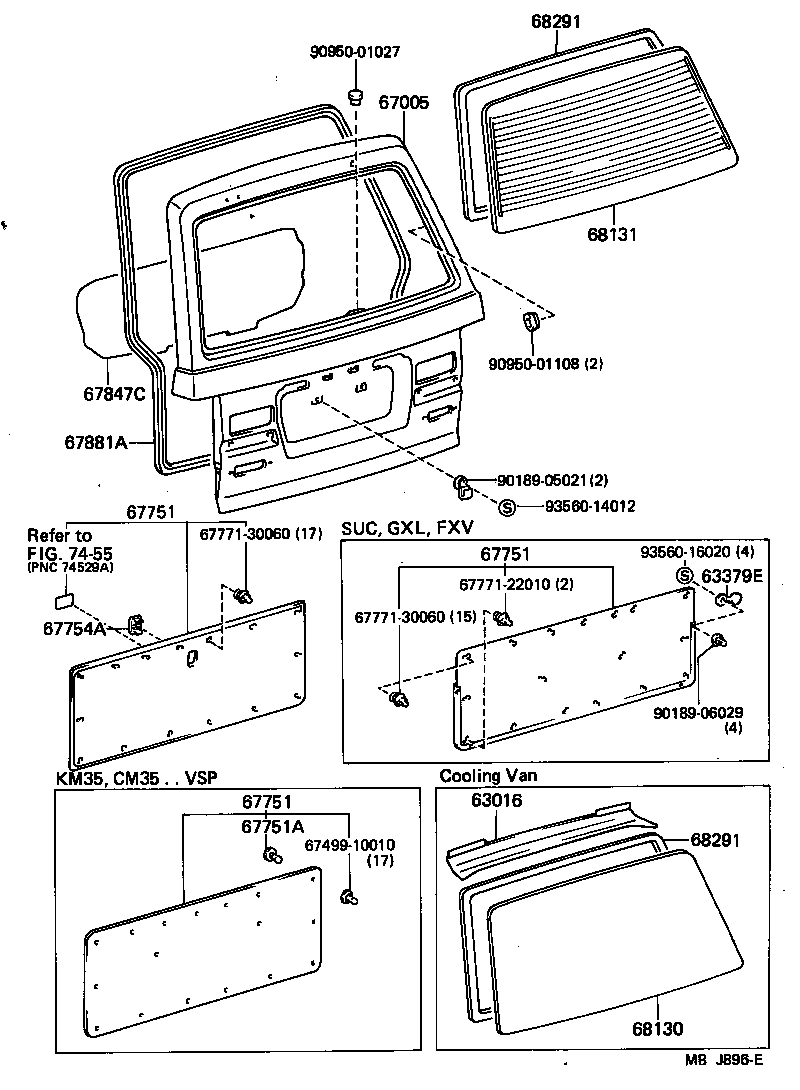

| Linked diagrams | ||||
| 7455 | ||||
