CM35V-MDF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

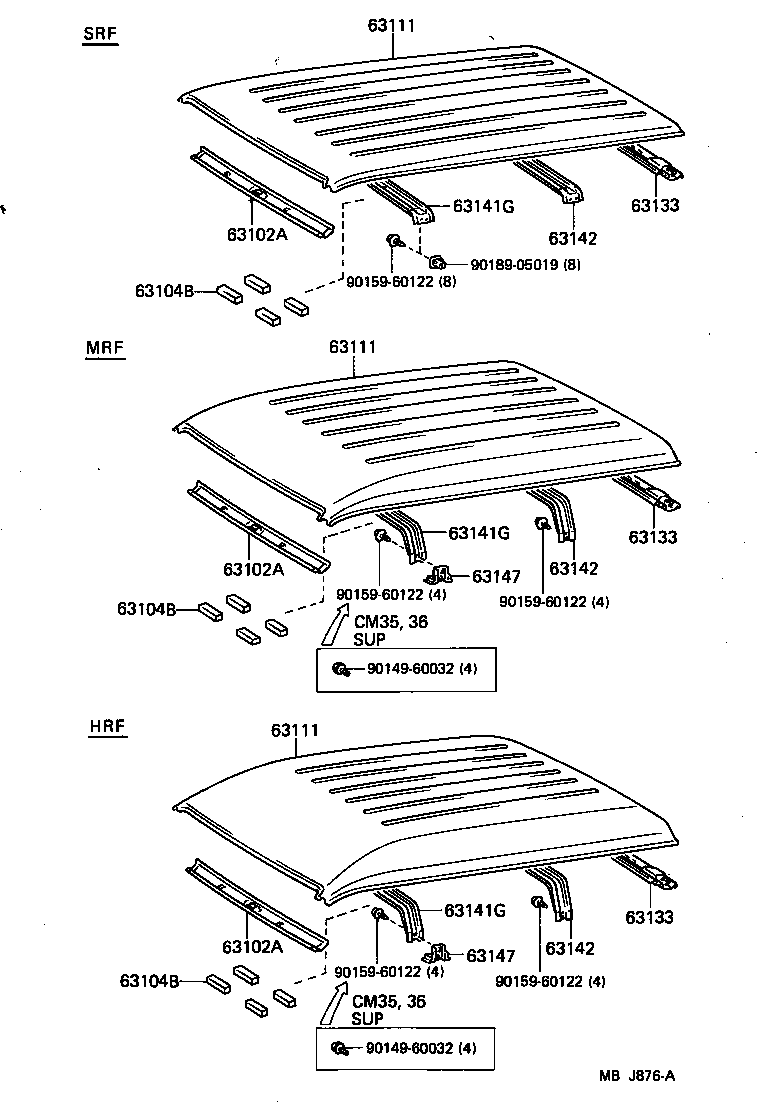

Click highlighted areas on diagram

diagram 63102A 63102A 63102A 63104B 63104B 63104B 63111 63111 63111 63133 63133 63133 63141G 63141G 63141G 63142 63142 63142 63147 63147 9014960032 9014960032 9015960122 9015960122 9015960122 9015960122 9015960122 9018905019
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63147-95A00

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 4
63357-95701

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 4
63357-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 6
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63147-95A00

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 4
63357-95701

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 4
63357-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 6
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63147-95A00

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 4
63357-95701

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 4
63357-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 6
63111 - PANEL, ROOF
63111-95710

CM3#,41,KM3#..SRF

 1
63111 - PANEL, ROOF
63111-95710

CM3#,41,KM3#..SRF

 1
63111 - PANEL, ROOF
63111-95710

CM3#,41,KM3#..SRF

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63071-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63071-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63071-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95710

CM35,36,41,KM31..SRF

COLD SPEC

 1
63103-95711

CM35,36,41,KM31..SRF

 1
63142-95703

CM30,KM30,35,36..SRF

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95710

CM35,36,41,KM31..SRF

COLD SPEC

 1
63103-95711

CM35,36,41,KM31..SRF

 1
63142-95703

CM30,KM30,35,36..SRF

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95710

CM35,36,41,KM31..SRF

COLD SPEC

 1
63103-95711

CM35,36,41,KM31..SRF

 1
63142-95703

CM30,KM30,35,36..SRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95703

CM3#,41,KM3#..SRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95703

CM3#,41,KM3#..SRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95703

CM3#,41,KM3#..SRF

 1
Common parts
90149-60032
90159-60122
90189-05019

(8509- )

Click highlighted areas on diagram

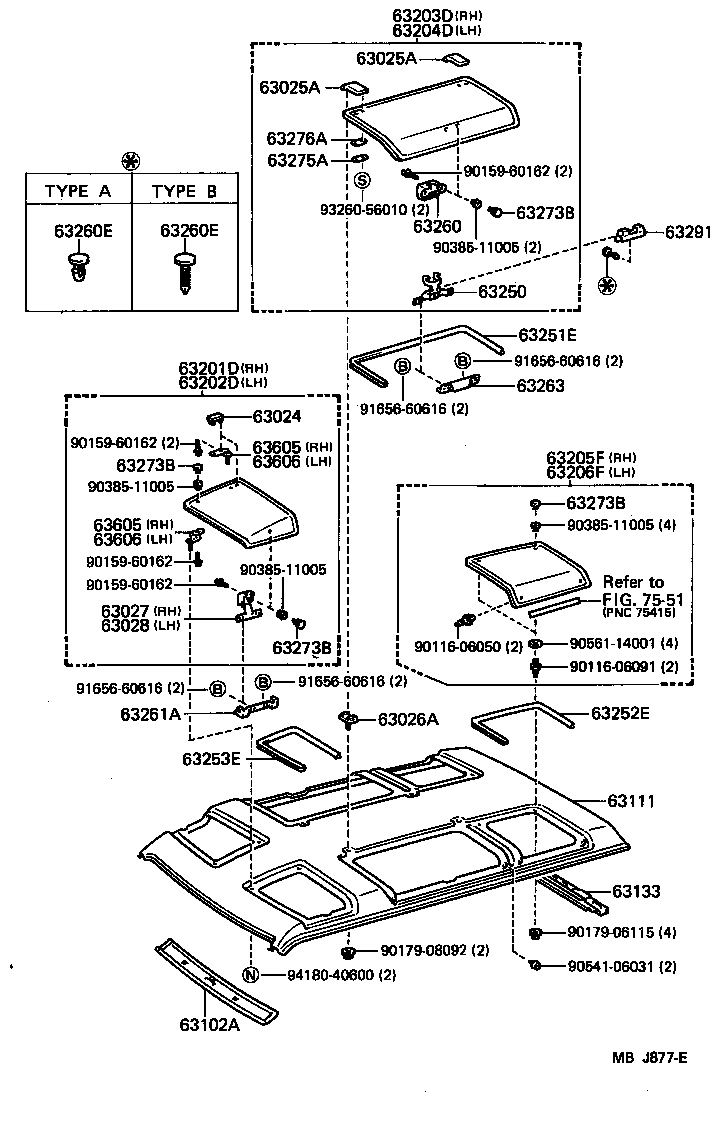

SKYLITE ROOF

diagram 63024 63025A 63025A 63026A 63027 63028 63102A 63111 63133 63201D 63202D 63203D 63204D 63205F 63206F 63250 63251E 63252E 63253E 63260 63260E 63260E 63261A 63263 63273B 63273B 63273B 63273B 63275A 63276A 63291 63605 63605 63606 63606 7551 9011606050 9011606091 9015960162 9015960162 9015960162 9015960162 9017906115 9017908092 9038511005 9038511005 9038511005 9038511005 9054106031 9056114001 9165660616 9165660616 9165660616 9165660616 9326056010 9418040600
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
63111 - PANEL, ROOF
63111-95710

CM3#,41,KM3#..SRF

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63071-95700

CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7

 1
Common parts
90116-06050
90116-06091
90159-60162
90179-06115
90179-08092
90385-11005
90541-06031
90561-14001
91656-60616
93260-56010
94180-40600
Linked diagrams
7551
