CM35V-MDF (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

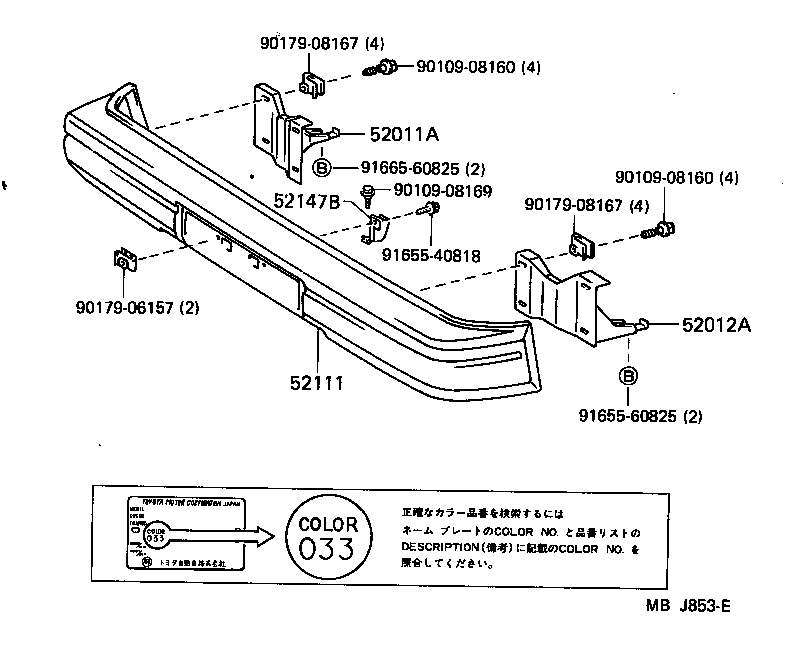

Click highlighted areas on diagram

diagram 52011A 52012A 52111 52147B 9010908160 9010908160 9010908169 9017906157 9017908167 9017908167 9165540818 9165560825 9166560825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-95701

CM3#,4#,KM3#,YM30,40

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-95701

CM3#,4#,KM3#,YM30,40

 1
52111 - BUMPER ASSY, FRONT
52111-95715

CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-95702

CM3#,4#,KM3#,YM30,40

 1
Common parts
90109-08160
90109-08169
90179-06157
90179-08167
91655-40818
91655-60825
91665-60825
