CM35V-MDBE (1985)
Toyota Liteace Van,Wagon

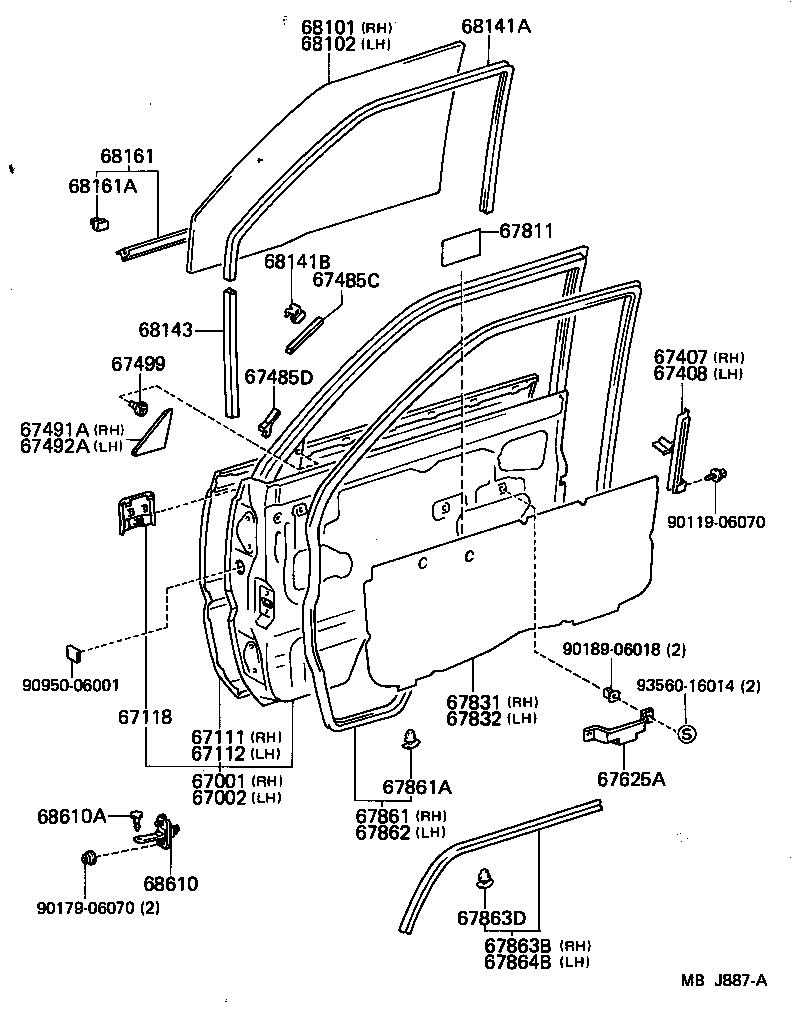

ILLUST NO. 1 OF 2(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95730 |
CM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 67001-95735 |
CM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95738 |
CM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 67002-95730 |
CM3#,4#,KM30,31,36,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-95716 |
CM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-95712 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 67118 - RETAINER, OUTER MIRROR | ||||
| 67118-95700 |
CM3#,4#,KM3#,YM30,40 RH |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 67485C - SEAL, FRONT DOOR BRACKET, NO.1 | ||||
| 67485-95J01 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 67485D - SEAL, FRONT DOOR BRACKET, NO.2 | ||||
| 67485-95700 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 67485-95701 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95700 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95700 |
CM3#,4#,KM30,31,36,YM30,40 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67772-95J01 |
CM3#,4#,KM30,31,36,YM30,40 |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-95700 |
CM3#,4#,KM3#,YM30,40 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95703 |
CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-95703 |
CM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-95705 |
CM35,36,41,KM31,35,36 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-89103 |
CM3#,4#,KM3#,YM30,40 LH |
1 | ||
| 67868-89101 |
CM3#,4#,KM3#,YM30,40 RH |
1 | ||
| 67868-95700 |
CM3#,4#,KM3#,YM30,40 LH |
1 | ||
| 67867-95700 |
CM3#,4#,KM3#,YM30,40 RH |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95705 |
CM35,36,41,KM31,35,36 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-89103 |
CM3#,4#,KM3#,YM30,40 LH |
1 | ||
| 67867-95700 |
CM3#,4#,KM3#,YM30,40 RH |
1 | ||
| 67868-95700 |
CM3#,4#,KM3#,YM30,40 LH |
1 | ||
| 67868-89101 |
CM3#,4#,KM3#,YM30,40 RH |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-95700 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-95705 |
CM3#,4#,KM30,35,36,YM40..DLX,SW *TEM,厚さ=4.0,*TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-95705 |
CM3#,4#,KM30,35,36,YM40..DLX,SW *TEM,厚さ=4.0,*TEM,T=4.0 |
1 | ||
| 68141A - RUN, FRONT DOOR GLASS, UPPER | ||||
| 68141-95706 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 68141B - CLIP, DOOR GLASS RUN | ||||
| 62367-10010 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-95704 |
CM3#,4#,KM3#,YM30,40 L=394 |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-95701 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-30080 |
CM3#,4#,KM3#,YM30,40 |
14 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95701 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 90950-06001 | ||||
| 93560-16014 | ||||

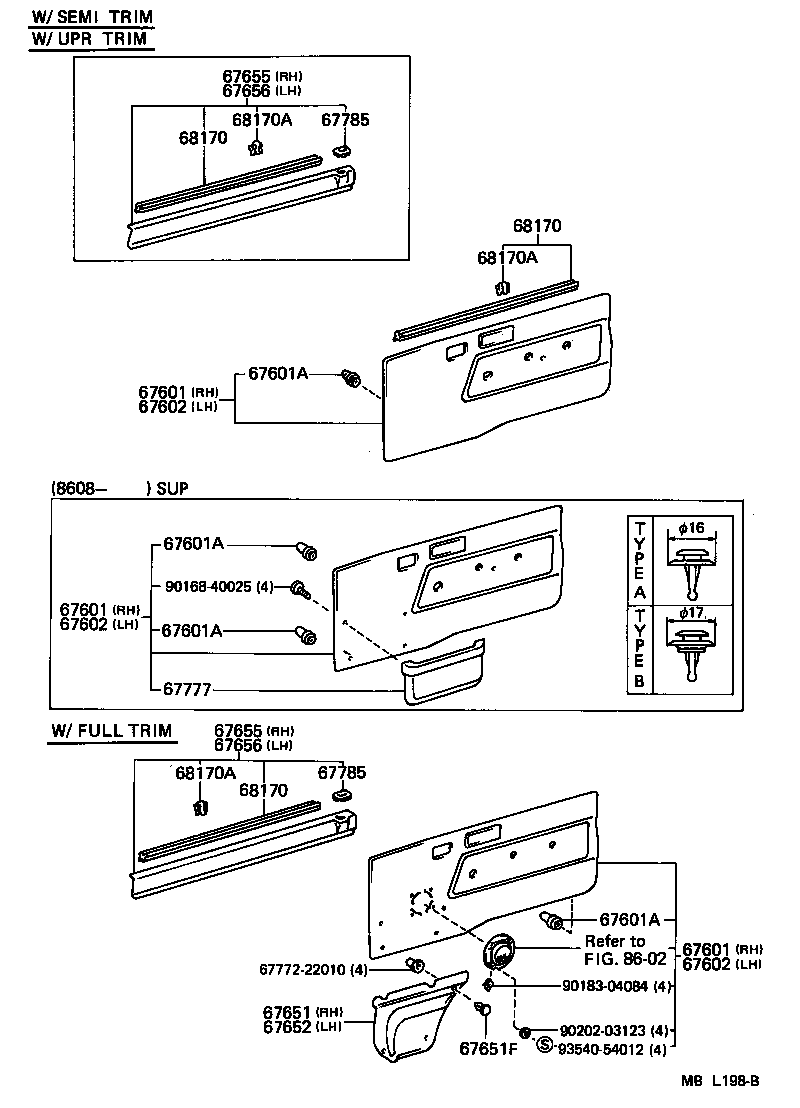

ILLUST NO. 2 OF 2(8509- )DLX,SCA,SUC,SUP,SW,XL7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9576106 |
CM35,36,KM31,35,36;CM30,41..MRF..(DLX,SUC) BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576106 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576006 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576004 |
CM36,4#..DLX,SW,XL7;CM35,KM35,36..VSG..DLX BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9576106 |
CM35,36,KM31,35,36;CM30,41..MRF..(DLX,SUC) BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576106 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576006 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576004 |
CM36,4#..DLX,SW,XL7;CM35,KM35,36..VSG..DLX BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9576106 |
CM35,36,KM31,35,36;CM30,41..MRF..(DLX,SUC) BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576106 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576006 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67610-9576004 |
CM36,4#..DLX,SW,XL7;CM35,KM35,36..VSG..DLX BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM3#,4#,KM3#,YM40..DLX,SUC,SUP,SW,XL7 |
26 | ||
| 67771-16020 |
CM3#,4#,KM30,35,36,YM40..DLX,SUC,SW,XL7 TYPE A |
26 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM3#,4#,KM3#,YM40..DLX,SUC,SUP,SW,XL7 |
26 | ||
| 67771-16020 |
CM3#,4#,KM30,35,36,YM40..DLX,SUC,SW,XL7 TYPE A |
26 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM3#,4#,KM3#,YM40..DLX,SUC,SUP,SW,XL7 |
26 | ||
| 67771-16020 |
CM3#,4#,KM30,35,36,YM40..DLX,SUC,SW,XL7 TYPE A |
26 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
CM3#,4#,KM3#,YM40..DLX,SUC,SUP,SW,XL7 |
26 | ||
| 67771-16020 |
CM3#,4#,KM30,35,36,YM40..DLX,SUC,SW,XL7 TYPE A |
26 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9574706 |
CM35,36,KM31,35,36;CM30,41,KM30..MRF..(DLX,SUC) BROWN,BROWN,TRIM4# |
1 | ||
| 67620-9574706 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67620-9574704 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67620-9574704 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9574706 |
CM35,36,KM31,35,36;CM30,41,KM30..MRF..(DLX,SUC) BROWN,BROWN,TRIM4# |
1 | ||
| 67620-9574706 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67620-9574704 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67620-9574704 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9574706 |
CM35,36,KM31,35,36;CM30,41,KM30..MRF..(DLX,SUC) BROWN,BROWN,TRIM4# |
1 | ||
| 67620-9574706 |
CM35,36,41,KM31,35,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67620-9574704 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67620-9574704 |
CM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67650-9570306 |
CM35,36,41,KM31,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67650-9570304 |
CM35,KM36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67650-9570306 |
CM35,36,41,KM31,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67650-9570304 |
CM35,KM36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67660-9570406 |
CM35,36,41,KM31,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67660-9570404 |
CM35,KM36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67660-9570406 |
CM35,36,41,KM31,36 BROWN,BROWN,TRIM4# |
1 | ||
| 67660-9570404 |
CM35,KM36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SCA,SUC,SUP,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR | ||||
| 69751-1201004 |
CM35,KM36..VSG;CM30,36,4#,KM30,31,YM30,40 BLUE,BLUE,TRIM4#,8# |
2 | ||
| 69751-1201006 |
CM35,36,41,KM31,36 BROWN,BROWN,TRIM4# |
2 | ||
| 67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR | ||||
| 69751-1201004 |
CM35,KM36..VSG;CM30,36,4#,KM30,31,YM30,40 BLUE,BLUE,TRIM4#,8# |
2 | ||
| 69751-1201006 |
CM35,36,41,KM31,36 BROWN,BROWN,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95707 |
CM3#,4#,KM30,31,36,YM40..DLX,SCA,SUC,SUP,SW,XL7 LH |
1 | ||
| 68171-95707 |
CM3#,4#,KM30,31,36,YM40..DLX,SCA,SUC,SUP,SW,XL7 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95707 |
CM3#,4#,KM30,31,36,YM40..DLX,SCA,SUC,SUP,SW,XL7 LH |
1 | ||
| 68171-95707 |
CM3#,4#,KM30,31,36,YM40..DLX,SCA,SUC,SUP,SW,XL7 RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95707 |
CM3#,4#,KM30,31,36,YM40..DLX,SCA,SUC,SUP,SW,XL7 LH |
1 | ||
| 68171-95707 |
CM3#,4#,KM30,31,36,YM40..DLX,SCA,SUC,SUP,SW,XL7 RH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7 |
14 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7 |
14 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
CM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7 |
14 | ||
| Common parts | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| 90183-04084 | ||||
| 90202-03123 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8602 | ||||
