CM31V-PNZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

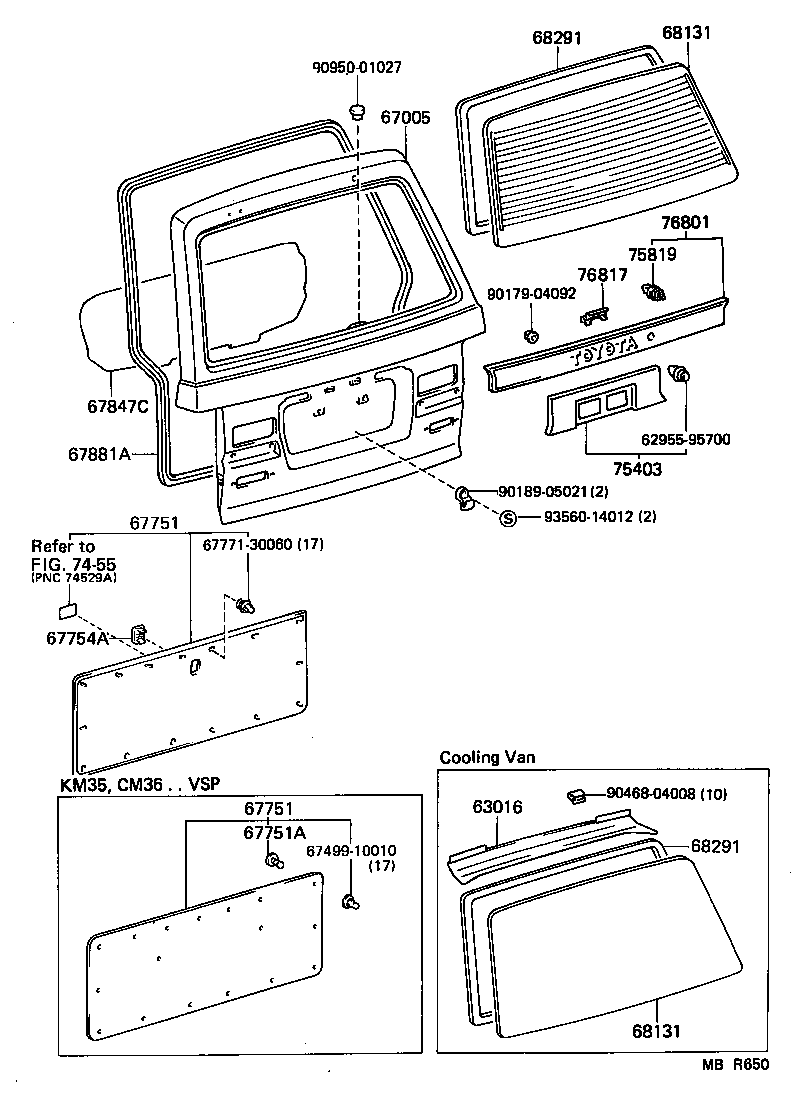

Click highlighted areas on diagram

diagram 6295595700 63016 67005 6749910010 67751 67751 67751A 67754A 6777130060 67847C 67881A 68131 68131 68291 68291 7455 75403 75819 76801 76817 9017904092 9018905021 9046804008 9095001027 9356014012
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95G36

CM31,KM31,36..(HRF,MRF)..05S

 1
67005-95G52

CM31,KM31,36..(HRF,MRF)..05S

ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-)

 1
67005-95G52

CM30,31,40,KM31..(HRF,MRF)..(SSW,SUP)

 1
67005-95G52

CM30,31,40,KM31,36,YM31..(HRF,MRF)..(SSW,SUP)

 1
67751 - BOARD, BACK DOOR TRIM
67750-9571003

CM31,KM31,36,YM31..SUP

GRAY,TRIM1#

 1
67751 - BOARD, BACK DOOR TRIM
67750-9571003

CM31,KM31,36,YM31..SUP

GRAY,TRIM1#

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95700

CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,SCA,SSW,SUC,SUP

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-95705

CM3#,4#,KM3#,YM3#,40..HRF,MRF

 1
68131 - GLASS, BACK DOOR
68131-95727

CM3#,4#,KM3#,YM31,40..(HRF,MRF)..(DLX,LD,SSW,SUP,SW)

*EHT 厚さ=4.0

 1
68131 - GLASS, BACK DOOR
68131-95727

CM3#,4#,KM3#,YM31,40..(HRF,MRF)..(DLX,LD,SSW,SUP,SW)

*EHT 厚さ=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95708

CM3#,4#,KM3#,YM3#,40..HRF,MRF

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95708

CM3#,4#,KM3#,YM3#,40..HRF,MRF

 1
Common parts
62955-95700
67499-10010
67771-30060
90179-04092
90189-05021
90468-04008
90950-01027
93560-14012
Linked diagrams
7455
