CM31V-PNZF (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
2C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

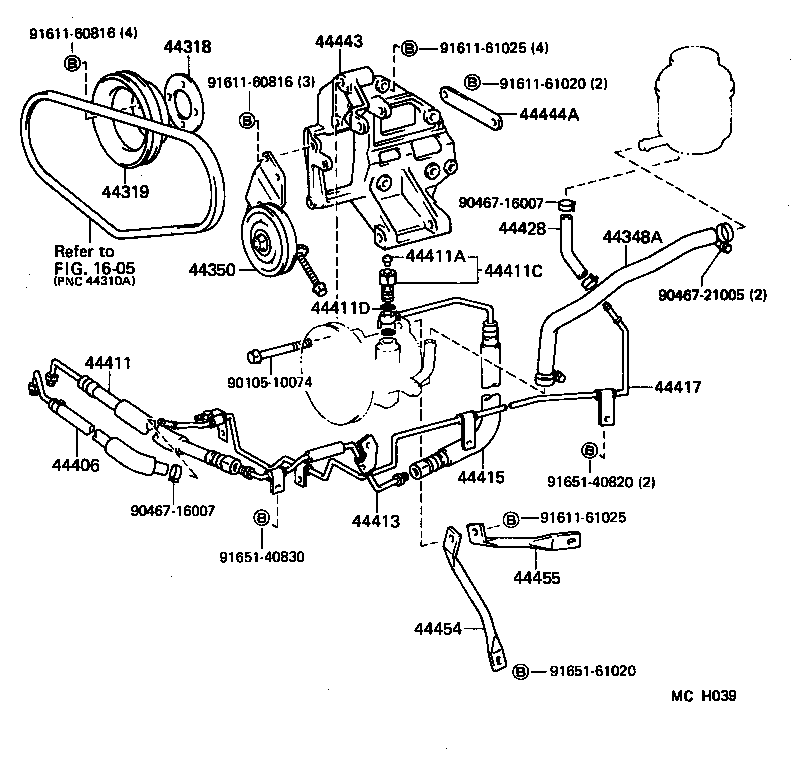

(8808- )KM30,31,36
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-27010 |
KM30,31,36 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-27020 |
KM30,31,36 |
1 | ||
| 44319-27010 |
CM3#,4# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-27021 |
KM30,31,36 |
1 | ||
| 44348-27060 |
CM3# |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-27010 |
KM30,31,36 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-27010 |
CM3#,KM30,31,36,YM3# |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-27030 |
CM3# |
1 | ||
| 44411-27020 |
KM30,31,36,YM3# |
1 | ||
| 44411A - SEAT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90410-05005 |
KM30,31,36 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16008 |
CM3#,4# |
1 | ||
| 90401-16010 |
KM30,31,36 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
CM3#,4#,KM30,31,36 |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-27020 |
KM30,31,36 |
1 | ||
| 44415 - HOSE, PRESSURE FEED, NO.2 | ||||
| 44415-27011 |
KM30,31,36 |
1 | ||
| 44415-27021 |
CM3# |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-27040 |
KM30,31,36,YM3# |
1 | ||
| 44428 - HOSE, RETURN, NO.2 | ||||
| 44428-27010 |
KM30,31,36,YM3#,40 |
1 | ||
| 44428-27020 |
CM3# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-14030 |
CM3#,4# |
1 | ||
| 44443-27010 |
KM30,31,36 |
1 | ||
| 44444A - STAY, PUMP, REAR NO.1 | ||||
| 44444-27020 |
KM30,31,36 |
1 | ||
| 44454 - STAY, PUMP, REAR NO.2 | ||||
| 44454-27010 |
KM30,31,36 |
1 | ||
| 44455 - STAY, PUMP, REAR NO.3 | ||||
| 44455-27011 |
KM30,31,36 |
1 | ||
| Common parts | ||||
| 90105-10074 | ||||
| 90467-16007 | ||||
| 90467-21005 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-40820 | ||||
| 91651-40830 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 1605 | ||||

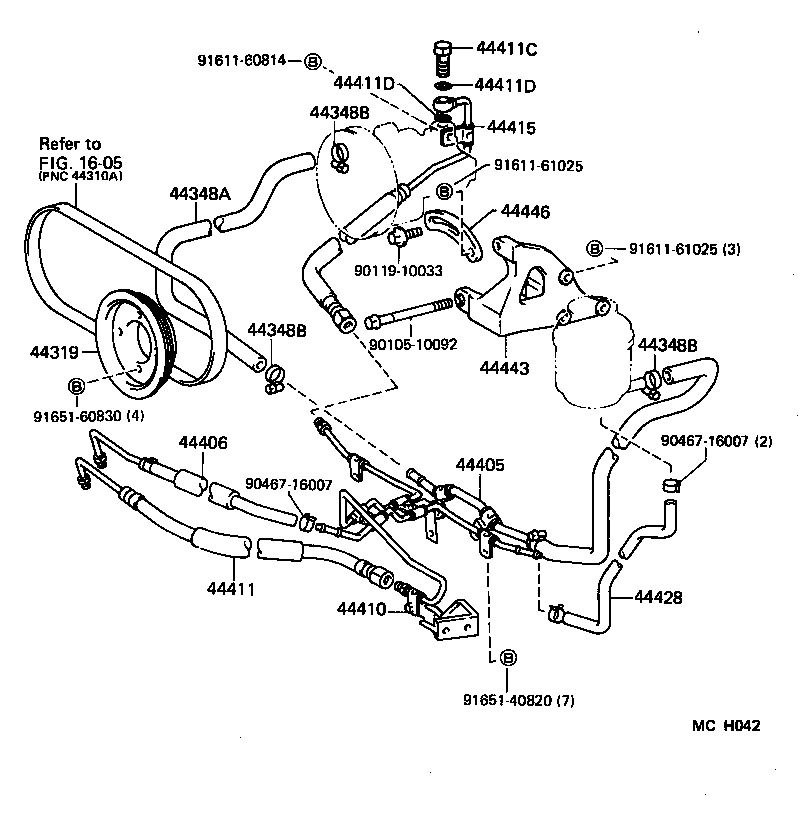

(8808- )CM3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-27020 |
KM30,31,36 |
1 | ||
| 44319-27010 |
CM3#,4# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-27021 |
KM30,31,36 |
1 | ||
| 44348-27060 |
CM3# |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
CM3#,4# |
3 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
CM3#,4# |
3 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
CM3#,4# |
3 | ||
| 44405 - TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44405-27010 |
CM3# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-27010 |
CM3#,KM30,31,36,YM3# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-27050 |
CM3# |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-27030 |
CM3# |
1 | ||
| 44411-27020 |
KM30,31,36,YM3# |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16008 |
CM3#,4# |
1 | ||
| 90401-16010 |
KM30,31,36 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
CM3#,4#,KM30,31,36 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
CM3#,4#,KM30,31,36 |
2 | ||
| 44415 - HOSE, PRESSURE FEED, NO.2 | ||||
| 44415-27011 |
KM30,31,36 |
1 | ||
| 44415-27021 |
CM3# |
1 | ||
| 44428 - HOSE, RETURN, NO.2 | ||||
| 44428-27010 |
KM30,31,36,YM3#,40 |
1 | ||
| 44428-27020 |
CM3# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-14030 |
CM3#,4# |
1 | ||
| 44443-27010 |
KM30,31,36 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-14010 |
CM3#,4# |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90119-10033 | ||||
| 90467-16007 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91651-40820 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
