CM31V-MNZF (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

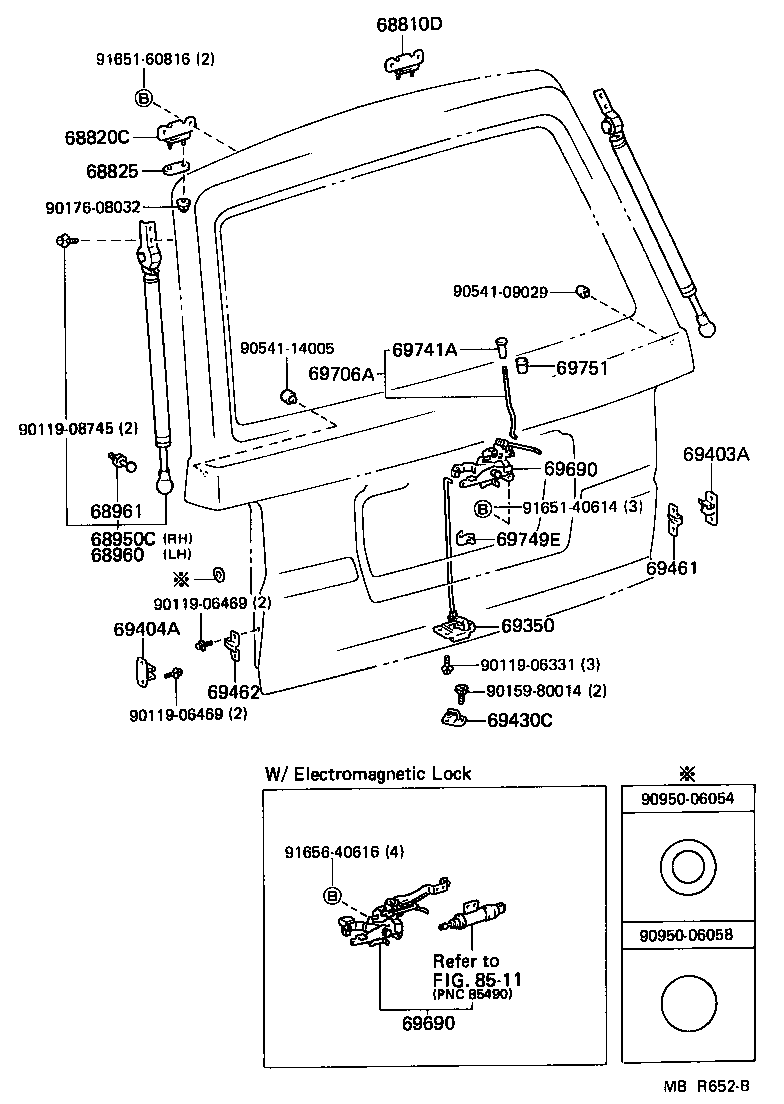

Click highlighted areas on diagram

diagram 68810D 68820C 68825 68950C 68960 68961 69350 69403A 69404A 69430C 69461 69462 69690 69690 69706A 69741A 69749E 69751 8511 9011906331 9011906469 9011906469 9011908745 9015980014 9017608032 9054109029 9054114005 9095006054 9095006058 9165140614 9165160816 9165640616
Part # Description Qty Price
68810D - HINGE ASSY, BACK DOOR, RH
68810-95J01

CM3#,4#,KM3#,YM3#,40

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-95J01

CM3#,4#,KM3#,YM3#,40

 1
68825 - PLATE, BACK DOOR HINGE
68825-95700

CM3#,4#,KM3#,YM3#,40

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-29815

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,LD,SUP,SW)

 1
68950-29765

CM31,KM31,36..(HRF,MRF)..05S

ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-)

 1
68950-29775

CM30,31,40,KM31,36,YM31..(HRF,MRF)..(SSW,SUP)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
68950-29765

CM30,31,40,KM31,36,YM31..(HRF,MRF)..(SSW,SUP)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-29645

CM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,LD,SUP,SW)

 1
68960-29595

CM31,KM31,36..(HRF,MRF)..05S

ｱﾘ(ﾘﾔ ｱﾝﾀﾞ ﾐﾗ-)

 1
68960-29595

CM30,31,40,KM31,36,YM31..(HRF,MRF)..(SSW,SUP)

 1
68960-29605

CM30,31,40,KM31,36,YM31..(HRF,MRF)..(SSW,SUP)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
68961 - BOLT, BACK DOOR STAY
68961-95702

CM3#,4#,KM3#,YM3#,40

 2
69350 - LOCK ASSY, BACK DOOR
69350-95709

CM3#,4#,KM3#,YM3#,40

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95701

CM3#,4#,KM3#,YM3#,40

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69404-95701

CM3#,4#,KM3#,YM3#,40

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95702

CM3#,4#,KM3#,YM3#,40

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69461-95702

CM3#,4#,KM3#,YM3#,40

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69462-95702

CM3#,4#,KM3#,YM3#,40

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95705

CM31,KM31,36,YM31..SUP

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95705

CM31,KM31,36,YM31..SUP

 1
69706A - ROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69706-9570103

CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP

GRAY,TRIM1#

 1
69741A - KNOB, BACK DOOR LOCK CONTROL
69741-9570303

CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP

GRAY,TRIM1#

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

CM3#,4#,KM3#,YM3#,40

 1
69751 - HOLDER, DOOR LOCK CONTROL KNOB
69751-95J00B0

CM30,31,40,KM3#,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP

GRAY,TRIM1#

 1
69751-9570103

CM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP

GRAY,TRIM1#

 1
Common parts
90119-06331
90119-06469
90119-08745
90159-80014
90176-08032
90541-09029
90541-14005
90950-06054
90950-06058
91651-40614
91651-60816
91656-40616
Linked diagrams
8511
