CM31V-MNZF (1988)
Toyota Liteace Van,Wagon
(8808- )5F,5H

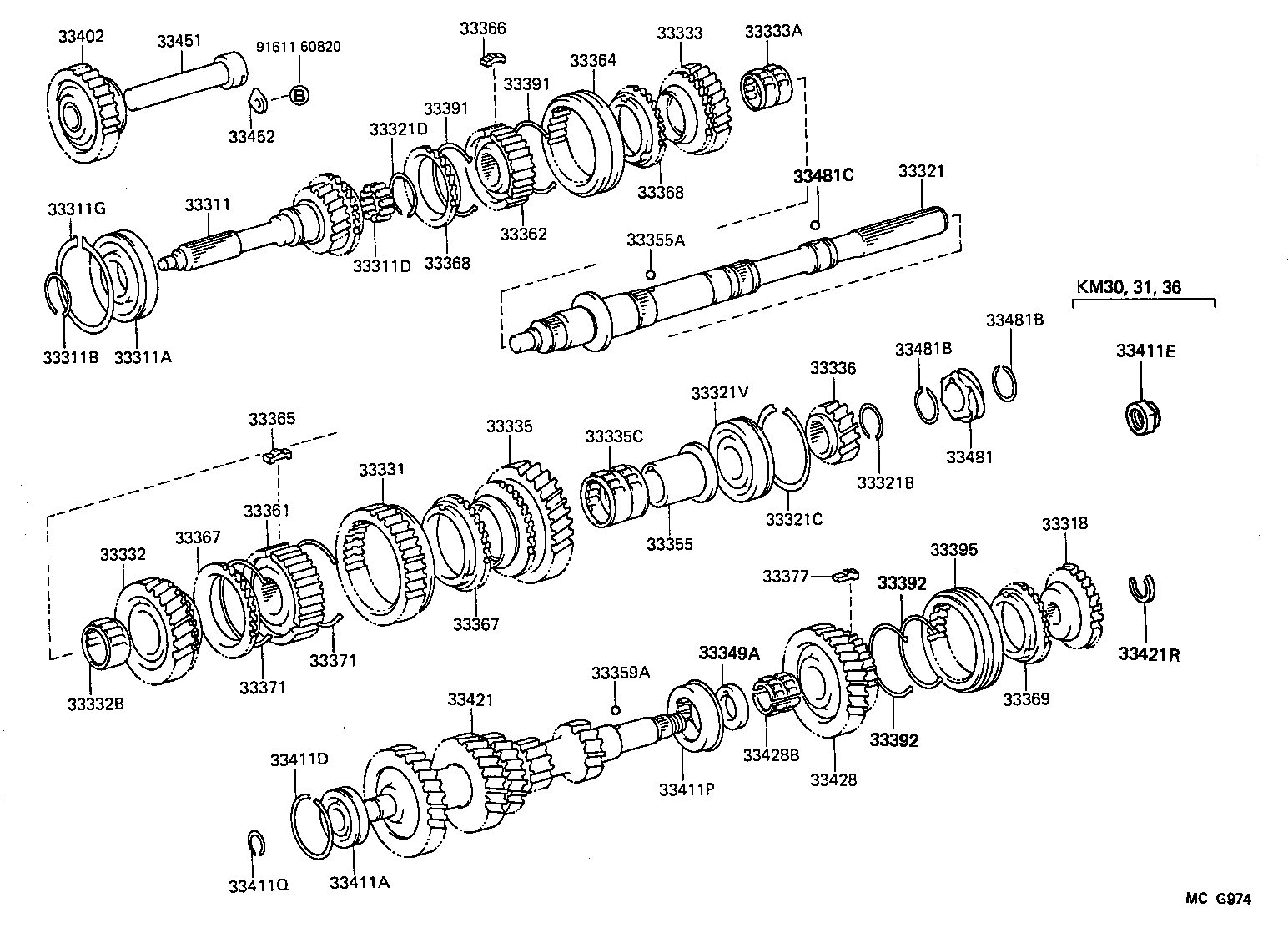

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-28060 |
CM30,40,KM30,31,36,YM30,40..5F |
1 | ||
| 33301-35060 |
CM31,36,41..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32024 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30217 |
CM3#,4#,YM40..5F 厚さ=2.20,ﾏｰｸ 3 |
1 | ||
| 90520-30214 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.05,ﾏｰｸ 0 |
1 | ||
| 90520-30219 |
CM3#,4#,YM40..5F 厚さ=2.30,ﾏｰｸ 5 |
1 | ||
| 90520-30215 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.10,ﾏｰｸ 1 |
1 | ||
| 90520-30218 |
CM3#,4#,YM40..5F 厚さ=2.25,ﾏｰｸ 4 |
1 | ||
| 90520-30216 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.15,ﾏｰｸ 2 |
1 | ||
| 90520-30218 |
KM36..5H;CM3#,4#,YM40..5F 厚さ=2.25,ﾏｰｸ 4 |
1 | ||
| 90520-30217 |
KM36..5H;CM3#,4#,YM40..5F 厚さ=2.20,ﾏｰｸ 3 |
1 | ||
| 90520-30219 |
KM36..5H;CM3#,4#,YM40..5F 厚さ=2.30,ﾏｰｸ 5 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
13 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-35030 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-26050 |
CM3#,KM30,31,36,YM3#..5F,5H |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25009 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.79−2.84,ﾏｰｸ C |
1 | ||
| 90520-25017 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.27−3.32,ﾏｰｸ L |
1 | ||
| 90520-25014 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.09−3.14,ﾏｰｸ H |
1 | ||
| 90520-25006 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.73−2.78,ﾏｰｸ B |
1 | ||
| 90520-25015 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.15−3.20,ﾏｰｸ J |
1 | ||
| 90520-25011 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.91−2.96,ﾏｰｸ E |
1 | ||
| 90520-25012 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.97−3.02,ﾏｰｸ F |
1 | ||
| 90520-25010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.85−2.90,ﾏｰｸ D |
1 | ||
| 90520-25016 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.21−3.26,ﾏｰｸ K |
1 | ||
| 90520-25005 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.67−2.72,ﾏｰｸ A |
1 | ||
| 90520-25013 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.03−3.08,ﾏｰｸ G |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-71221 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=1.65,内径=71.1 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28245 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=1.80−1.85,ﾏｰｸ D |
1 | ||
| 90520-28013 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.05,ﾏｰｸ F−1 |
1 | ||
| 90520-28010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=1.85,ﾏｰｸ D−1 |
1 | ||
| 90520-28248 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.00−2.05,ﾏｰｸ F |
1 | ||
| 90520-30218 |
CM3#,KM30,31,36,YM3#..5F,5H 厚さ=2.25,ﾏｰｸ 4 |
1 | ||
| 90520-28246 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=1.90−1.95,ﾏｰｸ E |
1 | ||
| 90520-28012 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=1.75,ﾏｰｸ C−1 |
1 | ||
| 90520-30217 |
CM3#,KM30,31,36,YM3#..5F,5H 厚さ=2.20,ﾏｰｸ 3 |
1 | ||
| 90520-28011 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=1.95,ﾏｰｸ E−1 |
1 | ||
| 90520-30219 |
CM3#,KM30,31,36,YM3#..5F,5H 厚さ=2.30,ﾏｰｸ 5 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-30059 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28010 |
CM3#,4#,KM30,31,36,YM30,40..5F |
1 | ||
| 33331-35060 |
KM30,31,36..5F |
1 | ||
| 33331-35060 |
KM30,31,36..5F |
1 | ||
| 33331-28011 |
KM30,31,36..5F,5H |
1 | ||
| 33331-28011 |
CM3#,4#..5F |
1 | ||
| 33331-28010 |
CM3#,4#..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35011 |
CM31,36,41..5F |
1 | ||
| 33033-35021 |
CM30,40,KM30,31,36,YM30,40..5F |
1 | ||
| 33033-35011 |
CM31,36,41,KM31,36,YM31..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-35030 |
CM3#,4#..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-35005 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-35050 |
CM3#,4#..5F |
1 | ||
| 33032-35050 |
CM3#,4#,KM30,31,36,YM30,40..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39011 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-28020 |
CM31,36,41,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33349A - WASHER, 4TH GEAR | ||||
| 33349-35010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 外径=43 |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-35020 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35040 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35030 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35040 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-30011 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
CM3#,4#,KM3#,YM3#,40..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
CM3#,4#,KM3#,YM3#,40..MTM |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-14010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-14010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-28010 |
CM3#,4#..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28011 |
CM3#,4#,KM30,31,36,YM30,40..5F |
1 | ||
| 33402-28011 |
CM3#,4#..5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25025 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=1.07,外径=55.6 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-10016 |
KM30,31,36..5F,5H |
2 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31006 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 90365-31004 |
CM3#,4#,KM30,31,36,YM30,40..5F |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23143 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.15−2.20 |
1 | ||
| 90520-23089 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.10−2.15 |
1 | ||
| 90520-23145 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.30−2.35 |
1 | ||
| 90520-23090 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.20−2.25 |
1 | ||
| 90520-23144 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.25−2.30 |
1 | ||
| 90520-23115 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.05−2.10 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35140 |
CM31,36,41..5F |
1 | ||
| 33421-35150 |
CM30,40,KM30,31,36,YM30,40..5F |
1 | ||
| 33421R - RING, SHAFT SNAP(FOR COUNTER GEAR REAR) | ||||
| 90520-19009 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.90 |
1 | ||
| 90520-19011 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.00 |
1 | ||
| 90520-19008 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.85 |
1 | ||
| 90520-19012 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.05 |
1 | ||
| 90520-19013 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.10 |
1 | ||
| 90520-19014 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=3.15 |
1 | ||
| 90520-19010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H 厚さ=2.95 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-35061 |
CM31,36,41,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33046-35062 |
CM31,36,41,KM3#,YM3#,40..MTM |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-26002 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36030 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-20070 |
KM30,31,36..(5F,5H)..(DLX,LD,SCA,SUC,SUP) 歯数=5,ﾏｰｸ 5X17−19 |
1 | ||
| 33481-30040 |
CM3#,YM3#..5F;KM30..(5F,5H)..(SCA,SUC,SW) 歯数=6,ﾏｰｸ 6X21−23 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26061 |
CM3#,KM3#,YM3#..MTM 厚さ=1.50,外径=31.3 |
2 | ||
| 90520-26179 |
CM3#,KM30,31,36,YM3#..5F,5H 厚さ=1.50,外径=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26061 |
CM3#,KM3#,YM3#..MTM 厚さ=1.50,外径=31.3 |
2 | ||
| 90520-26179 |
CM3#,KM30,31,36,YM3#..5F,5H 厚さ=1.50,外径=31.3 |
2 | ||
| 33481C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
CM3#,KM30,31,36,YM3#..5F,5H |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
