CM30G-PXSX (1988)
Toyota Liteace Van,Wagon
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63031A - TRIM SUB-ASSY, ROOF HEADLINING, NO.1 | ||||
| 63031-9570006 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63031-9570003 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63032A - TRIM SUB-ASSY, ROOF HEADLINING, NO.2 | ||||
| 63032-9570003 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63032-9570006 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63033A - TRIM SUB-ASSY, ROOF HEADLINING, NO.3 | ||||
| 63033-9570003 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63033-9570006 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63034A - TRIM SUB-ASSY, ROOF HEADLINING, NO.4 | ||||
| 63034-9570003 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63034-9570006 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63037 - RETAINER SUB-ASSY, ROOF HEADLINING, CENTER | ||||
| 63037-9570306 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63037-9570303 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63301A - TRIM SUB-ASSY, SUNSHADE, NO.1 RH | ||||
| 63301-9570306 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63301-9570303 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63302A - TRIM SUB-ASSY, SUNSHADE, NO.1 LH | ||||
| 63302-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63302-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63303B - TRIM SUB-ASSY, SUNSHADE, NO.2 RH | ||||
| 63303-9570503 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63303-9570506 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63304B - TRIM SUB-ASSY, SUNSHADE, NO.2 LH | ||||
| 63304-9570803 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63304-9570806 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63305D - TRIM SUB-ASSY, SUNSHADE, NO.3 RH | ||||
| 63305-9570603 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63305-9570606 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63306D - TRIM SUB-ASSY, SUNSHADE, NO.3 LH | ||||
| 63305-9570606 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63305-9570603 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63308C - RETAINER SUB-ASSY, ROOF HEADLINING, RH | ||||
| 63308-9570106 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63308-9570103 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63309 - RETAINER SUB-ASSY, ROOF HEADLINING, LH | ||||
| 63309-9571003 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63309-9571006 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-0601101 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) BLACK,TRIM1#,4# |
4 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-0606301 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) BLACK,TRIM1#,4# |
6 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-0606301 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) BLACK,TRIM1#,4# |
6 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-9570603 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63310-9570606 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-9570206 |
CM30,40..(FXV,GXL,SUC)..TD SABLE,TRIM4# |
1 | ||
| 63320-9570203 |
CM30,40..(FXV,GXL,SUC)..TD GRAY,TRIM1# |
1 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
6 | ||
| 63319-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
6 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
6 | ||
| 63319-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
6 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
6 | ||
| 63319-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
6 | ||
| 63334C - PROTECTOR, SUN ROOF HEADLINING SIDE | ||||
| 63334-95706 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63337 - PROTECTOR, SUN ROOF HEADLINING, CENTER | ||||
| 63337-95706 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63337 - PROTECTOR, SUN ROOF HEADLINING, CENTER | ||||
| 63337-95706 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63338F - PROTECTOR, SUN ROOF HEADLINING TRIM, CENTER NO.2 | ||||
| 63338-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63338F - PROTECTOR, SUN ROOF HEADLINING TRIM, CENTER NO.2 | ||||
| 63338-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63348D - PROTECTOR, SUN ROOF HDLNG TRIM, CENTER NO.3 | ||||
| 63348-95706 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63348D - PROTECTOR, SUN ROOF HDLNG TRIM, CENTER NO.3 | ||||
| 63348-95706 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-95707 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-9570003 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
1 | ||
| 63375-9570006 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
1 | ||
| 63376C - TRIM, ROOF WINDOW OPENING, NO.1 | ||||
| 63376-9570106 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
2 | ||
| 63376-9570103 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
2 | ||
| 63376C - TRIM, ROOF WINDOW OPENING, NO.1 | ||||
| 63376-9570106 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
2 | ||
| 63376-9570103 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
2 | ||
| 63377D - TRIM, ROOF WINDOW OPENING, NO.2 | ||||
| 63377-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
2 | ||
| 63377-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
2 | ||
| 63377D - TRIM, ROOF WINDOW OPENING, NO.2 | ||||
| 63377-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
2 | ||
| 63377-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
2 | ||
| 63378D - TRIM, ROOF WINDOW OPENING, NO.3 | ||||
| 63378-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
2 | ||
| 63378-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
2 | ||
| 63378D - TRIM, ROOF WINDOW OPENING, NO.3 | ||||
| 63378-9570206 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) SABLE,TRIM4# |
2 | ||
| 63378-9570203 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) GRAY,TRIM1# |
2 | ||
| 63383 - RETAINER, ROOF HEADLINING, REAR RH | ||||
| 63383-95704 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63384 - RETAINER, ROOF HEADLINING, REAR LH | ||||
| 63384-95703 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-95703 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
8 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-95703 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
8 | ||
| 63607 - RAIL SUB-ASSY, SUNSHADE, NO.1 FRONT | ||||
| 63607-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63608 - RAIL SUB-ASSY, SUNSHADE, NO.1 REAR | ||||
| 63608-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63609 - RAIL SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63609-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63641 - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63642B - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63643 - RAIL, SUNSHADE, NO.1 REAR RH | ||||
| 63643-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63644A - RAIL, SUNSHADE, NO.1 REAR LH | ||||
| 63644-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63645A - RAIL, SUNSHADE, NO.2 FRONT RH | ||||
| 63645-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63646A - RAIL, SUNSHADE, NO.2 FRONT LH | ||||
| 63646-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63647 - RAIL, SUNSHADE, NO.2 REAR RH | ||||
| 63647-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63647 - RAIL, SUNSHADE, NO.2 REAR RH | ||||
| 63647-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63648 - RAIL, SUNSHADE, NO.2 REAR LH | ||||
| 63648-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63648 - RAIL, SUNSHADE, NO.2 REAR LH | ||||
| 63648-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63651A - GARNISH, SUNSHADE, NO.1 RH | ||||
| 63651-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63652A - GARNISH, SUNSHADE, NO.1 LH | ||||
| 63652-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63653A - GARNISH, SUNSHADE, NO.2 RH | ||||
| 63653-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63654A - GARNISH, SUNSHADE, NO.2 LH | ||||
| 63654-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63655A - GARNISH, SUNSHADE, NO.3 RH | ||||
| 63655-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63655A - GARNISH, SUNSHADE, NO.3 RH | ||||
| 63655-95700 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
2 | ||
| 63657A - RAIL, SUNSHADE, NO.3 REAR RH | ||||
| 63657-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| 63658A - RAIL, SUNSHADE, NO.3 REAR LH | ||||
| 63658-95701 |
CM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD) |
1 | ||
| Common parts | ||||
| 90164-60002 | ||||
| 90189-06024 | ||||
| 93385-16012 | ||||
| 93560-55025 | ||||

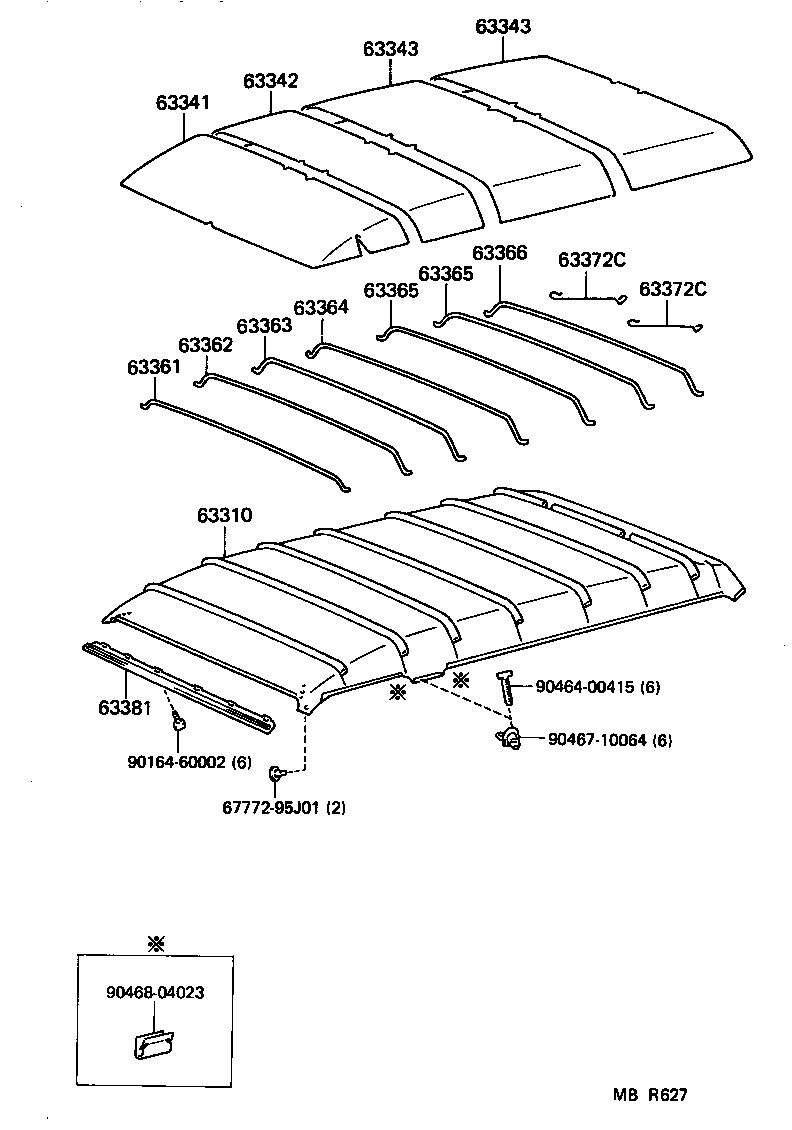

(8808- )GXL,SCA,SUC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-9570903 |
CM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC GRAY,TRIM1# |
1 | ||
| 63310-9570906 |
CM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC SABLE,TRIM4# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-95712 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-95727 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 63342-95728 |
CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｽｶｲﾗｲﾄﾙ-ﾌ) |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-95711 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
2 | ||
| 63343-95712 |
CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｽｶｲﾗｲﾄﾙ-ﾌ) |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-95711 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
2 | ||
| 63343-95712 |
CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｽｶｲﾗｲﾄﾙ-ﾌ) |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-95702 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63362-95702 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63363-95702 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 63364 - SUPPORT, ROOF HEADLINING, NO.4 | ||||
| 63364-95701 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 63365 - SUPPORT, ROOF HEADLINING, NO.5 | ||||
| 63365-95701 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
2 | ||
| 63365 - SUPPORT, ROOF HEADLINING, NO.5 | ||||
| 63365-95701 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
2 | ||
| 63366 - SUPPORT, ROOF HEADLINING, NO.6 | ||||
| 63366-95701 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
1 | ||
| 63372C - HOOK, ROOF HEADLINING SUPPORT | ||||
| 63372-95702 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
2 | ||
| 63372C - HOOK, ROOF HEADLINING SUPPORT | ||||
| 63372-95702 |
CM30..5F..GXL;CM30..MRF..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..MRF..(GXL,LD,SCA,SUC) |
2 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-95704 |
CM30..5F..GXL;CM30..(LD,SUC)..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,LD,SCA,SUC |
1 | ||
| Common parts | ||||
| 67772-95J01 | ||||
| 90164-60002 | ||||
| 90464-00415 | ||||
| 90467-10064 | ||||
| 90468-04023 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
