CM30G-PBZ (1985)

Toyota Liteace Van,Wagon

Production Sep 1985 - Aug 1988
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

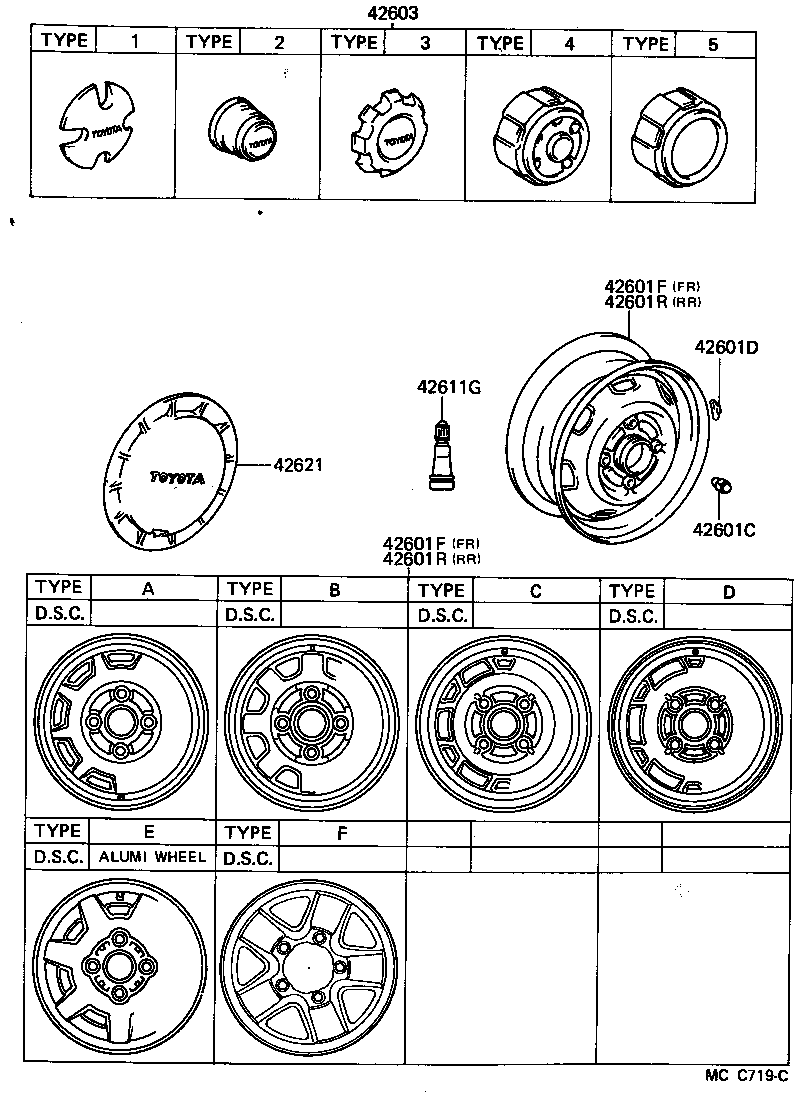

Click highlighted areas on diagram

diagram 42601C 42601D 42601F 42601F 42601R 42601R 42603 42611G 42621
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01059

CM3#,KM3#..DLX,SUP,SW

 16
90942-01027

CM3#,KM3#..DLX,SUP,SW

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03029

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

70G,厚さ=9.5,70G

 1
90942-03017

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

20G,厚さ=8,20G

 1
90942-03022

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

40G,厚さ=9.5,40G

 1
90942-03027

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

60G,厚さ=9.5,60G

 1
90942-03020

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

30G,厚さ=10,30G

 1
90942-03025

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

50G,厚さ=9.5,50G

 1
90942-03031

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

80G,厚さ=9.5,80G

 1
90942-03041

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

10G,厚さ=7.5,10G

 1
42601F - WHEEL, DISC (FOR FRONT)
42611-21081

CM30,KM30..SW

13X4.5J,TYPE A

 2
42601F - WHEEL, DISC (FOR FRONT)
42611-21081

CM30,KM30..SW

13X4.5J,TYPE A

 2
42601R - WHEEL, DISC (FOR REAR)
42611-21081

CM30,KM30..SW

13X4.5J,TYPE A

 3
42601R - WHEEL, DISC (FOR REAR)
42611-21081

CM30,KM30..SW

13X4.5J,TYPE A

 3
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-27020

CM30,KM30..DLX,SW

TYPE 2

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

CM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40

 5
