CM30G-MXSX (1985)
Toyota Liteace Van,Wagon
ILLUST NO. 1 OF 4(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
CM3#,4#,KM3#,YM30,40 FR |
5 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95708 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88501-95711 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88501-95713 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88501-95709 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88501-95711 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88501-95712 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88501-95713 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95724 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88510-95724 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88510-95723 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88515-87004 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88515-87004 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88515-95700 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88515-95700 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95747 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95710 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88539-95708 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88539-95708 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88539-95710 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88539-95709 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-89101 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88625-95700 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88625-89101 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88625-12070 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88625-95700 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95751 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88716-95751 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88716-95753 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88716-95754 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88716-95754 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-95752 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| Common parts | ||||
| 88592-87002 | ||||
| 88688-95774 | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90179-06115 | ||||
| 93315-13008 | ||||
| 93381-16012 | ||||
ILLUST NO. 2 OF 4(8509- )CM3#,41,KM3#,YM30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95724 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88605-95729 |
CM30,KM30 FR,W/*AIC |
1 | ||
| 88605-95722 |
CM30,KM30,YM30..HRF,MRF FR,W/*ODAC OR COOL BOX |
1 | ||
| 88605-95724 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88605-95722 |
CM30,KM30,YM30..MRF FR,W/*ODAC |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95724 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88605-95729 |
CM30,KM30 FR,W/*AIC |
1 | ||
| 88605-95722 |
CM30,KM30,YM30..HRF,MRF FR,W/*ODAC OR COOL BOX |
1 | ||
| 88605-95724 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88605-95722 |
CM30,KM30,YM30..MRF FR,W/*ODAC |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CM30,40,KM30,YM30,40 |
5 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
CM3#,4#,KM30,YM30,40 NO.1 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
CM3#,4#,KM30,YM30,40 NO.1 |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-95767 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88688-95767 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
CM3#,41 |
1 | ||
| 88650-95709 |
CM30,40..MRF W/*ODAC |
1 | ||
| 88650-95709 |
CM30,40 W/*ODAC OR COOL BOX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
CM3#,41 |
1 | ||
| 88650-95709 |
CM30,40..MRF W/*ODAC |
1 | ||
| 88650-95709 |
CM30,40 W/*ODAC OR COOL BOX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
CM3#,41 |
1 | ||
| 88650-95709 |
CM30,40..MRF W/*ODAC |
1 | ||
| 88650-95709 |
CM30,40 W/*ODAC OR COOL BOX |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14620 | ||||
| 85999-12050 | ||||
| 88569-12170 | ||||
| 88578-95703 | ||||
| 88688-14080 | ||||
| 88718-95751 | ||||
| 88897-95701 | ||||
| 90099-00930 | ||||
| 90179-06115 | ||||

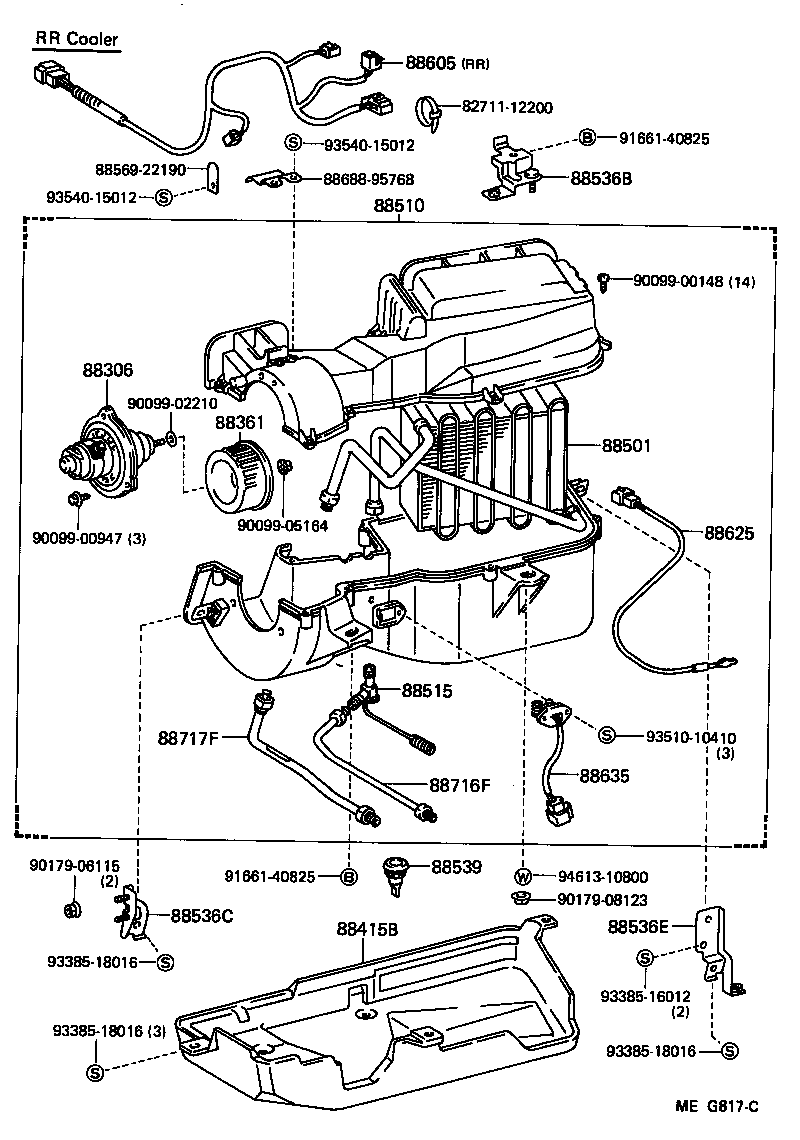

ILLUST NO. 3 OF 4(8509- )FXV,GXL,SUC,XL7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95700 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 87104-95707 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88550-95700 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 87104-95707 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-14020 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 87105-87004 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 87105-14020 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 87105-87004 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88415B - COVER, DUST | ||||
| 88415-95702 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88415-95702 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95708 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88501-95711 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88501-95713 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88501-95709 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88501-95711 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88501-95712 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88501-95713 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95724 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88510-95724 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88510-95723 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88515-87004 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88515-87004 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88515-95700 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88515-95700 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-95749 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88688-95749 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88688-95750 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88688-95750 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88536E - BRACKET, COOLING UNIT, NO.5 | ||||
| 88688-95751 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88688-95751 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95710 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88539-95708 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88539-95708 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88539-95710 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88539-95709 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95724 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88605-95729 |
CM30,KM30 FR,W/*AIC |
1 | ||
| 88605-95722 |
CM30,KM30,YM30..HRF,MRF FR,W/*ODAC OR COOL BOX |
1 | ||
| 88605-95724 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88605-95722 |
CM30,KM30,YM30..MRF FR,W/*ODAC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-89101 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88625-95700 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88625-89101 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88625-12070 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88625-95700 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-95703 |
CM30,40,KM30,YM30,40..FXV,GXL,XL7 |
1 | ||
| 88635-95703 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88635-95703 |
CM30,40,KM30,YM30,40..HRF,MRF |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95751 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88716-95751 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88716-95753 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88716-95754 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88716-95754 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-95744 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88717-95742 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88717-95744 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88717-95742 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-22190 | ||||
| 88688-95768 | ||||
| 90099-00148 | ||||
| 90099-00947 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91661-40825 | ||||
| 93385-16012 | ||||
| 93385-18016 | ||||
| 93510-10410 | ||||
| 93540-15012 | ||||
| 94613-10800 | ||||

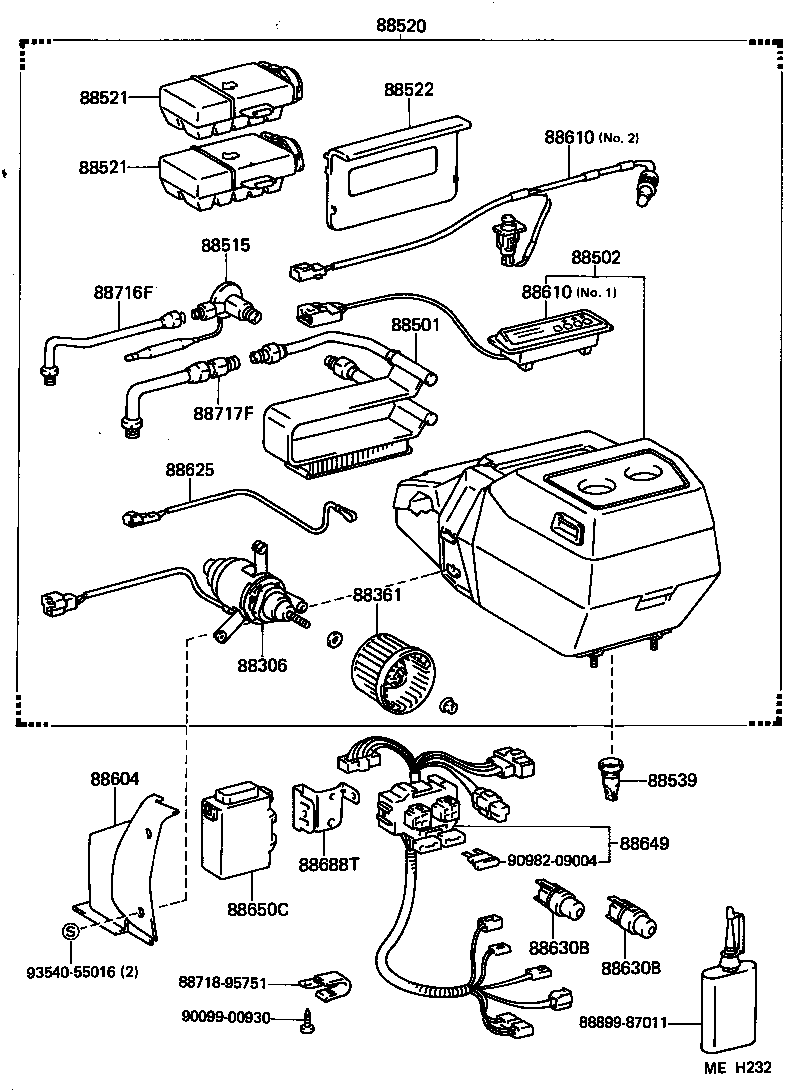

ILLUST NO. 4 OF 4(8509- )FXV,GXL,SUC,XL7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95700 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 87104-95707 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88550-95700 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 87104-95707 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-14020 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 87105-87004 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 87105-14020 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 87105-87004 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95708 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88501-95711 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88501-95713 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88501-95709 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88501-95711 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88501-95712 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88501-95713 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-9570006 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 88502-9570004 |
CM30,40,KM30,YM30,40..GXL,SUC,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88502-9570004 |
CM30,40,YM30,40..DLX,GXL,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88515-87004 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88515-87004 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88515-95700 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88515-95700 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-9570104 |
CM30,40,KM30,YM30,40..GXL,SUC,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88520-9570106 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 88520-9570104 |
CM30,40,YM30,40..DLX,GXL,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-87010 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
2 | ||
| 88899-87010 |
CM30,40,KM30,YM30,40..MRF |
2 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-87010 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
2 | ||
| 88899-87010 |
CM30,40,KM30,YM30,40..MRF |
2 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-95700 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
1 | ||
| 88522-95700 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95710 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88539-95708 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88539-95708 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88539-95710 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88539-95709 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88899-9571204 |
CM30,40,KM30,YM30,40..GXL,SUC,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88899-9571204 |
CM30,40,YM30,40..DLX,GXL,SUC,SW,XL7 BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88899-9571206 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-9571206 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.1,BROWN,BROWN,TRIM4# |
1 | ||
| 88610-9571204 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.1,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88610-95713 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2 |
1 | ||
| 88610-9571206 |
CM30,40,KM30,YM30,40..MRF NO.1,BROWN,BROWN,TRIM4# |
1 | ||
| 88610-9571204 |
CM30,40,KM30,YM30,40..MRF NO.1,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88610-95713 |
CM30,40,KM30,YM30,40..MRF NO.2 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-9571206 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.1,BROWN,BROWN,TRIM4# |
1 | ||
| 88610-9571204 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.1,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88610-95713 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F NO.2 |
1 | ||
| 88610-9571206 |
CM30,40,KM30,YM30,40..MRF NO.1,BROWN,BROWN,TRIM4# |
1 | ||
| 88610-9571204 |
CM30,40,KM30,YM30,40..MRF NO.1,BLUE,BLUE,TRIM4#,8# |
1 | ||
| 88610-95713 |
CM30,40,KM30,YM30,40..MRF NO.2 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-89101 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88625-95700 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88625-89101 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88625-12070 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88625-95700 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CM30,40,KM30,YM30,40..MRF |
2 | ||
| 90987-02004 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
2 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-02004 |
CM30,40,KM30,YM30,40..MRF |
2 | ||
| 90987-02004 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
2 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-95732 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88605-95732 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-95705 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88650-95705 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
1 | ||
| 88688T - BRACKET (FOR COOL BOX) | ||||
| 88688-95780 |
CM30,40,KM30,YM30,40..MRF |
1 | ||
| 88688-95780 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95751 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88716-95751 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| 88716-95753 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 88716-95754 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88716-95754 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-95744 |
CM30,40,KM30,YM30,40..MRF RR |
1 | ||
| 88717-95742 |
CM30,40,KM30,YM30,40..MRF COOL BOX |
1 | ||
| 88717-95744 |
CM30,40,KM30,YM30,40..HRF,MRF RR |
1 | ||
| 88717-95742 |
CM30,40,KM30,YM30,40..3FC,4F,4FC,5F COOL BOX |
1 | ||
| Common parts | ||||
| 88718-95751 | ||||
| 88899-87011 | ||||
| 90099-00930 | ||||
| 90982-09004 | ||||
| 93540-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
