CM30G-MQSX (1985)
Toyota Liteace Van,Wagon

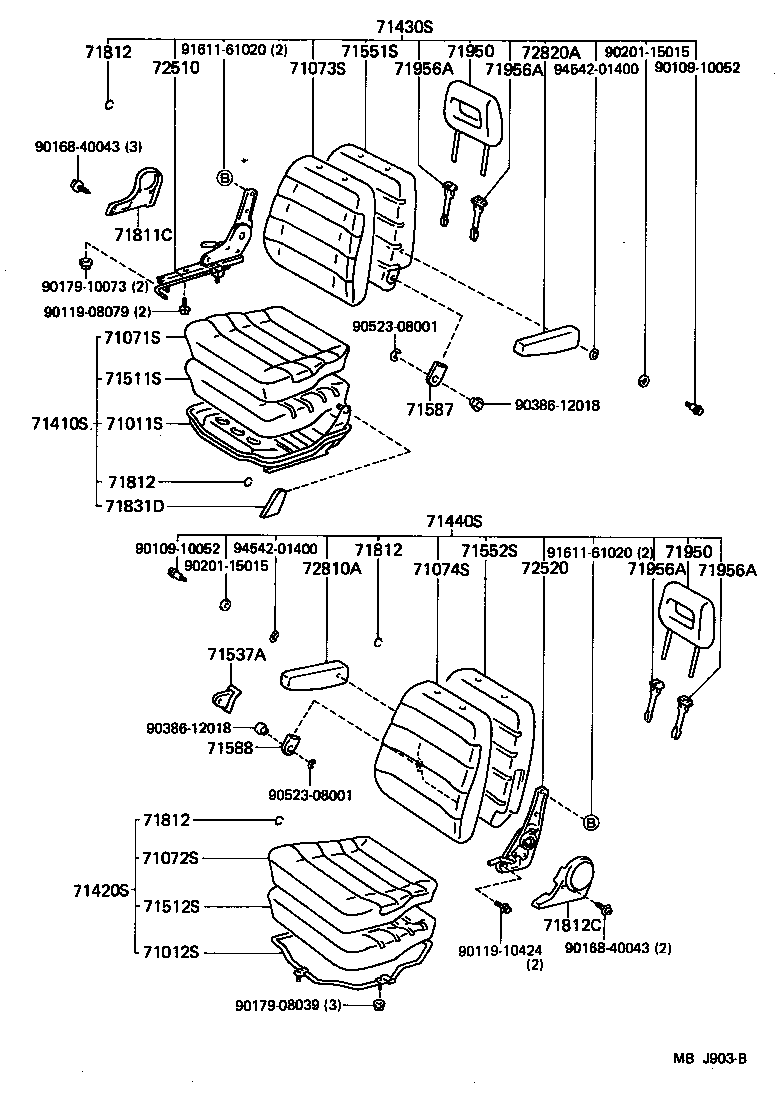

ILLUST NO. 1 OF 2(8509- )CM30,YM40..5F..DLX,SW,XL7 ; (8509-)CM30,KM30,YM30,40..3FC,4F,4FC ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95705 |
CM3#,4#,KM30,31,36,YM30,40..3FC,4F,4FC,5F |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9574706 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71071-9572006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-9573006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9577406 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71072-9572106 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-9574406 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9572006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-9574906 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71073-9573306 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9575706 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71074-9571906 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-9574006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9578206 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-9577206 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9572306 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-9574106 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9572906 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-9574306 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9572706 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-9574906 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95702 |
CM30,40,YM30,40..FXV |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95703 |
CM30,40,YM30,40..FXV |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71538-9570006 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95704 |
CM30,40,YM30,40..FXV |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95704 |
CM30,40,YM30,40..FXV |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-9570006 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP DRIVER SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-9570006 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-9570006 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9570206 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9570006 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9571006 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-9570606 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10424 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
(8509- )FXV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95706 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95705 |
CM3#,4#,KM30,31,36,YM30,40..3FC,4F,4FC,5F |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9574706 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71071-9572006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-9573006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9577406 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71072-9572106 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-9574406 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9572006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-9574906 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71073-9573306 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9575706 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 71074-9571906 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-9574006 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-9578206 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-9577206 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9572306 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-9574106 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9572906 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-9574306 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9572706 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-9574906 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95702 |
CM30,40,YM30,40..FXV |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95703 |
CM30,40,YM30,40..FXV |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71538-9570006 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-95704 |
CM30,40,YM30,40..FXV |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-95704 |
CM30,40,YM30,40..FXV |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71588-9570006 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP DRIVER SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-9570006 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71801-9570006 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9570206 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9570006 |
CM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP BROWN,BROWN,TRIM4# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9570716 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
2 | ||
| 71910-9570706 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
2 | ||
| 71910-9571706 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9570716 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
2 | ||
| 71910-9570706 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
2 | ||
| 71910-9571706 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-9571006 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-9570606 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72830-9570106 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9571106 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72810-9570806 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72810-9570816 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72810-9571006 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-10052 | ||||
| 90119-08079 | ||||
| 90119-10424 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90201-15015 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
| 94542-01400 | ||||
| 98168-40043 | ||||
(8509- )FXV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71246A - PLATE, REAR SEAT CUSHION SET | ||||
| 71246-95701 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-95J0006 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-95J0016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71838-95J0016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-9570706 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 71910-9570716 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-9570706 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 71910-9570716 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-0702026 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 90467-0914616 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-95709 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 72160-95706 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72170-95706 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 72170-95703 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72312-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
2 | ||
| 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL | ||||
| 72688-95700 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-9570706 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-9570606 |
CM30,YM30..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72840-9570006 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570006 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9571106 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72840-9570006 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570006 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9571106 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72840-9570006 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570006 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9571106 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72840-9570006 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570006 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9571106 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72960 - TABLE ASSY, REAR SEAT TURN | ||||
| 72960-95704 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 72960-95703 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC |
1 | ||
| 73139A - COVER, SEAT BELT ANCHOR | ||||
| 73139-9570106 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 73139-9570006 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-9573006 |
CM30,40,YM30,40..FXV (4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79021-9570606 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79021-9571406 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79024-9570006 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79023-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79024-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79023-9571406 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79023-9572806 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79024-9570106 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79024-9570006 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79023-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79024-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79023-9571406 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79023-9572806 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79024-9570106 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-9570606 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79220-9571406 |
CM30,40,YM30,40..FXV FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-95702 |
CM30,40,YM30,40..FXV |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79240-9571406 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79250-9570006 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79250-9570106 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79240-9571406 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79250-9570006 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79250-9570106 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-95709 |
CM30,40,YM30,40..FXV |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-9570106 |
CM30,40,YM30,40..FXV OUTER,BROWN,BROWN,TRIM4# |
2 | ||
| 79273-9570006 |
CM30,40,YM30,40..FXV INNER,BROWN,BROWN,TRIM4# |
2 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-9570106 |
CM30,40,YM30,40..FXV OUTER,BROWN,BROWN,TRIM4# |
2 | ||
| 79273-9570006 |
CM30,40,YM30,40..FXV INNER,BROWN,BROWN,TRIM4# |
2 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-9570106 |
CM30,40,YM30,40..FXV OUTER,BROWN,BROWN,TRIM4# |
2 | ||
| 79273-9570006 |
CM30,40,YM30,40..FXV INNER,BROWN,BROWN,TRIM4# |
2 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-9570106 |
CM30,40,YM30,40..FXV OUTER,BROWN,BROWN,TRIM4# |
2 | ||
| 79273-9570006 |
CM30,40,YM30,40..FXV INNER,BROWN,BROWN,TRIM4# |
2 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79028-95705 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2) |
1 | ||
| 79027-95704 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79027-95711 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2) |
1 | ||
| 79028-95700 |
CM30,40,YM30,40..FXV LH |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79028-95705 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2) |
1 | ||
| 79027-95704 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79027-95711 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2) |
1 | ||
| 79028-95700 |
CM30,40,YM30,40..FXV LH |
1 | ||
| Common parts | ||||
| 90105-10161 | ||||
| 90109-10089 | ||||
| 90119-08079 | ||||
| 90119-10347 | ||||
| 90154-80045 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90201-15015 | ||||
| 90386-12018 | ||||
| 90464-00156 | ||||
| 90507-18012 | ||||
| 90523-08001 | ||||
| 93249-55010 | ||||
| 94542-01400 | ||||
(8509- )FXV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71257 - PLATE, REAR SEAT BACK ANCHOR | ||||
| 71398-9570005 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BEIGE,BEIGE |
2 | ||
| 71398-9570003 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 GRAY,GRAY |
2 | ||
| 71398-9570103 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 GRAY,GRAY |
2 | ||
| 71398-9570105 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BEIGE,BEIGE |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95701 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95701 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95701 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95701 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
4 | ||
| 71691B - COVER, REAR SEAT LOCK, OUTER RH | ||||
| 71692-9570316 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71691-9570216 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71691C - COVER, REAR SEAT LOCK, INNER RH | ||||
| 71691-9570316 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71692-9570216 |
CM30,KM30,YM30..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71692B - COVER, REAR SEAT LOCK, OUTER LH | ||||
| 71692-9570216 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71691-9570316 |
CM30,KM30,YM30..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71692C - COVER, REAR SEAT LOCK, INNER LH | ||||
| 71692-9570316 |
CM30,KM30,YM30..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71691-9570216 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71707 - HINGE SUB-ASSY, REAR SEAT SIDE | ||||
| 71707-95700 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
2 | ||
| 71707 - HINGE SUB-ASSY, REAR SEAT SIDE | ||||
| 71707-95700 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
2 | ||
| 71777 - COVER, REAR SEAT SIDE HINGE FEMALE | ||||
| 71777-9570014 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 BLUE,BLUE,TRIM4#,8# |
2 | ||
| 71777-9570016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 71777 - COVER, REAR SEAT SIDE HINGE FEMALE | ||||
| 71777-9570014 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 BLUE,BLUE,TRIM4#,8# |
2 | ||
| 71777-9570016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-9570016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-9570016 |
CM30,KM30,YM30..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ無,W/O LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71990-3002016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC ﾛｯｸ付,W/LOCK,BROWN,BROWN,TRIM4# |
4 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-9570006 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
4 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-9570006 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-9570706 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 71910-9570716 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-9570706 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 71910-9570716 |
CM30,40,YM30,40..FXV BROWN,BROWN,TRIM4# |
4 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-9570106 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 72065-9570506 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BLUE,TRIM4# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-9570106 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 72065-9570506 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BLUE,TRIM4# |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95702 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 NO.3 SEAT |
2 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-95702 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 NO.3 SEAT |
2 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95704 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
1 | ||
| 72660-95702 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570106 |
CM30,KM30,YM30..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570106 |
CM30,KM30,YM30..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72650-95703 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
1 | ||
| 72660-95703 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-9570306 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-9570306 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72840-9570006 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570006 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9571106 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72840-9570006 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570006 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9571106 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570106 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV RH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV LH(NO.2 SEAT),BROWN,BROWN,TRIM4# |
2 | ||
| 72840-9570706 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 72840-9570016 |
CM30,40,YM30,40..FXV RH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 72830-9570116 |
CM30,40,YM30,40..FXV LH(NO.3 SEAT),BROWN,BROWN,TRIM4# |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-9572006 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79031-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79032-9571806 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79032-9570606 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79032-9570306 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79031-9570306 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-9572006 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79031-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79032-9571806 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79032-9570606 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79032-9570306 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79031-9570306 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79034-9570806 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9570806 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79034-9570406 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9570406 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79034-9573606 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9573806 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79034-9572706 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9572706 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79034-9570806 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9570806 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79034-9570406 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9570406 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79034-9573606 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9573806 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2),BROWN,BROWN,TRIM4# |
1 | ||
| 79034-9572706 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-9572706 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||

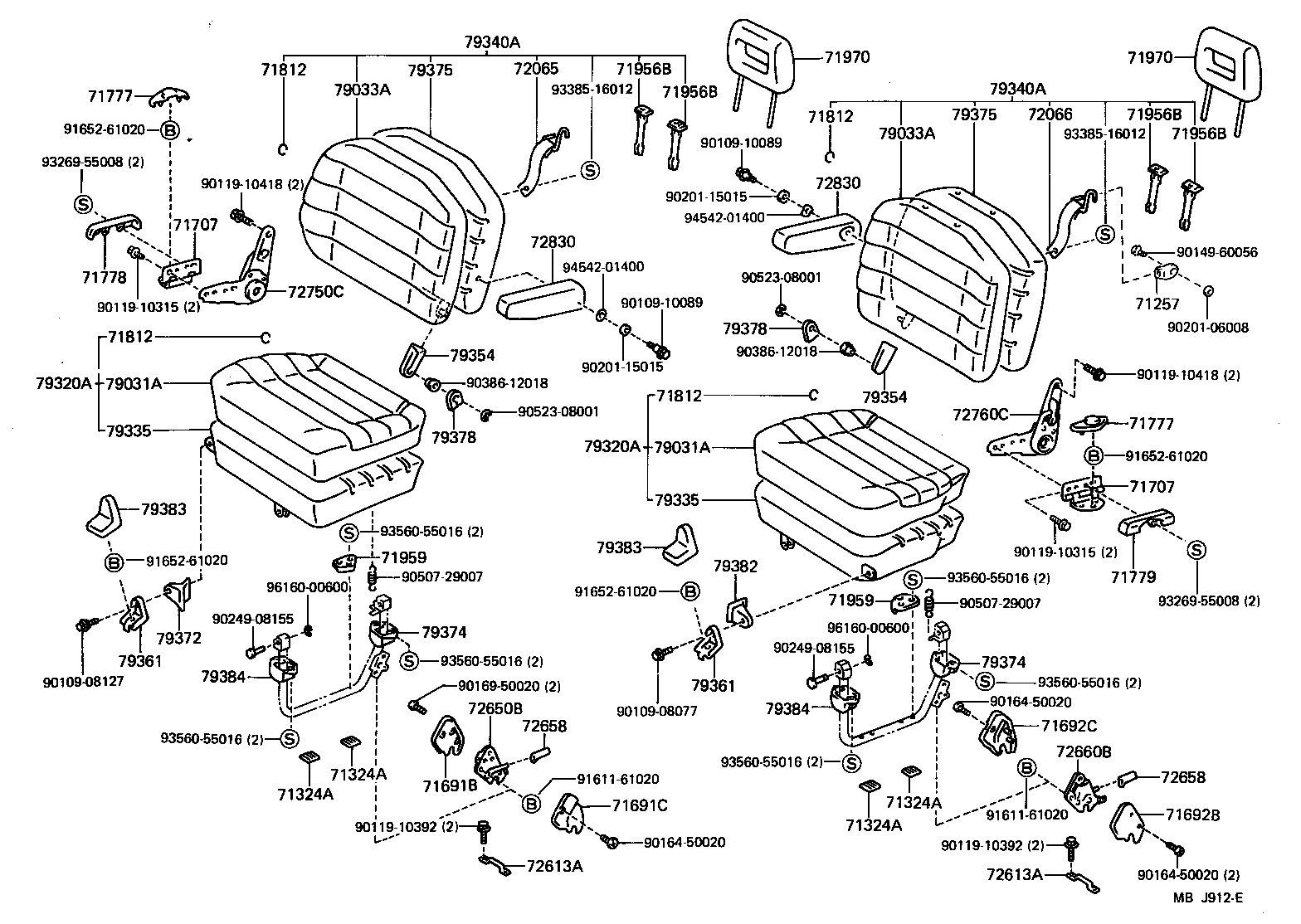

| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79330-9570606 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79320-9571106 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79330-9571106 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-9570606 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79330-9570606 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79320-9571106 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79330-9571106 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-95701 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79036-95701 |
CM30,40,YM30,40..FXV LH |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-95701 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79036-95701 |
CM30,40,YM30,40..FXV LH |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-9570806 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-9570806 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340-9572206 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340-9571306 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-9571306 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-9572206 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-9570806 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-9570806 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340-9572206 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340-9571306 |
CM30,40,YM30,40..FXV RH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-9571306 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-9572206 |
CM30,40,YM30,40..FXV LH,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79354 - COVER, NO.3 SEAT BACK HINGE | ||||
| 79354-9570016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 79354 - COVER, NO.3 SEAT BACK HINGE | ||||
| 79354-9570016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 79361 - BRACKET, NO.3 SEAT SUPPORT | ||||
| 79361-95701 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
2 | ||
| 79361 - BRACKET, NO.3 SEAT SUPPORT | ||||
| 79361-95701 |
CM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7 |
2 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-9570206 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-9570026 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-9570026 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79037-95703 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79038-95703 |
CM30,40,YM30,40..FXV LH |
1 | ||
| 79037-95707 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79038-95711 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2) |
1 | ||
| 79037-95711 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2) |
1 | ||
| 79038-95707 |
CM30,40,YM30,40..FXV LH |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79037-95703 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79038-95703 |
CM30,40,YM30,40..FXV LH |
1 | ||
| 79037-95707 |
CM30,40,YM30,40..FXV RH |
1 | ||
| 79038-95711 |
CM30,40,YM30,40..FXV LH(4G3)/(4D2) |
1 | ||
| 79037-95711 |
CM30,40,YM30,40..FXV RH(4G3)/(4D2) |
1 | ||
| 79038-95707 |
CM30,40,YM30,40..FXV LH |
1 | ||
| 79383 - COVER, NO.3 SEAT BRACKET SUPPORT | ||||
| 79383-9570016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 79383 - COVER, NO.3 SEAT BRACKET SUPPORT | ||||
| 79383-9570016 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-9570126 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-9570126 |
CM30,40,KM30,YM30,40..FXV,GXL,SUC BROWN,BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90109-08077 | ||||
| 90109-08127 | ||||
| 90109-10089 | ||||
| 90119-10315 | ||||
| 90119-10392 | ||||
| 90119-10418 | ||||
| 90149-60056 | ||||
| 90164-50020 | ||||
| 90169-50020 | ||||
| 90201-06008 | ||||
| 90201-15015 | ||||
| 90249-08155 | ||||
| 90386-12018 | ||||
| 90507-29007 | ||||
| 90523-08001 | ||||
| 91611-61020 | ||||
| 91652-61020 | ||||
| 93269-55008 | ||||
| 93385-16012 | ||||
| 93560-55016 | ||||
| 94542-01400 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
