CM30G-MQSX (1985)
Toyota Liteace Van,Wagon
(8509- )FXV,GXL,SCA,SUC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 長さ=107.5,L=107.5,ｲﾗｽﾄ ｻﾝｼﾖｳ |
2 | ||
| 90945-02038 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 長さ=105.5,L=105.5,ｲﾗｽﾄ ｻﾝｼﾖｳ |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 長さ=107.5,L=107.5,ｲﾗｽﾄ ｻﾝｼﾖｳ |
2 | ||
| 90945-02038 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 長さ=105.5,L=105.5,ｲﾗｽﾄ ｻﾝｼﾖｳ |
2 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2715006 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC UPR,W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2709006 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC LWR,W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-2718004 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC UPR,W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2715006 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC UPR,W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45287-2709006 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC LWR,W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-2718004 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC UPR,W/TILT STEERING,BROWN,BROWN,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-22010 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-27020 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22020 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22050 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22040 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 外径=18.000−18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22060 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 厚さ=0.2,T=0.2 |
1 | ||
| 45815-22070 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 厚さ=0.5,T=0.5 |
1 | ||
| 45815-22100 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22090 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 厚さ=1.4,T=1.4 |
1 | ||
| 45815-22080 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC 厚さ=0.8,T=0.8 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22010 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-27020 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08022 | ||||
| 90119-06348 | ||||
| 90119-08185 | ||||
| 90119-10415 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 91611-60616 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

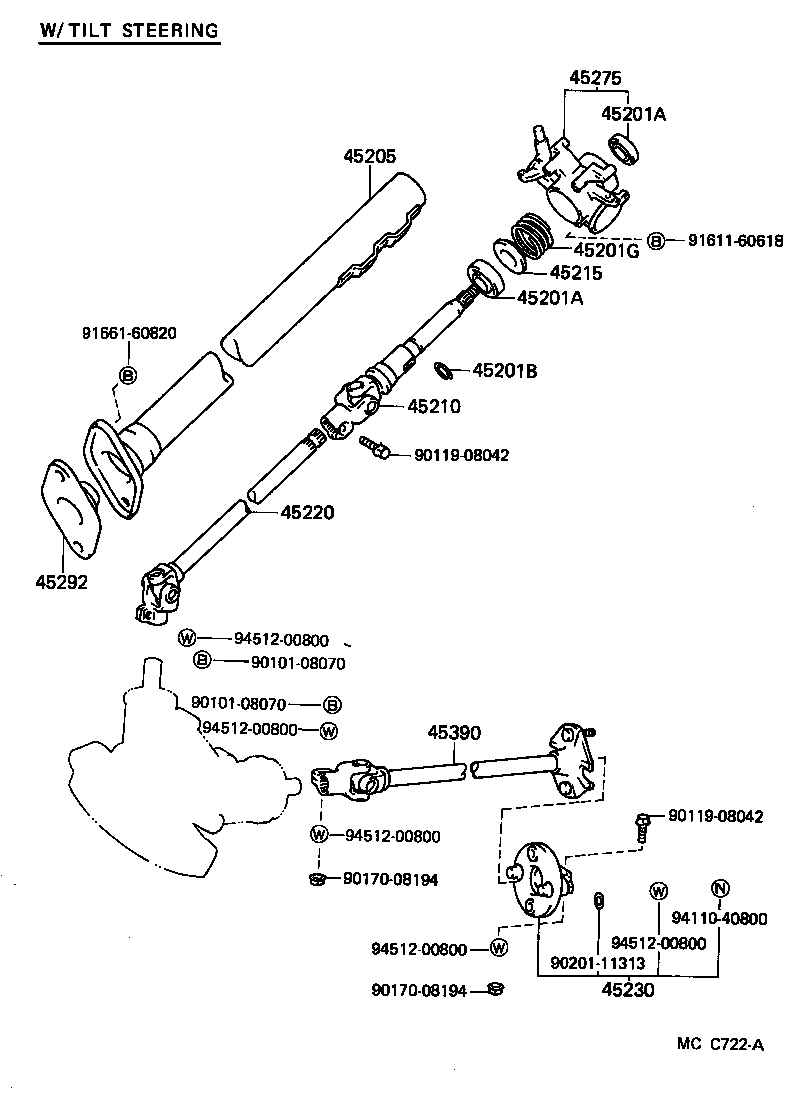

(8509- )FXV,GXL,SCA,SUC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
CM3#,4#,KM3#,YM30,40 LWR |
1 | ||
| 90363-18001 |
CM3#,4#,KM3#,YM30,40 UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
CM3#,4#,KM3#,YM30,40 LWR |
1 | ||
| 90363-18001 |
CM3#,4#,KM3#,YM30,40 UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CM3#,4#,KM3#,YM30,40 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-27100 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/TILT STEERING |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-27070 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27030 |
CM3#,KM30,31,36,YM30 W/POWER STEERING |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-27110 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/TILT STEERING |
1 | ||
| 45280-27111 |
CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC W/TILT STEERING |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-27020 |
CM3#,KM30,31,36,YM30 W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08042 | ||||
| 90170-08194 | ||||
| 90201-11313 | ||||
| 91611-60618 | ||||
| 91661-60820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

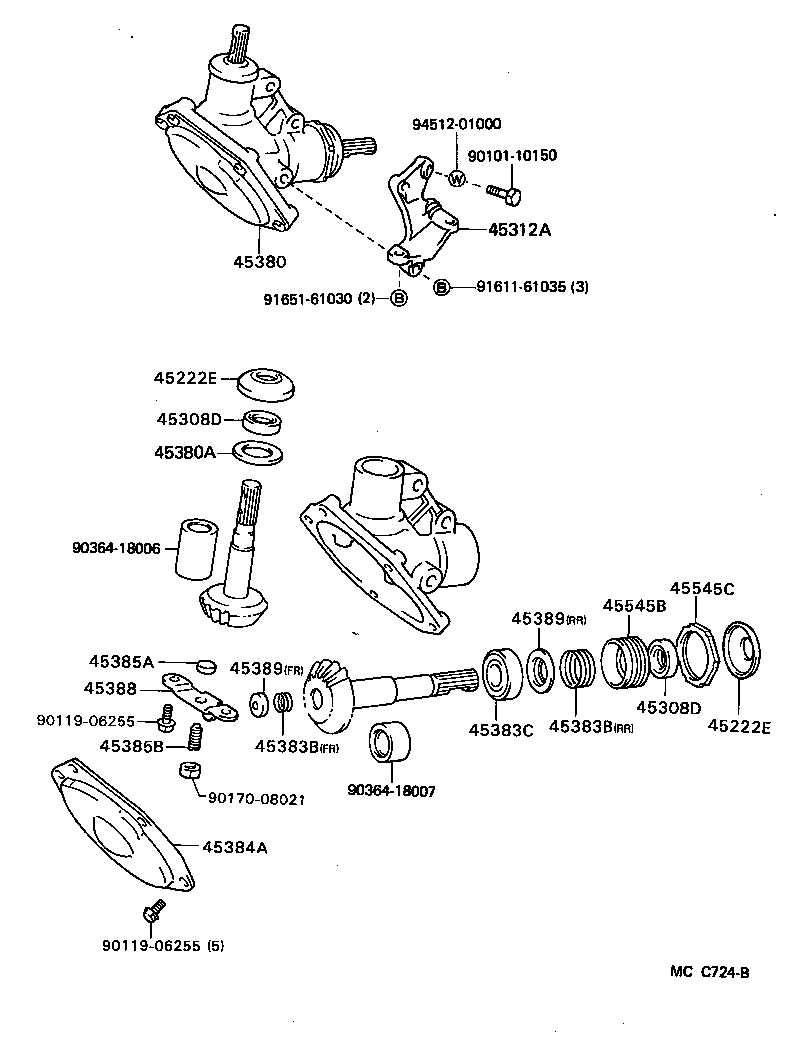

(8509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
CM3#,4#,KM3#,YM30,40 |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-27070 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-27010 |
CM30,KM30,YM30..FXV,GXL,SCA,SUC |
1 | ||
| 45380-27010 |
CM3#,KM3#,YM30 |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18002 |
CM3#,4#,KM3#,YM30,40 厚さ=1.90,ﾏｰｸ 2,T=1.90 |
1 | ||
| 90209-18005 |
CM3#,4#,KM3#,YM30,40 厚さ=2.05,ﾏｰｸ 5,T=2.05 |
1 | ||
| 90209-18007 |
CM3#,4#,KM3#,YM30,40 厚さ=2.15,ﾏｰｸ 7,T=2.15 |
1 | ||
| 90209-18006 |
CM3#,4#,KM3#,YM30,40 厚さ=2.10,ﾏｰｸ 6,T=2.10 |
1 | ||
| 90209-18004 |
CM3#,4#,KM3#,YM30,40 厚さ=2.00,ﾏｰｸ 4,T=2.00 |
1 | ||
| 90209-18008 |
CM3#,4#,KM3#,YM30,40 厚さ=2.20,ﾏｰｸ 8,T=2.20 |
1 | ||
| 90209-18003 |
CM3#,4#,KM3#,YM30,40 厚さ=1.95,ﾏｰｸ 3,T=1.95 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 90501-20080 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 90501-20080 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 45389-27020 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 45389-27010 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 45389-27020 |
CM3#,4#,KM3#,YM30,40 RR |
1 | ||
| 45389-27010 |
CM3#,4#,KM3#,YM30,40 FR |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-27020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45545-10010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 90101-10150 | ||||
| 90119-06255 | ||||
| 90170-08021 | ||||
| 90364-18006 | ||||
| 90364-18007 | ||||
| 91611-61035 | ||||
| 91651-61030 | ||||
| 94512-01000 | ||||

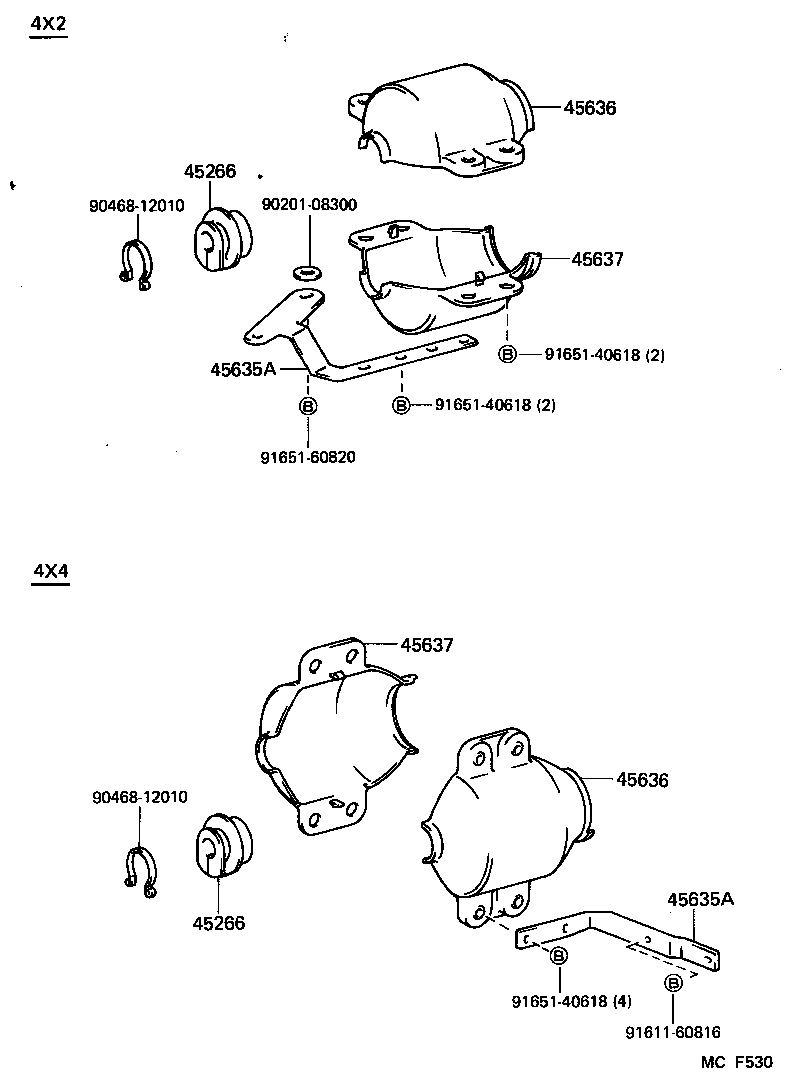

(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-27020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-27020 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45635A - SUPPORT, INTER LINK JOINT PROTECTOR | ||||
| 45635-27010 |
CM3#,KM3#,YM30 |
1 | ||
| 45635A - SUPPORT, INTER LINK JOINT PROTECTOR | ||||
| 45635-27010 |
CM3#,KM3#,YM30 |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-27010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| Common parts | ||||
| 90201-08300 | ||||
| 90468-12010 | ||||
| 91611-60816 | ||||
| 91651-40618 | ||||
| 91651-60820 | ||||
