Toyota Liteace van,wagon CM30 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

CM30G-MQSX (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992

Engine 2CT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

FR HEATER

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95705	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95707	CM3#,4#,KM3# ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87107-95706	CM3#,4#	08/1988 - 01/1992	1
87110 - HEATER ASSY
87110-95740	CM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
87110-95741	CM3#,4#,KM3# ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87138 - RESISTOR, HEATER BLOWER
87138-95707	CM3#,4#,KM3#,YM3#,40	08/1988 - 01/1992	1
Common parts
90179-08123
91651-40816
91661-40616

Click highlighted areas on diagram

RR HEATER

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003	CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW)	08/1988 - 01/1992	1
87104-95706	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-95701	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87105-87002	CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW)	08/1988 - 01/1992	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95709	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
87107-95710	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87120 - HEATER ASSY, REAR
87110-95752	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
87110-95755	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87123 - KNOB, HEATER
55905-10110	CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D	08/1988 - 01/1992	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95710	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
87138-95711	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87240H - VALVE ASSY, WATER UNIT
87240-95709	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
Common parts
90159-60038
90189-06018

Click highlighted areas on diagram

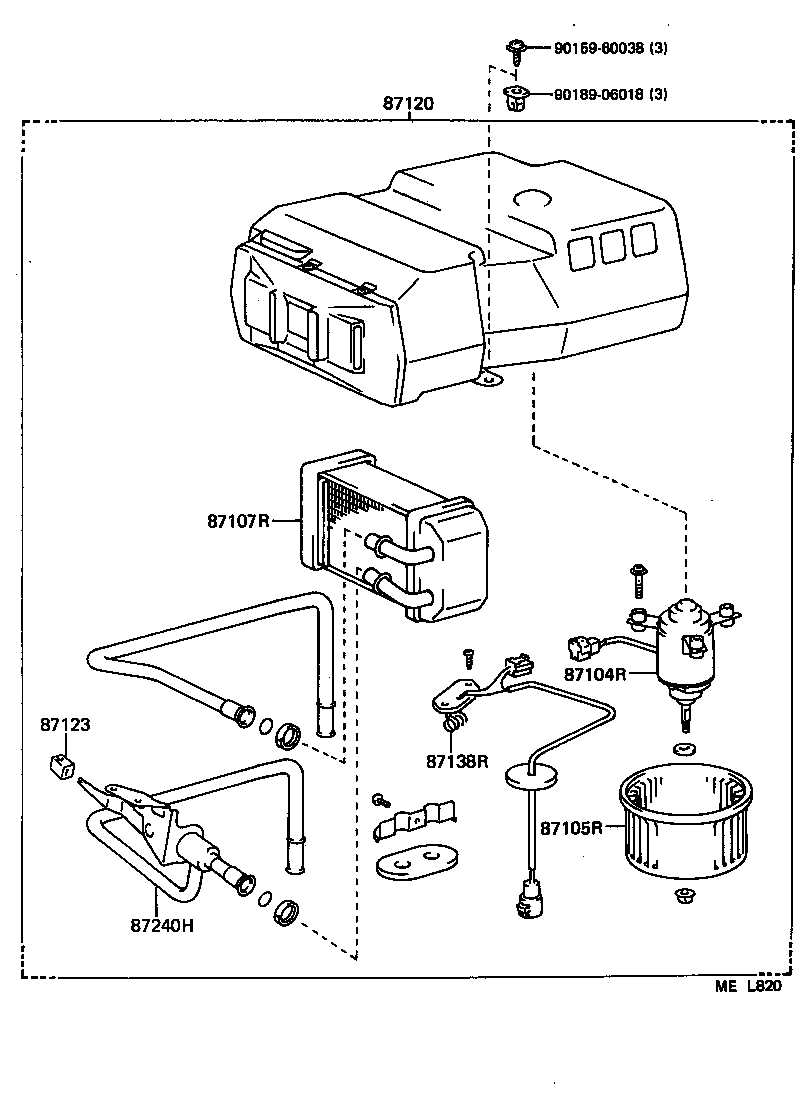

RR HEATER

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003	CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW)	08/1988 - 01/1992	1
87104-95706	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-95701	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87105-87002	CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,SCA,SSW,SUC,SUP,SW)	08/1988 - 01/1992	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95709	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
87107-95710	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87120 - HEATER ASSY, REAR
87110-95752	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
87110-95755	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87123 - KNOB, HEATER
55905-10110	CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D	08/1988 - 01/1992	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95710	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
87138-95711	CM30,40,KM30,YM30,40..FXV,GXL,SUC ｶﾝﾚｲﾁｼﾖｳ	08/1988 - 01/1992	1
87240H - VALVE ASSY, WATER UNIT
87240-95709	CM30,40,KM30,YM30,40..FXV,GXL,SUC	08/1988 - 01/1992	1
Common parts
90159-60038
90189-06018
