CM30G-MNS (1988)
Toyota Liteace Van,Wagon
(8808- )

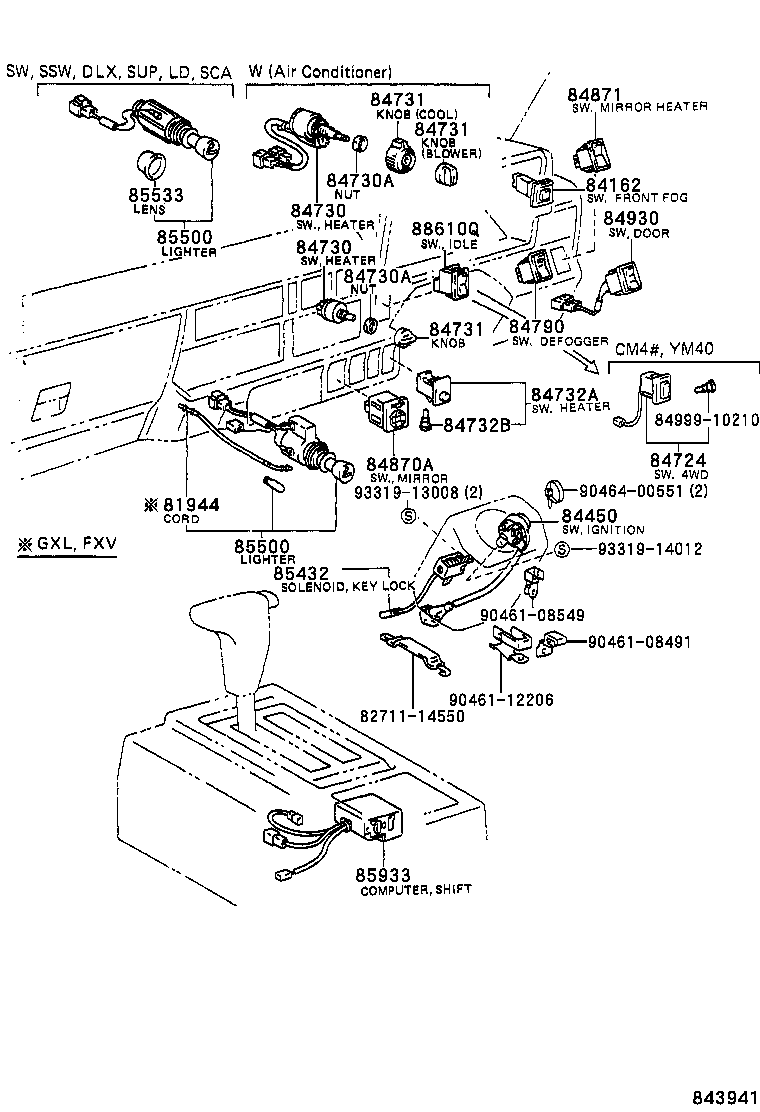

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27100 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-95702 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84732-12020 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84660-95702 |
CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL) ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84660-95702 |
CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL) ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-95702 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84732-12020 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84660-95702 |
CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL) ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84660-95702 |
CM40,KM30..W4D..(LD,SCA,SSW,SW);CM30,YM40..W4D..(LD,SSW,SUC,SW)..(CBR,DSL) ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
KM30..LD,SCA,SW;CM30..(MRF,SRF)..5F..(LD,SUC,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731-12032 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) COOL |
1 | ||
| 84731-20030 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731-12032 |
CM30..W4D..DSL;CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW) COOL |
1 | ||
| 84731-12010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84731-20030 |
CM30..W4D..DSL;CM30..4FC..FXV;KM30..W4D..(HRF,SRF);CM40..W4D..(FXV,LD,SSW,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
KM30..LD,SCA,SW;CM30..(MRF,SRF)..5F..(LD,SUC,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731-12032 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) COOL |
1 | ||
| 84731-20030 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731-12032 |
CM30..W4D..DSL;CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW) COOL |
1 | ||
| 84731-12010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84731-20030 |
CM30..W4D..DSL;CM30..4FC..FXV;KM30..W4D..(HRF,SRF);CM40..W4D..(FXV,LD,SSW,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
KM30..LD,SCA,SW;CM30..(MRF,SRF)..5F..(LD,SUC,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731-12032 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) COOL |
1 | ||
| 84731-20030 |
KM30..W4D..(LD,SCA,SW);CM30..W4D..5F..(LD,SSW,SUC,SW) ﾌﾞﾛﾜ |
1 | ||
| 84731-12032 |
CM30..W4D..DSL;CM30..4FC..FXV;CM40,KM30..W4D..(FXV,LD,SCA,SSW,SW) COOL |
1 | ||
| 84731-12010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84731-20030 |
CM30..W4D..DSL;CM30..4FC..FXV;KM30..W4D..(HRF,SRF);CM40..W4D..(FXV,LD,SSW,SW) ﾌﾞﾛﾜ |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95704 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D INSTRUMENT PANEL |
1 | ||
| 84732-95703 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D RR TRIM,ROTARY SW |
1 | ||
| 84730-95J01 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D RR TRIM,PUSH SW |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 90981-16022 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D 24V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32060 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-95702 |
CM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95712 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUP,SW |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95712 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUP,SW |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-95700 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUP,SW |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 84999-10210 | ||||
| 90461-08491 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||

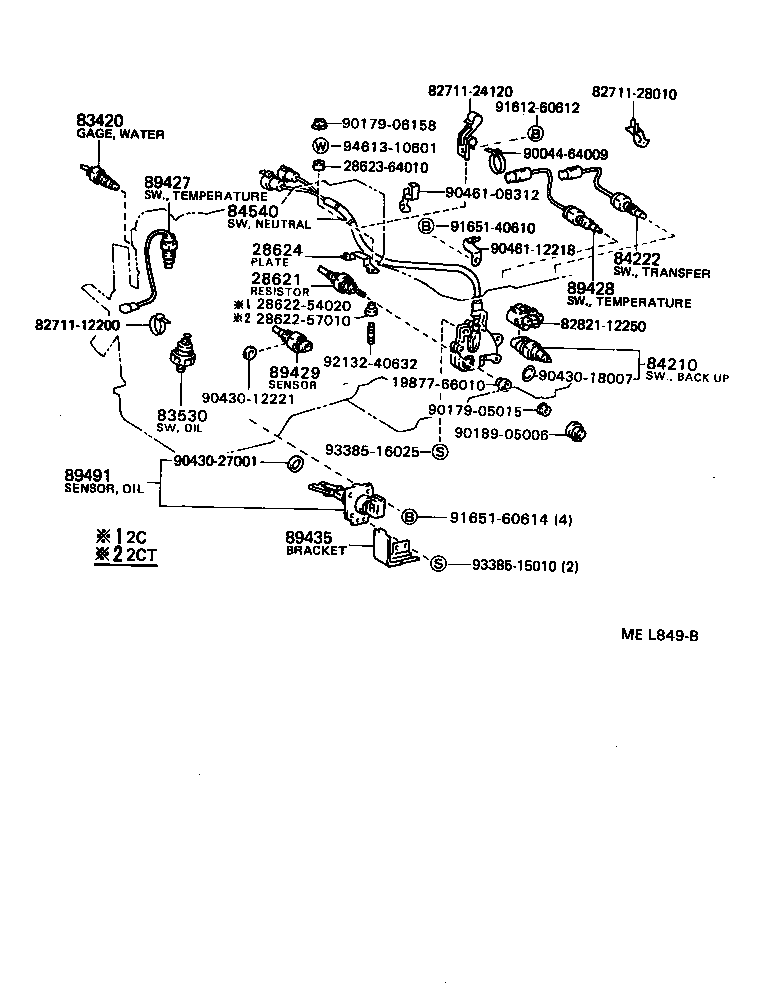

(8808- )CM3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2C#..CM3#,4# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64010 |
2C..CM3#,41 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CM3#,4# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CM3#,4#,KM30,31,36,YM3#,40..5F,5H |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-27050 |
CM3#,4# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
CM3#,4# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-27030 |
CM3#,4# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28622-57010 | ||||
| 28623-64010 | ||||
| 82711-12200 | ||||
| 82711-24120 | ||||
| 82711-28010 | ||||
| 82821-12250 | ||||
| 90044-64009 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 91612-60612 | ||||
| 91651-40610 | ||||
| 91651-60614 | ||||
| 92132-40632 | ||||
| 93385-15010 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||

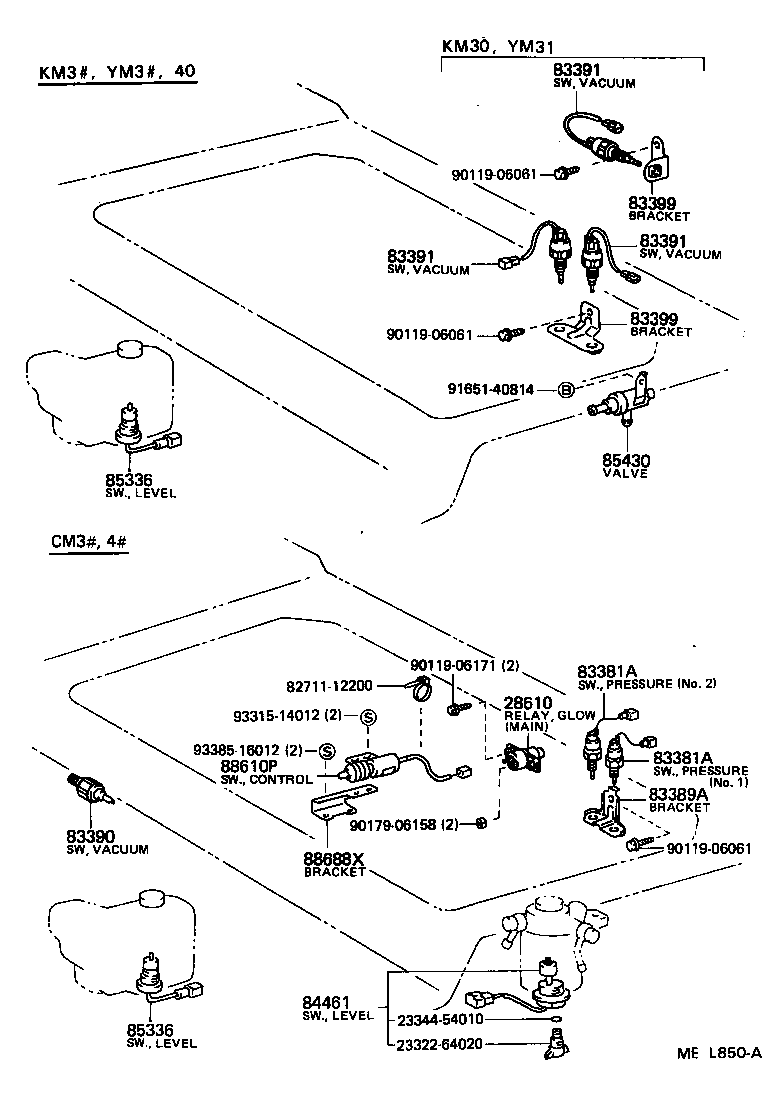

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
2C#..CM3#,4# SUB |
1 | ||
| 28610-64100 |
2C#..CM3#,4# MAIN |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-27120 |
CM3#,4# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12050 |
CM3#,4# |
1 | ||
| 88610P - SWITCH ASSY, CONTROL | ||||
| 88610-28060 |
CM30..W4D..5F..(LD,SSW,SUC,SW) |
1 | ||
| 88610-28060 |
CM30..W4D..DSL;CM40..W4D..(LD,SSW,SW) |
1 | ||
| 88688X - BRACKET, SWITCH | ||||
| 88688-28070 |
CM30..W4D..5F..(LD,SSW,SUC,SW) |
1 | ||
| 88688-28070 |
CM30..W4D..DSL;CM40..W4D..(LD,SSW,SW) |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 82711-12200 | ||||
| 90119-06061 | ||||
| 90119-06171 | ||||
| 90179-06158 | ||||
| 91651-40814 | ||||
| 93315-14012 | ||||
| 93385-16012 | ||||

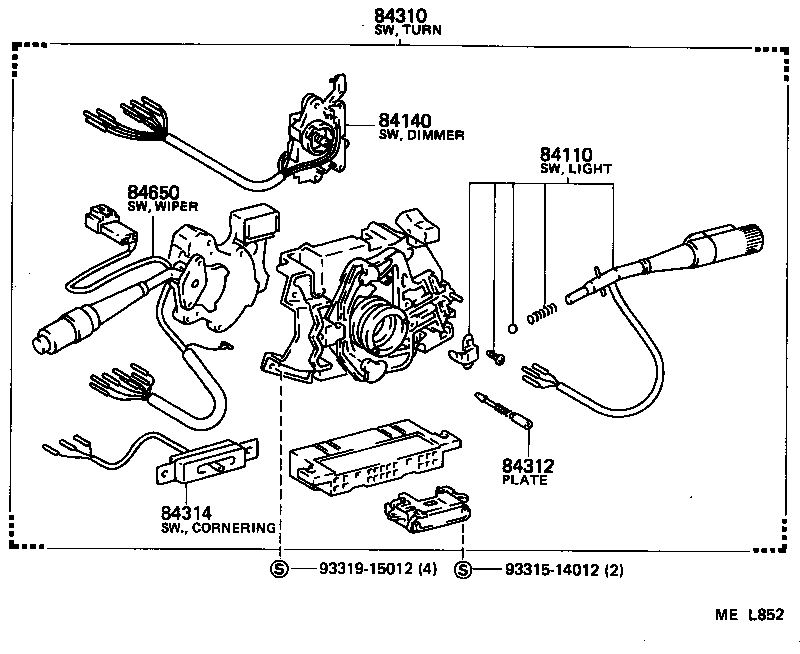

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80022 |
CM30,40,KM30,YM40..LD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-27020 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-27350 |
CM30,40,KM30,YM40..LD |
1 | ||
| 84310-27360 |
CM30,40,KM30,YM40..LD ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC |
1 | ||
| 84314 - SWITCH, CORNERING LAMP | ||||
| 84314-27020 |
CM30,40,KM30,YM40..LD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-27200 |
CM30,40,KM30,YM40..LD |
1 | ||
| 84652-27210 |
CM30,40,KM30,YM40..LD ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||

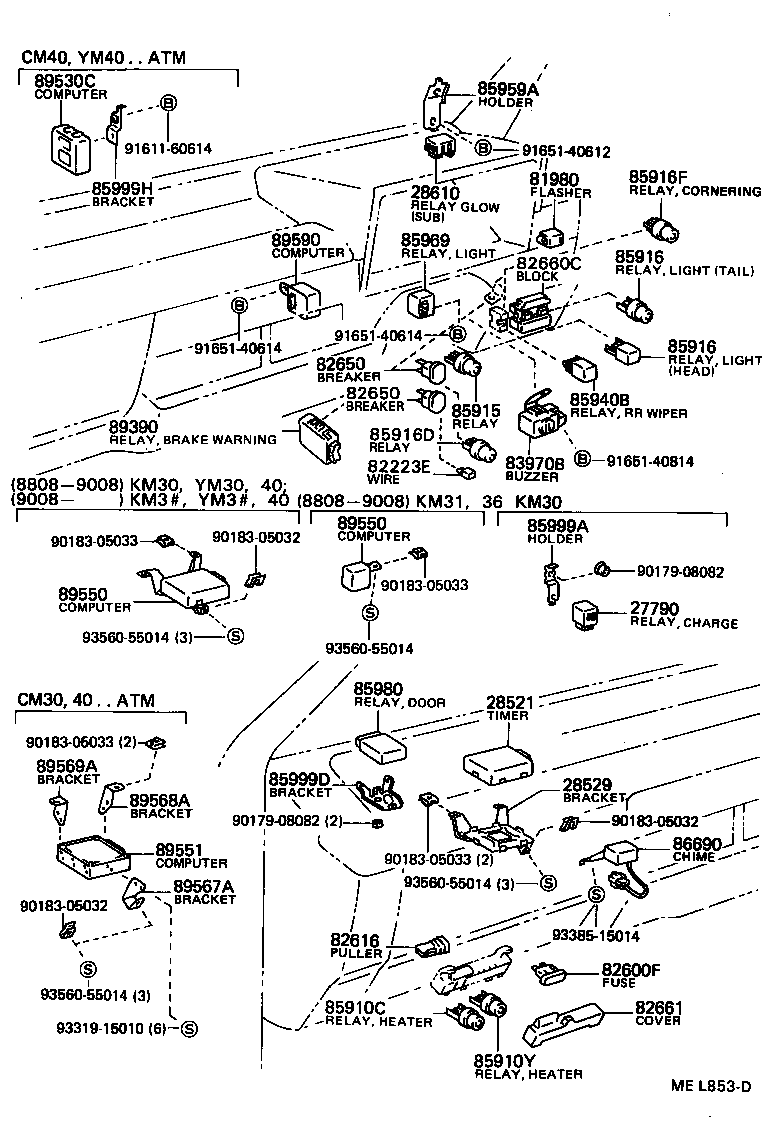

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64291 |
2C..CM31,36;2C#..CM30,4#..5F |
1 | ||
| 28521-64370 |
2C..CM31,36;2C#..CM30,4#..5F |
1 | ||
| 28521-64400 |
2C..CM31,36;2C#..CM30,4#..5F |
1 | ||
| 28521-64360 |
2C..CM31,36;2C#..CM30,4#..5F |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64050 |
2C..CM31,36;2C#..CM30,4#..5F |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
2C#..CM3#,4# SUB |
1 | ||
| 28610-64100 |
2C#..CM3#,4# MAIN |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
CM3#,4#,KM3#,YM30,40 30A,緑 |
1 | ||
| 90982-09002 |
CM3#,4#,KM3#,YM30,40 10A |
2 | ||
| 90982-09004 |
CM3#,4#,KM3#,YM30,40 20A,黄 |
1 | ||
| 90982-09003 |
CM3#,4#,KM3#,YM30,40 15A |
2 | ||
| 90982-09003 |
CM30,31,40..5F;YM30,40..5F..FXV;KM30,36,YM3#,40..ATM..(DLX,FXV,GXL,SCA,SUC,SW) 15A |
5 | ||
| 90982-09005 |
YM30..5F..GXL;CM3#,4#,KM3#,YM40..DLX,LD,SCA,SSW,SUC,SUP,SW 7.5A |
5 | ||
| 90982-07011 |
KM36..DLX;CM3#,4#,KM30,YM3#,40 30A,緑 |
1 | ||
| 90982-09005 |
CM3#,4#,KM3#,YM30,40 7.5A |
1 | ||
| 90982-09003 |
KM36..DLX;KM31,36..5F;KM31..HRF..3FC;CM3#,4#,KM30,YM3#,40 15A |
2 | ||
| 90982-09002 |
KM36..DLX;KM31,36..5F;KM31..HRF..3FC;CM3#,4#,KM30,YM3#,40 10A |
2 | ||
| 90982-09002 |
KM36..DLX;CM3#,4#,KM30,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW 10A |
3 | ||
| 90982-09005 |
KM36,YM30..(3FC,5F,5H)..(DLX,GXL);CM3#,4#,KM30,YM31,40..DLX,LD,SCA,SSW,SUC,SUP,SW 7.5A |
5 | ||
| 90982-09005 |
KM36..DLX;KM31,36..5F;KM31..HRF..3FC;CM3#,4#,KM30,YM3#,40 7.5A |
1 | ||
| 90982-09002 |
CM3#,4#,KM3#,YM40..DLX,LD,SCA,SSW,SUC,SUP,SW 10A |
3 | ||
| 90982-09004 |
KM36..DLX;CM3#,4#,KM30,YM3#,40 20A,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 82616-12010 |
KM36..DLX;CM3#,4#,KM30,YM3#,40 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
CM3#,4#,KM3#,YM3#,40 20A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
CM3#,4#,KM3#,YM3#,40 20A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82611-95713 |
CM3#,4#,KM3#,YM30,40 |
1 | ||
| 82611-95713 |
KM36..DLX;CM3#,4#,KM30,YM3#,40 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02004 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CM3#,4#,KM3#,YM3#,40 HEAD |
1 | ||
| 90987-01003 |
CM3#,4#,KM3#,YM3#,40 TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
CM3#,4#,KM3#,YM3#,40 HEAD |
1 | ||
| 90987-01003 |
CM3#,4#,KM3#,YM3#,40 TAIL |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02004 |
CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 90987-04002 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-27010 |
CM3#,4# |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89391-20010 |
CM3#,4# |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-27040 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| Common parts | ||||
| 90179-08082 | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 91611-60614 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 93319-15010 | ||||
| 93385-15014 | ||||
| 93560-55014 | ||||

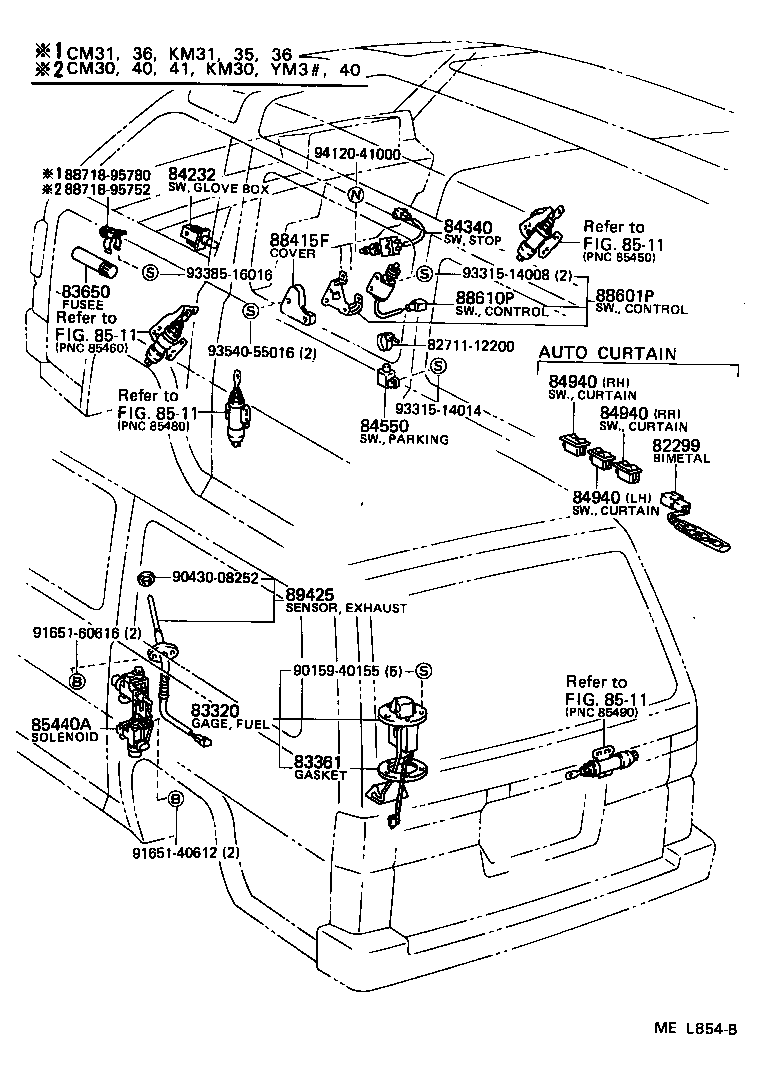

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80043 |
CM3#,KM3#,YM31..DLX,LD,SCA,SSW,SUC,SUP,SW |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 88610P - SWITCH ASSY, CONTROL | ||||
| 88610-28060 |
CM30..W4D..5F..(LD,SSW,SUC,SW) |
1 | ||
| 88610-28060 |
CM30..W4D..DSL;CM40..W4D..(LD,SSW,SW) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88718-95752 | ||||
| 88718-95780 | ||||
| 90159-40155 | ||||
| 90430-08252 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93315-14008 | ||||
| 93315-14014 | ||||
| 93385-16016 | ||||
| 93540-55016 | ||||
| 94120-41000 | ||||

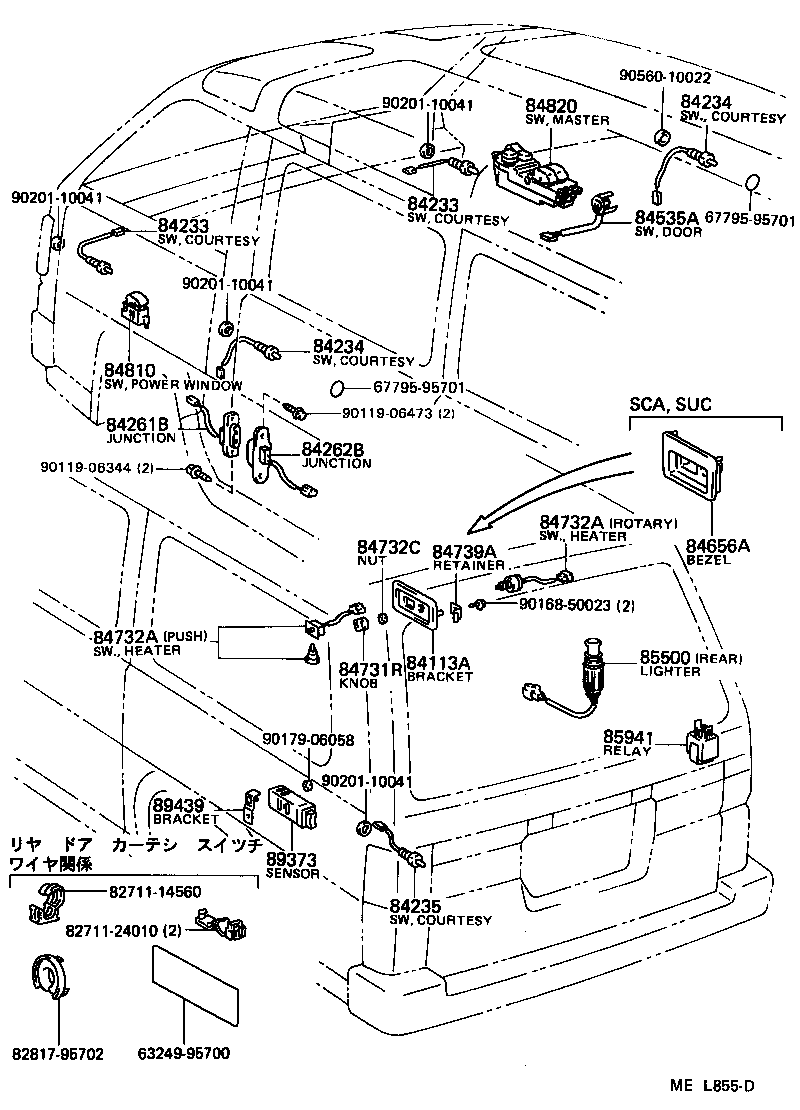

| Linked diagrams | ||||
| 8511 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-9570303 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,LD,SSW,SUP,SW) GRAY,TRIM1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-95703 |
CM3#,4#,KM3#,YM3#,40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95702 |
CM30,36,4#,KM3#,YM3#,40..V4D,W4D |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95702 |
CM30,36,4#,KM3#,YM3#,40..V4D,W4D |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-95703 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-95701 |
CM30,36,4#,KM3#,YM30,40..V4D,W4D |
1 | ||
| 84261-95702 |
CM30,36,4#,KM3#,YM3#,40..V4D,W4D |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-95701 |
CM30,36,4#,KM3#,YM30,40..V4D,W4D |
1 | ||
| 84262-95702 |
CM30,36,4#,KM3#,YM3#,40..V4D,W4D |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-95700 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95704 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D INSTRUMENT PANEL |
1 | ||
| 84732-95703 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D RR TRIM,ROTARY SW |
1 | ||
| 84730-95J01 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D RR TRIM,PUSH SW |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-95704 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D INSTRUMENT PANEL |
1 | ||
| 84732-95703 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D RR TRIM,ROTARY SW |
1 | ||
| 84730-95J01 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D RR TRIM,PUSH SW |
1 | ||
| 84732C - NUT, REAR HEATER BLOWER SWITCH | ||||
| 90170-11206 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..V4D,W4D |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 55944-95701 |
CM36,41,KM35,36..V4D..(05S,06S);CM30,40,KM30,31,YM3#,40..(V4D,W4D)..(DLX,FXV,GXL,LD,SSW,SUP,SW) |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95712 |
CM3#,4#,KM3#,YM31,40..DLX,LD,SCA,SSW,SUP,SW |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 85941-95700 |
CM3#,4#,KM3#,YM3#,40 |
1 | ||
| Common parts | ||||
| 63249-95700 | ||||
| 67795-95701 | ||||
| 82711-14560 | ||||
| 82711-24010 | ||||
| 82817-95702 | ||||
| 90119-06344 | ||||
| 90119-06473 | ||||
| 90168-50023 | ||||
| 90179-06058 | ||||
| 90201-10041 | ||||
| 90560-10022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
