CM30G-MN (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )FXV,GXL,LD,SCA,SUC

Click highlighted areas on diagram

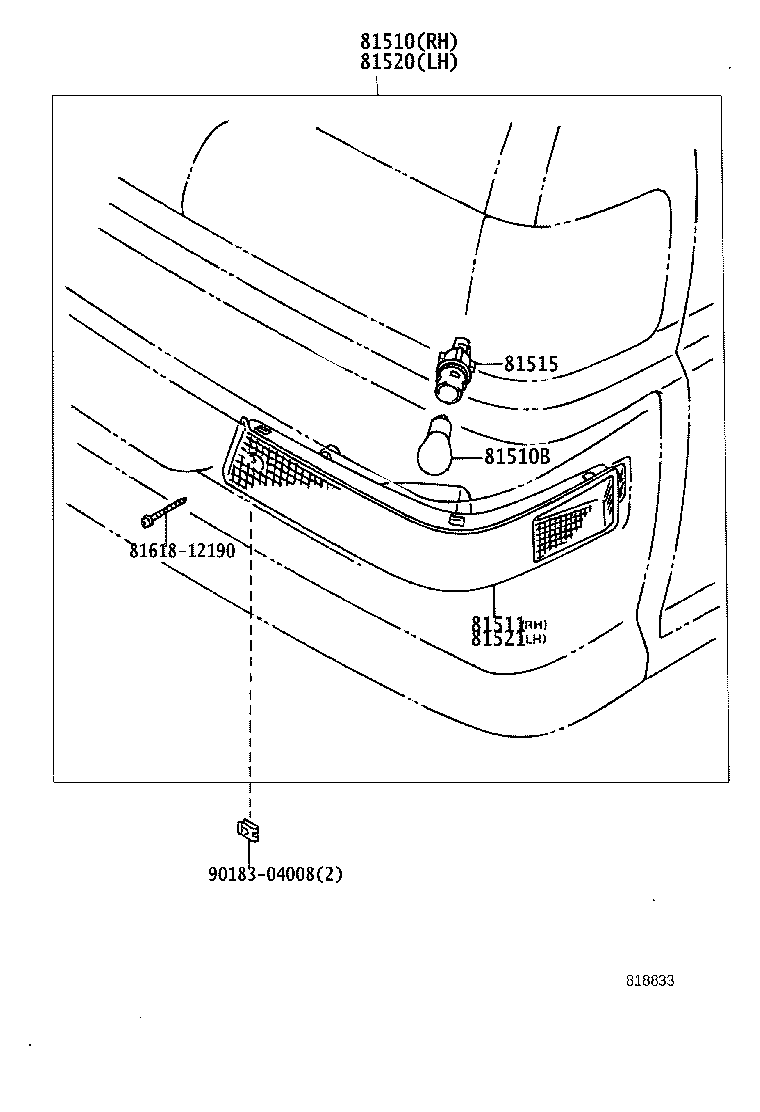

diagram 81510 81510B 81511 81515 81520 81521 8161812190 9018304008
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-95709

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95709

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81615-87705

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-95709

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95709

CM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC

 1
Common parts
81618-12190
90183-04008
